Digital Window Tint Measure Visible Light Transmission Meter Glass Film Shade

Specifications

Brief Description

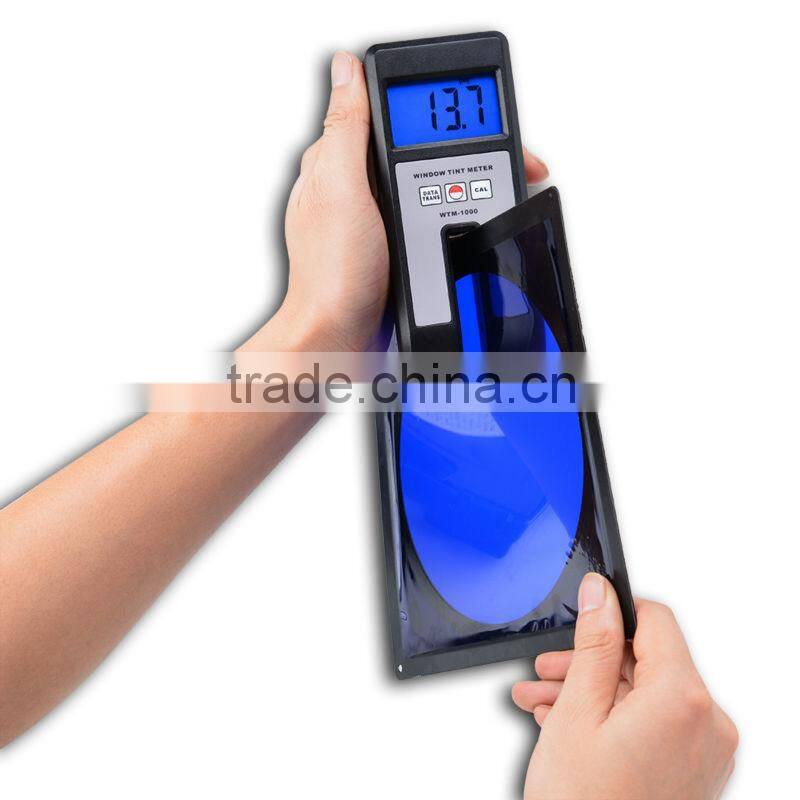

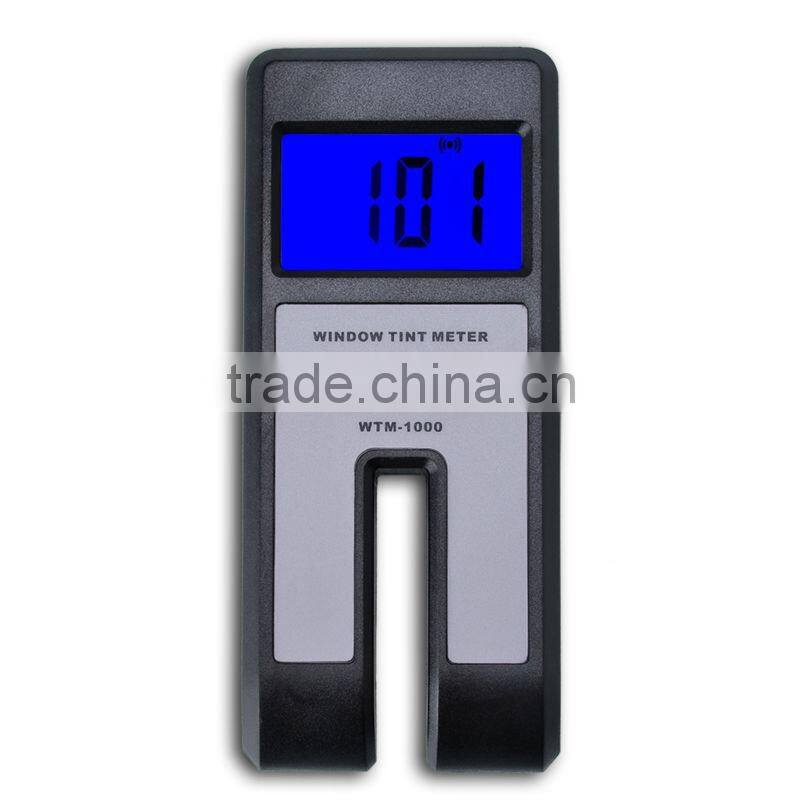

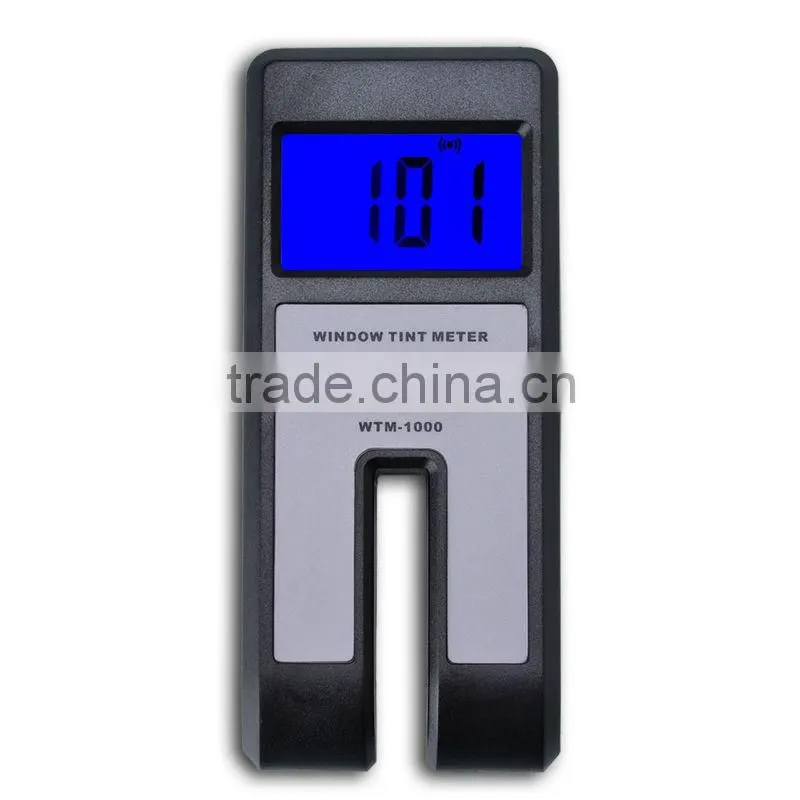

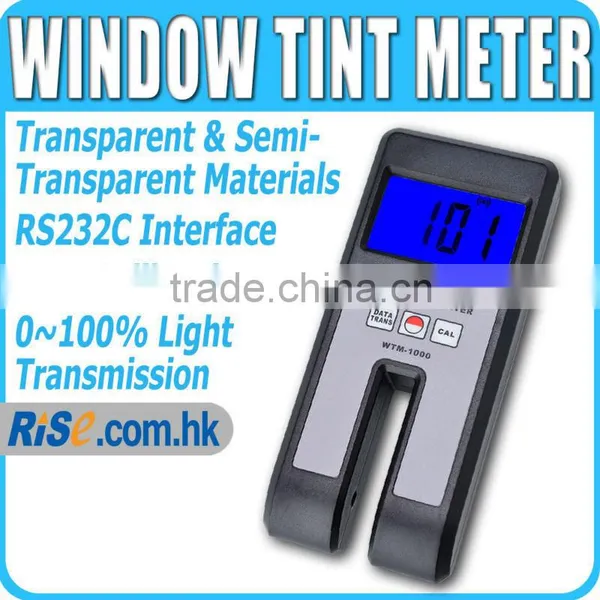

This Window Tint Meter is a professional instrument for measuring light permeability of all transparent & semi-transparent materialssuch as glass, plexiglass, plastic, acrylic, etc. It measures the total amount of Visual Light Transmission (VLT)through a window and any coatings (tint film) on that window after it has been treated with aftermarket window film. It also has an auto calibration function for optimum results of measurement.

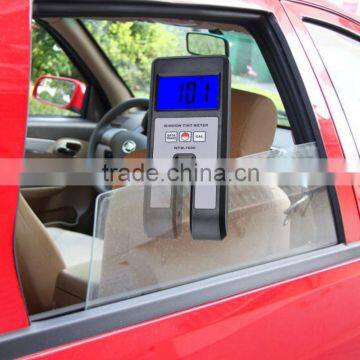

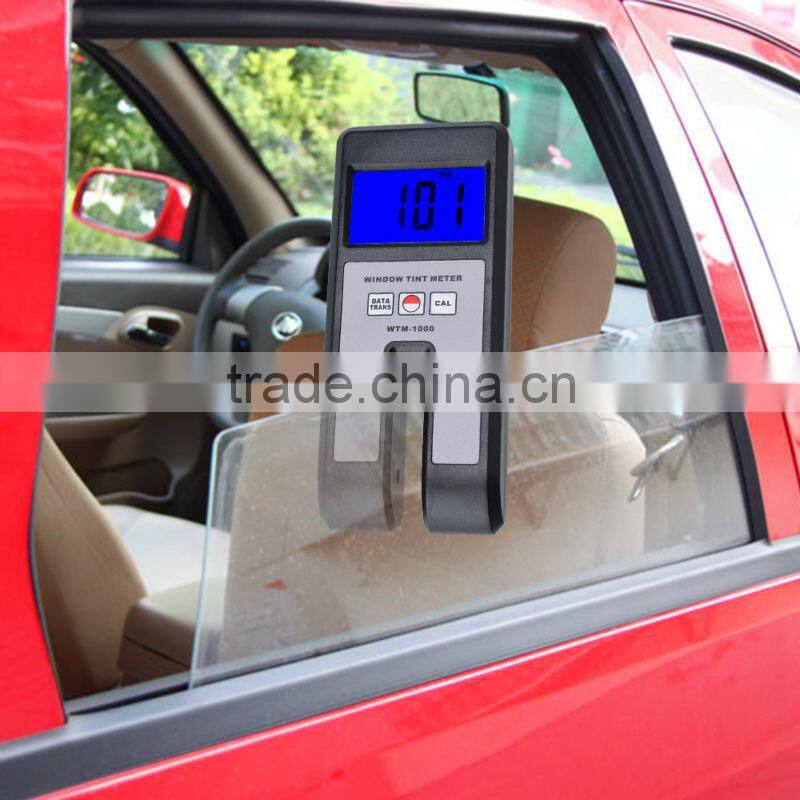

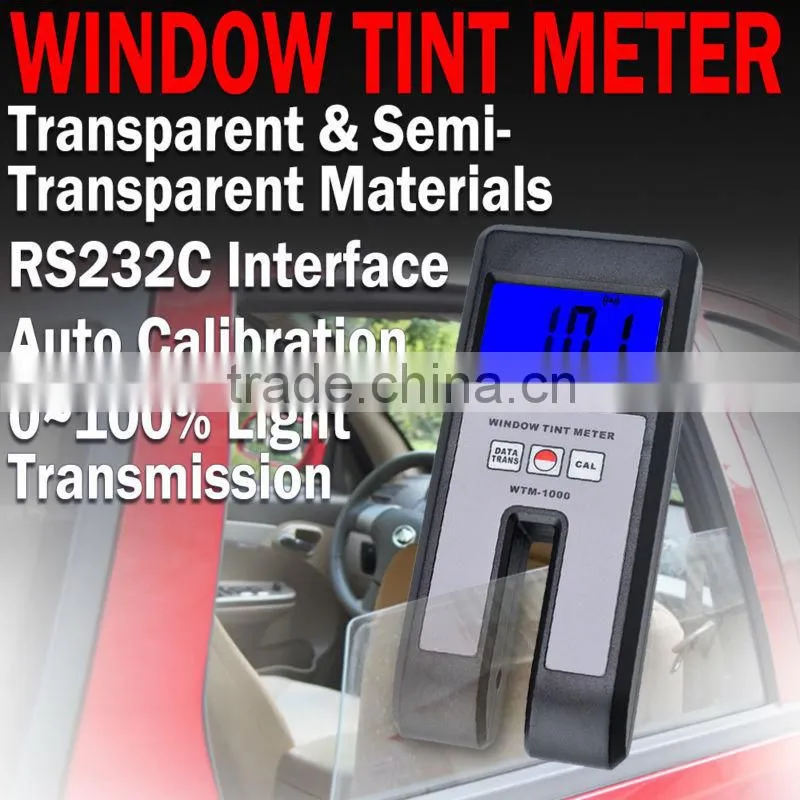

This window tint meter is handy, portable & easy to use. Just slide along a partially rolled down window and get accurate data instantly. And it has its own internal light source, this meter can work day & night. RS232C cable and software CD are optional for connection and work with PC.

This instrument is mainly used for measuring the light permeability of car windows since there are rules & regulations in many countries requiring certain level of light permeability of car windows. It can be widely used for testing and developing different coating materials in material science applications.

Features

• For all transparent & semi-transparent materials
• Excellent to test car windows

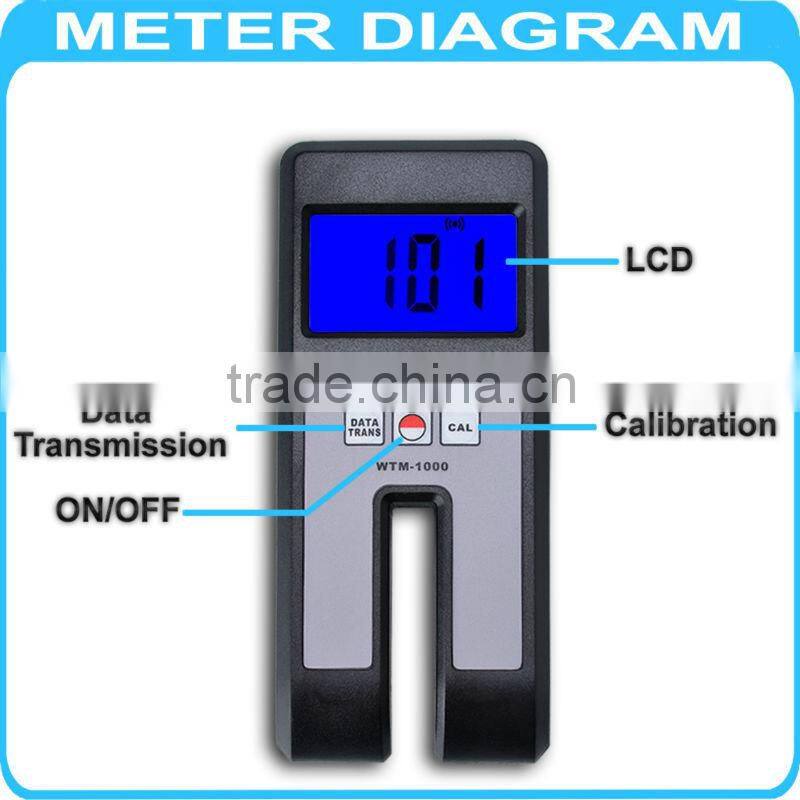

• Large LCD with backlight
• Auto-calibration for optimum results
• Accurate & reliable

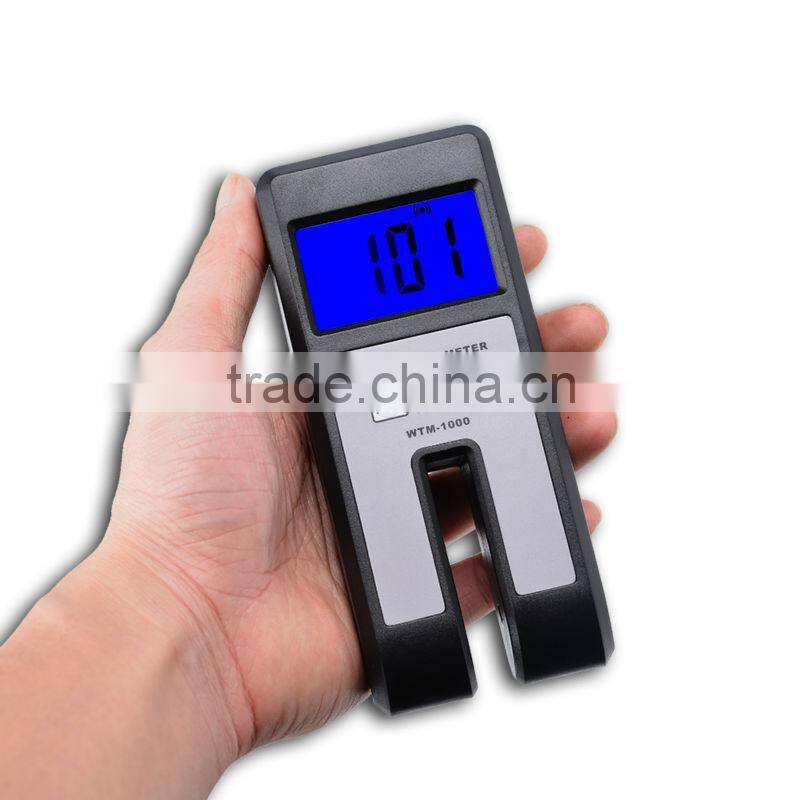

• Handy, portable & easy to use
• Built-in light source
• Easy calibration with just a press of a button

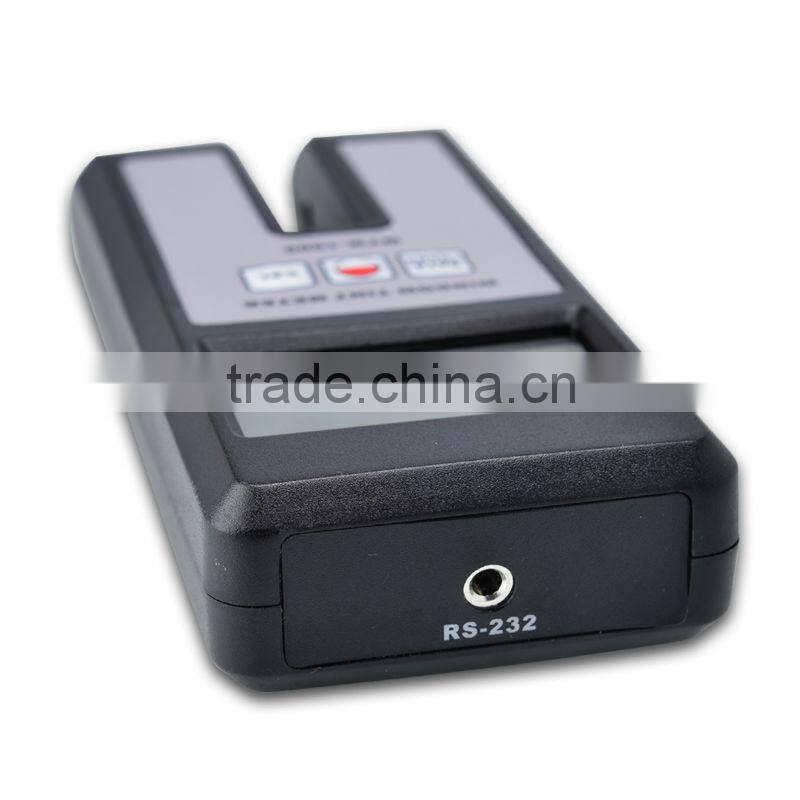

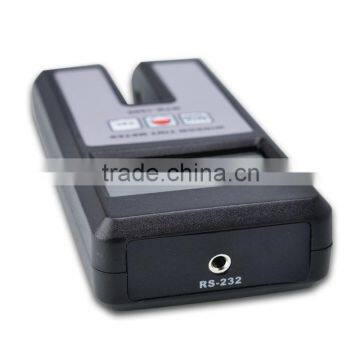

• Built with RS232C interface for computer connection (RS232C cable and software not included)

Specifications

• Measurement Range: 0~100% light transmission
• Accuracy: ±0.1%
• Display: 10mm LCD
• Wavelength: 550nm
• Interface: RS232C (optional, not included)
• Sample Thickness: Less than 10mm/0.4inch
• Sample Size: 50 x 50mm Minimum
• Time of Testing: 4 Seconds Maximum
• Effects from Stray Light: No Effect
• Lamp Life: 10 Years
• Operating Conditions: 0-50°C, <90%RH

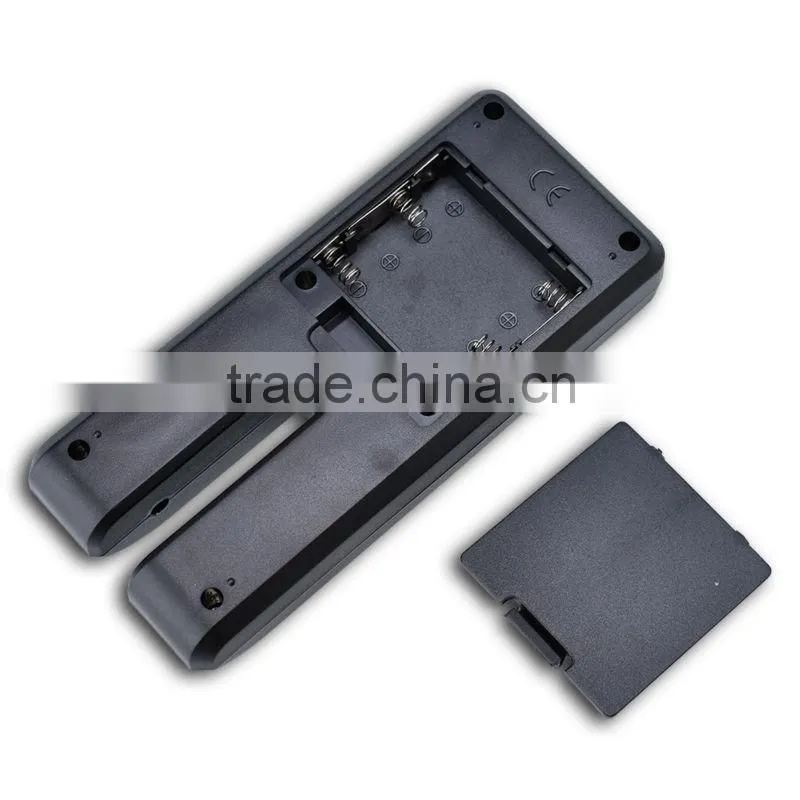

• Power Source: 4 x 1.5V AAA Battery (not included)
• Item Size: 126 x 65 x 27mm (5.0 x 2.6 x 1.1inch)
• Item Weight (main unit): 129g (batteries not included)

One Set Included

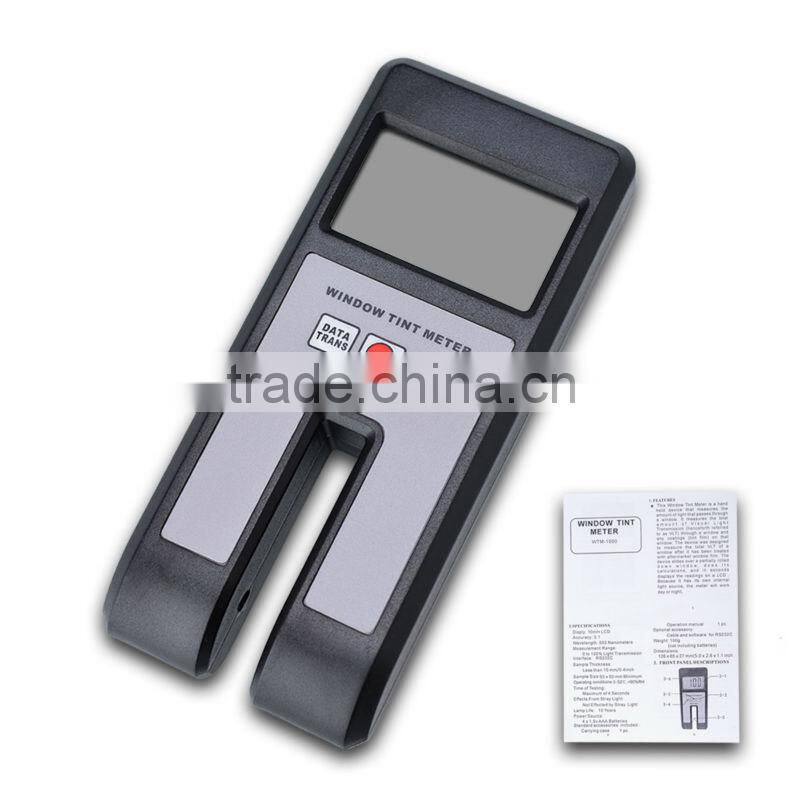

• 1 x Windows Tint Meter
• 1 x Instruction Manual
• Standard Factory Package
• Optional RS232C Cable & Software CD (US $37.9 / GBP £23.5 / AU $42.9 / EUR €29,9 only)
