Specifications

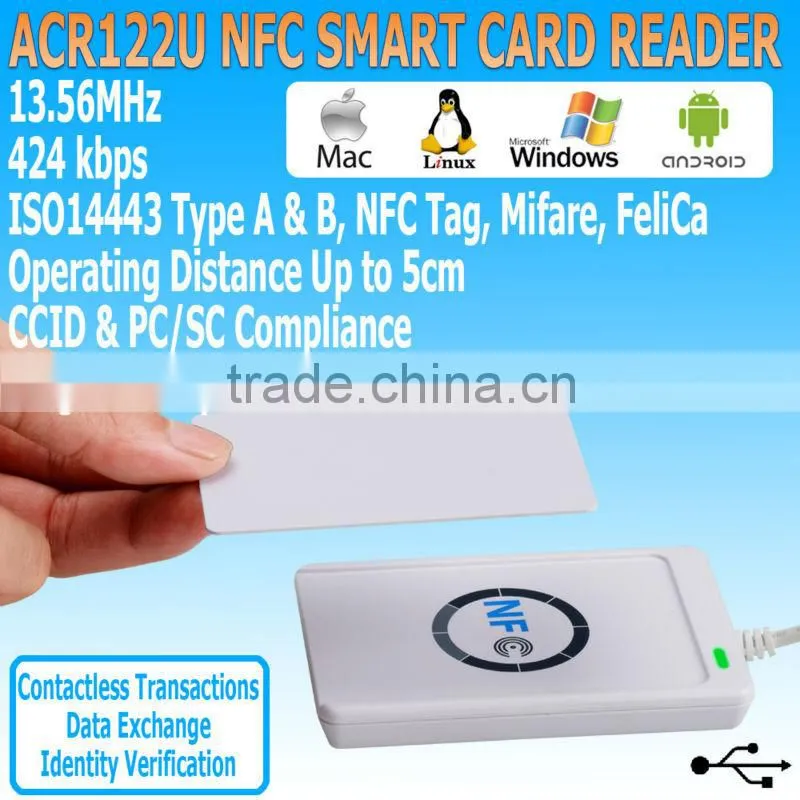

ACR122U NFC Smart Card ReaderBrief Description
The ACR122U NFC Reader is a PC-linked contactless smart card reader/writer developed based on the 13.56 MHz Contactless (RFID) Technology. Compliant with the ISO/IEC18092 standard for Near Field Communication (NFC), it supports not only Mifare® and ISO 14443 A and B cards but also FeliCa and all four types of NFC tags.
ACR122U is compliant with both CCID and PC/SC. Thus, it is a plug-and-play USB device allowing interoperability with different devices and applications. With an access speed of up to 424 kbps and a full USB speed of up to 12 Mbps, ACR122U can read and write extremely quick and efficient. The proximity operating distance of ACR122U is up to 5 cm, depending on the type of contactless tag in use.
In order to increase the security level, ACR122U can be integrated with an ISO 7816-3 SAM slot. Furthermore, the ACR122U NFC Reader is available in module form, permitting easy integration into bigger machines, such as POS terminals, physical access systems and vending machines.
The ACR122U NFC Reader is ideal for secure personal identity verification, data exchange and online micro-payment transactions. Other applications of the ACR122U include access control, e-payment, e-ticketing for events and mass transit, toll road fare collection and network authentication.
Typical Applications
- Micropayment
- NFC mobile tag
- Customer loyalty
- Vending machines
- Time & attendance
- Network access control
- Physical access control
- Contactless public phones
- Automatic fare collection
- Public transportation terminals
Features
- Identity verification, data exchange & contactless transaction
- Supporting different OS
- USB 2.0 Full Speed Interface
- Operating Frequency: 13.56MHz
- CCID Compliance
- Smart Card Reader:
- Read/write speed up to 424 kbps
- Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
- Supports ISO 14443 Type A and B cards, Mifare, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
- Built-in anti-collision feature
- Application Programming Interface:
- Supports PC/SC
- Supports CT-API (through wrapper on top of PC/SC)
- User-controllable bi-color LED
- User-controllable buzzer
- 5pcs of Mifare 1K card included
- CD-Rom included (Instruction Manual, Driver, Demo, SDK, etc.)
Specification
- Operating Frequency: 13.56MHz
- Operating Distance: Up to 50 mm (depends on the tag type)
- Read/write speed up to 424 kbps
-
Smart Card Interface Support:
- ISO14443 Type A & B
- Mifare
- FeliCa
- 4 types of NFC (ISO/IEC18092) tags
-
Supporting Operating SystemsSupply Voltage: Regulated 5V DC
- Win98, Win ME, Win NT 4.0, Win 2000, Win 2003, Win 2003 R2, Win XP, Win Vista, Win 2008, Win 7, Win 8
- Win 2003 x64, Win 2003 R2 x64, Win XP x64, Win Vista x64, Win 2008 x64, Win 2008 R2 x64, Win 7 x64, Win 8 x 64, Win 2012 x64
- Windows CE 5.0 and 6.0
- Mac
- Linux
- Android 3.1 and above
- Supply Voltage: Regulated 5V DC
- Supply Current: 200mA (operating); 50mA (standby); 100mA (normal)
- Operating Temperature: 0-50 °C
- Dimensions: 98 mm (L) x 65 mm (W) x 12.8 mm (H) (3.86 x 2.56 x 0.5 inch)

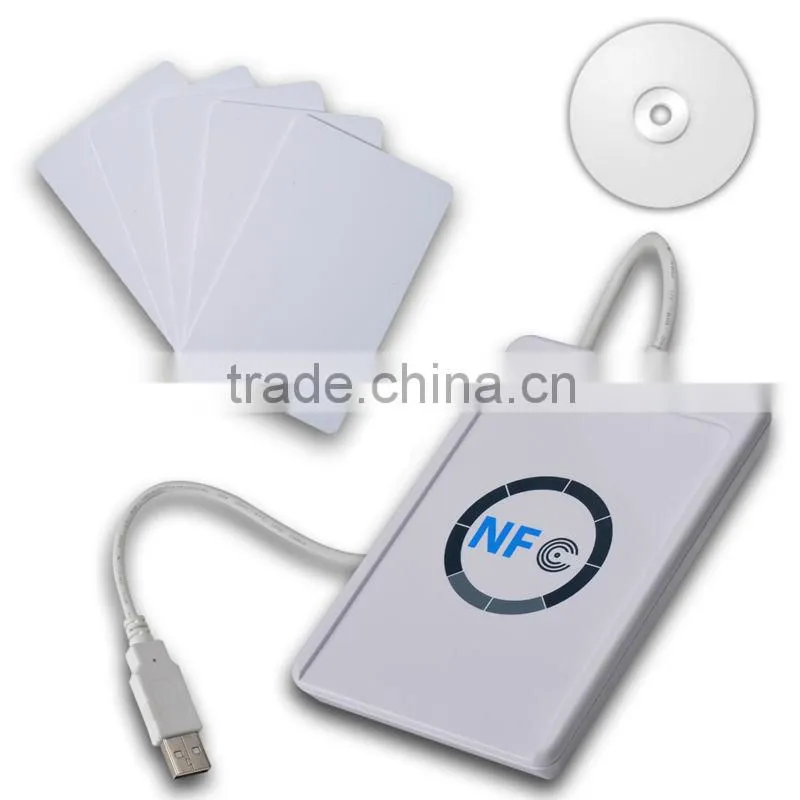

One Set Included
- 1 x ACR122U Reader & Writer
- 5 x Mifare 1K Card
-
1 x CD-ROM
