1.Product Characteristics
A: Titanium coated diamond
Size available:30/35—200/230
Mainly used for metal bond diamond tools
Advantages:
1.Improves the retention force between diamond and bond
2.Ti coating keeps diamond from pulling out of the tool.
3.increase the strength of diamond and the life of tools.
4.diamond surface protection against aggressive metals and gasses from the matrix during the sintering process, and prevents diamond from chemical etching and oxidation.

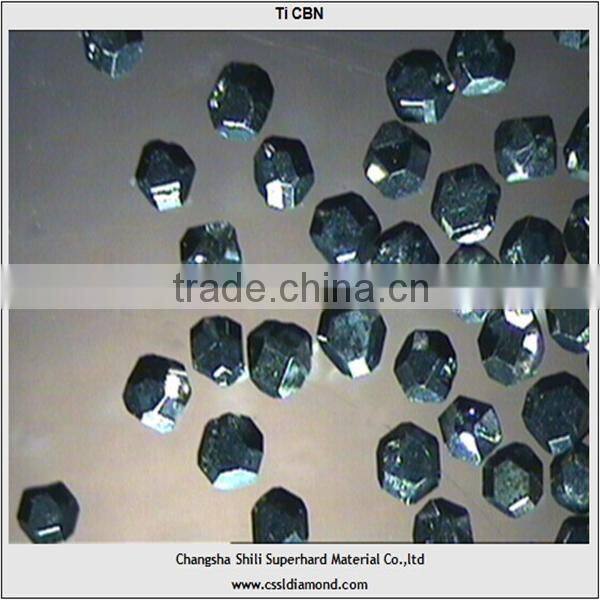

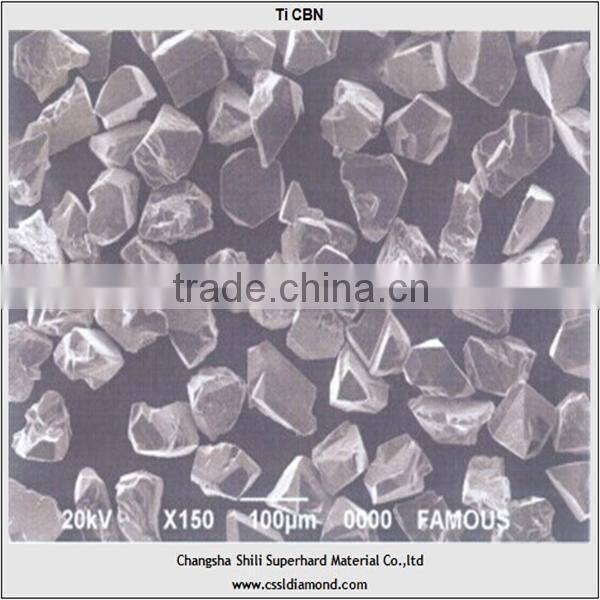

Titanium coated CBN
Titanium coated Diamond
B:Nickel coated (30-56%)
Size available:30/35-- 400/500-- 10-20μ
Dual layer Ti/Ni (30-56%) 30/35-140/170
One layer Nickel (30-56%) 170/200--400/500--10-20μ

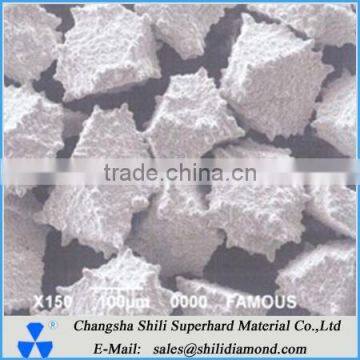

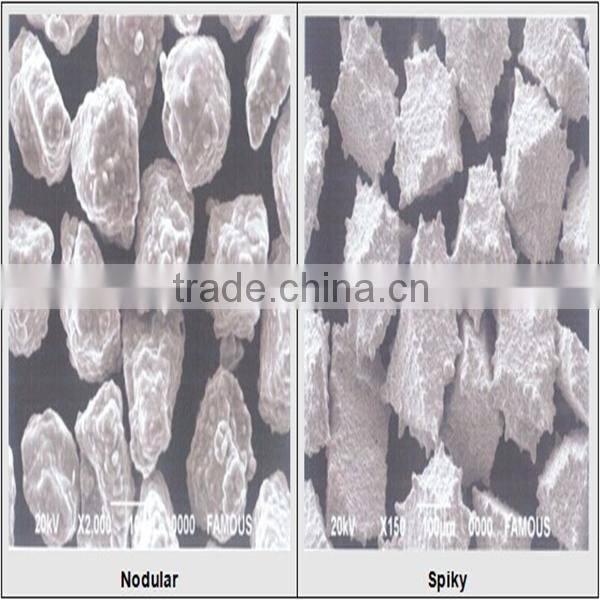

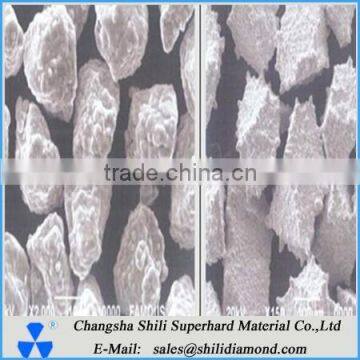

Spiky Nickel(50-56%) 30/35--400/500--10-20μ
Nodular Nickel (30-56%) 30/35--400/500--10-20μ
Ti coated inside, then the nickel coated on the second layer. Ti and Ni double layer.
Mainly used for resin bond diamond tools
coating Advantages:
1.Ideal for high force grinding.
2.Achieves the most powerful retention in soft bonds
3.minimizes diamond pull-out.
4.increase the strength of diamond , allows maximum utilization of the diamond, and provides significantly longer tool life, lower power consumption and superior cutting edge quality.
5. diamond surface protection against aggressive metals and gasses from the matrix during the sintering process, and prevents diamond from chemical etching and oxidation.
Nickel coated CBN

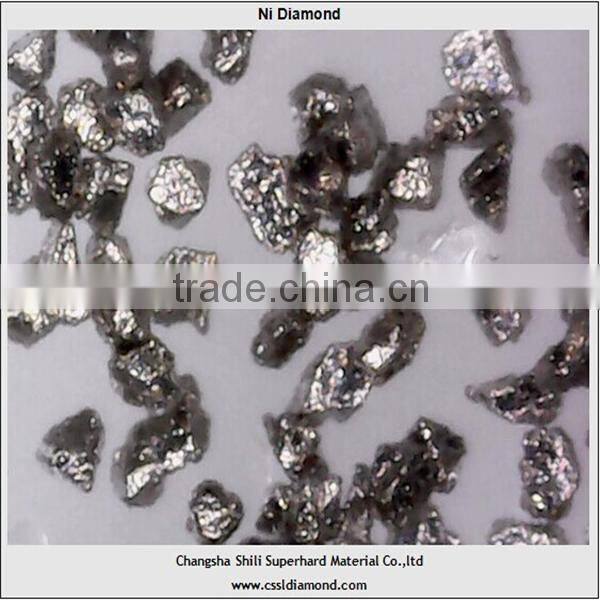

Nickel coated diamond
C: Copper coated diamond
Size available:30/35-- 400/500-- 10-20μ
Standard copper(50%)
Mainly used for bronze bond diamond tools
Advantages:
1.Improves the retention force between diamond and bond.
2. assists in heat dissipation
3.increase the strength of diamond, improve the diamond tool life.for this advantage,Cu coating works better than Ni coating.
4.better used for dry grinding applications,for example carbide

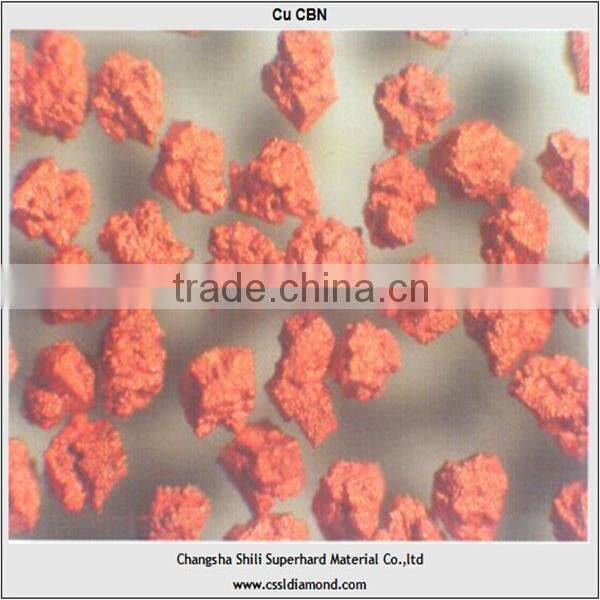

Copper coated CBN

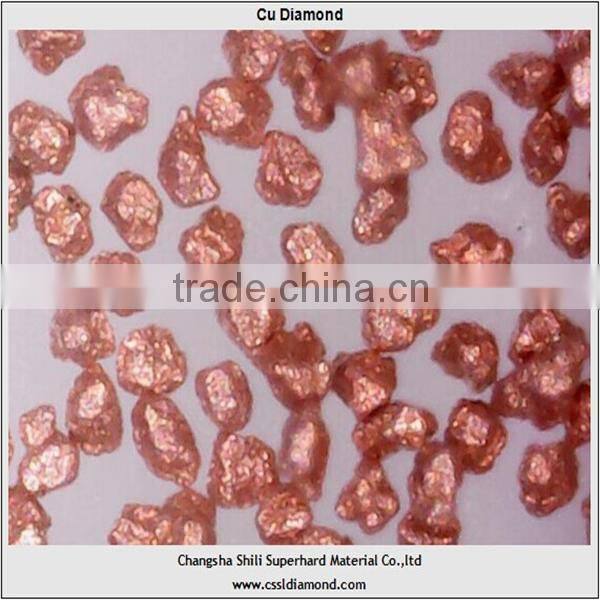

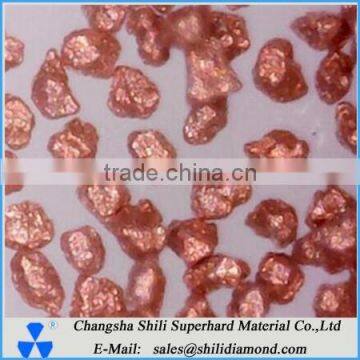

Copper coated diamond

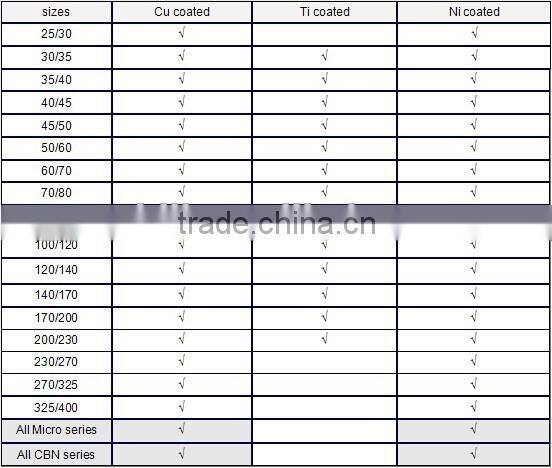

Available sizes for coated products:
Note:“√” stands for grains available
Other grains can be offered as per your requirement.
Why choose coating diamond?
1. increase the strength of diamond ,helps to improve the life of our diamond (and CBN) tool
2.Protection within the bond against thermal degradation.
3.The nickel cladding also assists in heat dissipation.
tecting the base so it can withstand the highest RPM speeds, grinding forces, and temperatures.
5.allows maximum utilization of the diamond, and provides significantly longer tool life, lower power consumption and superior cutting edge quality.

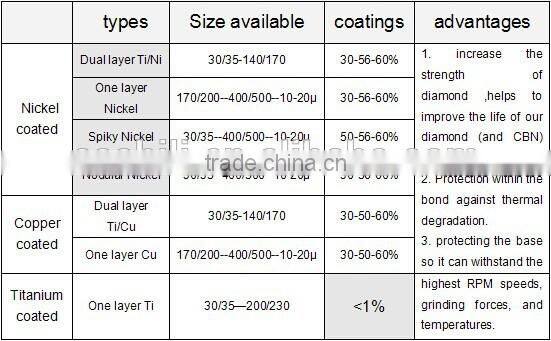

Coating Table:
* other ratio of coating as per your requirement
2.Packaging & Shipping
* Other package on your request.
3.Factory view
4.Certificate,Patents& Environment
