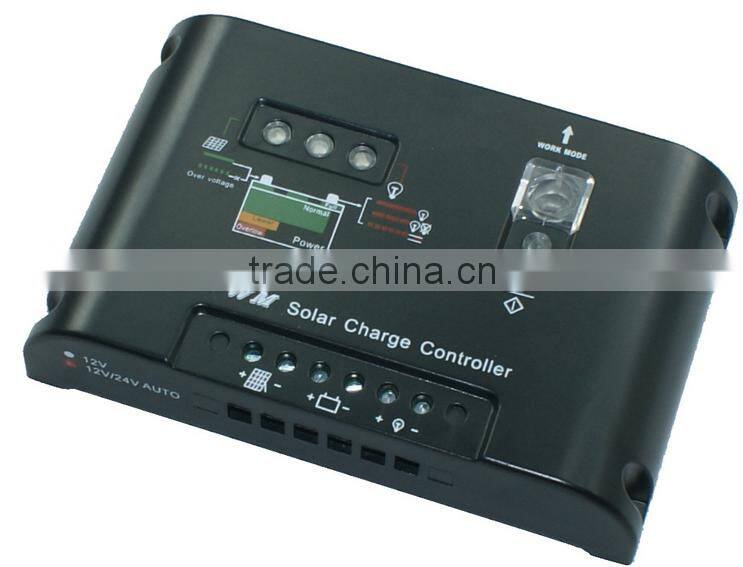

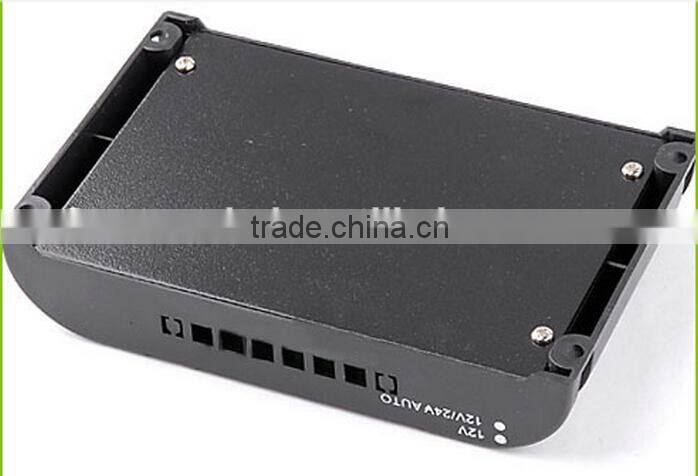

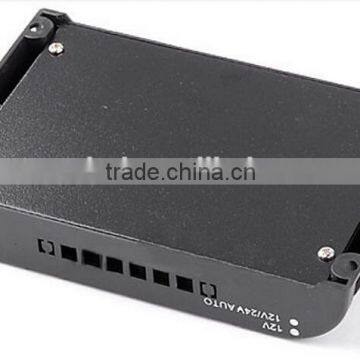

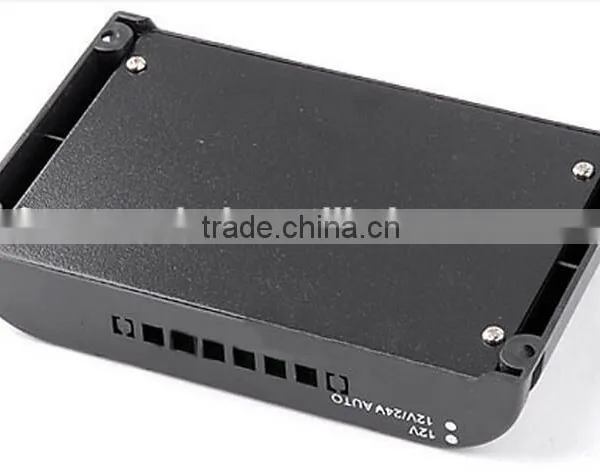

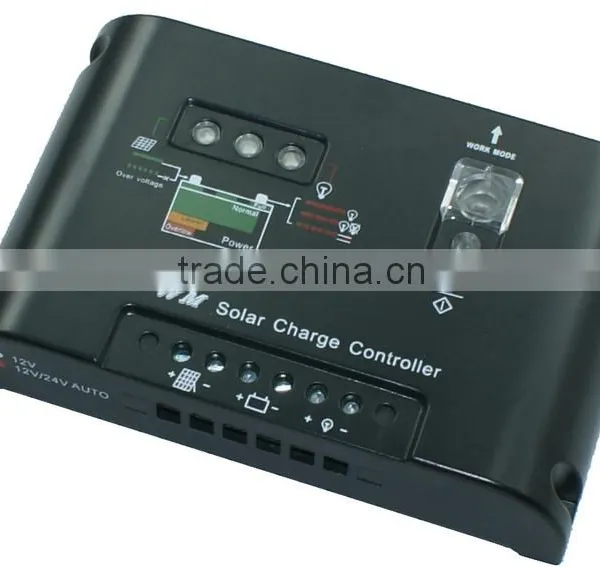

Solar Charge Controller PWM 12V/24V,10A for Solar Pannel

Name: Solar Charge Controller PWM 12V/24V,10A for Solar Pannel
Brand: Meind
SKU: 109935427
Availability: InStock

US$ 7.85 - 7.85 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Meind

Model Number:

MND-10A

Shenzhen Meind Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shekou Yantian

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Meind

Model Number MND-10A

Application Charger Controller

Rated Voltage Other, 12V/24V

Maximum Current 10A

Product Description

Model	MND-5A 10A 20A
System current	5A 10A 20A
Solar energy input voltage	≤46V
voltage	12V; 24V; 12V/24V Auto
No load losses	<5mA
Charging circuit voltage drop	≤0.20V
Discharge circuit voltage drop	≤0.15V
Over voltage protection	17V;×2/24V
Boost charge voltage	14.6V; ×2/24V(time of duration:10 minutes)
Direct charge voltage	14.4V; ×2/24V(time of duration:10 minutes)
Float charge voltage	13.6V;×2/24V
Charge recover voltage	13.2V;×2/24V
Over discharge recover voltage	12.5V;×2/24V
Lower discharge indication	12.0V;×2/24V
Over discharge voltage	11.1V;×2/24V
Temperature compensation	-4.0mV/℃/2V(boost voltage, direct charge,float charge and charge return voltage compensation)
Control method	PWM Smart Charging
Working temperature	From -35℃ to +65℃
Over-load and short circuit protection	Over-load protection: when the current of controller is 1.25 times of the rated current, the controller works for 30 seconds; 1.5 times of rated current, works for 5seconds. Short circuit protection: when the current of controller is more than or equal to 3 times of rated current, the protection starts.
Circuit protection	Over-load, over-discharge, short circuit and over-load protection	All the protections are harmless to any parts and fuse of controller.
	Anti-connection-reverse protection for solar battery and storage battery.
