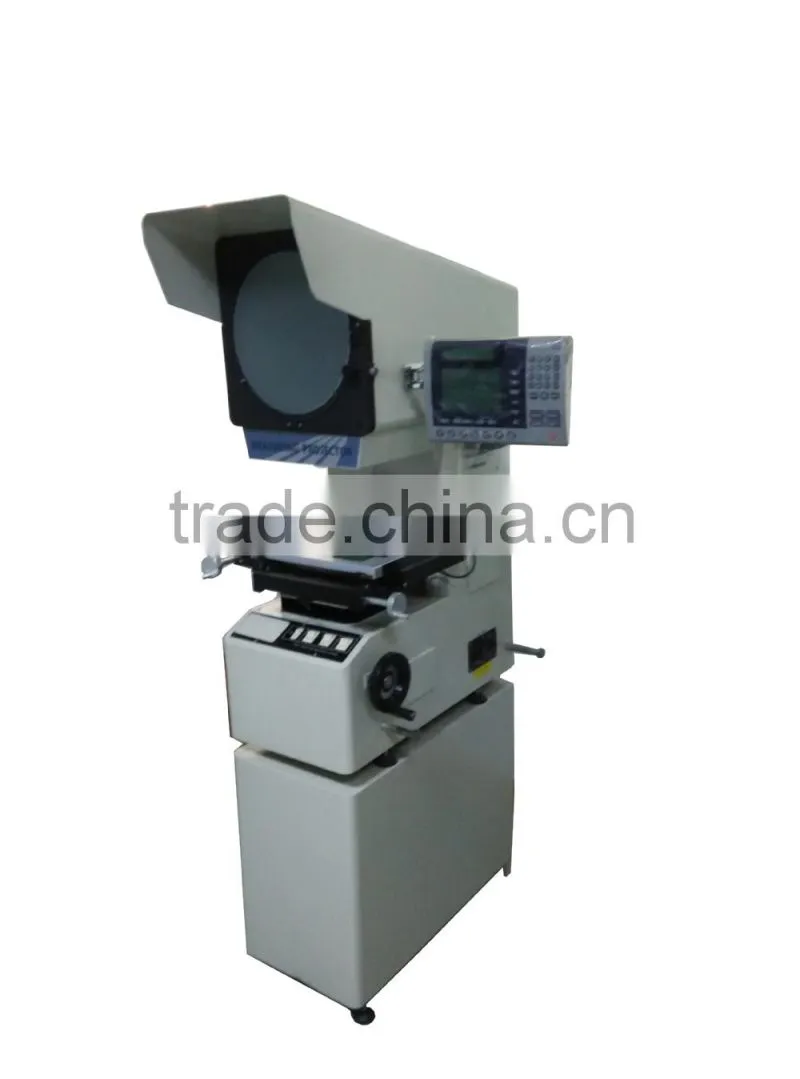

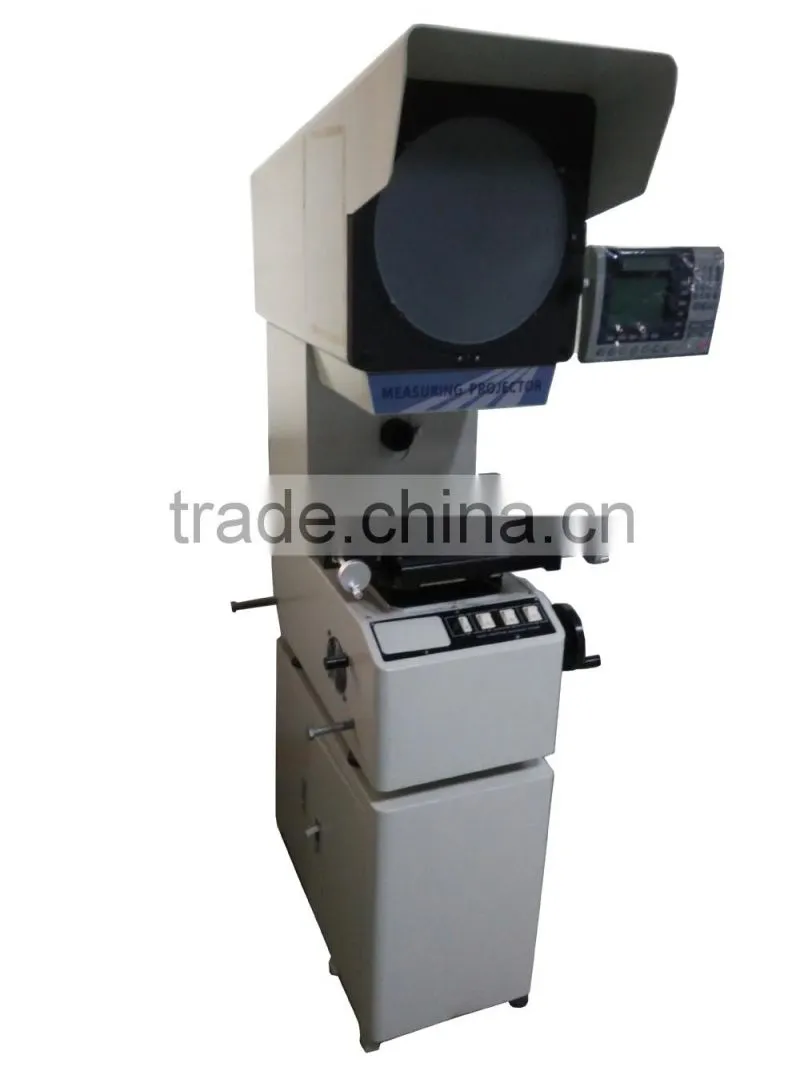

digital readout optical comparator
cheaper digital optical profile projector projector JQ3000 series are precise and excellent non-contact optical measuring instrument integrated with the technology of optic, mechanic, electricity and computer.
It is widely used at the field of mechanism, meter, electronic, rubber industry for quality control, it can inspect all kinds of surface and outline of complicated work-pieces, such as, cam, screw thread, gear, perform milling cutter and so on, and it is an effective metrical and analytic system for education, research institute and lab.

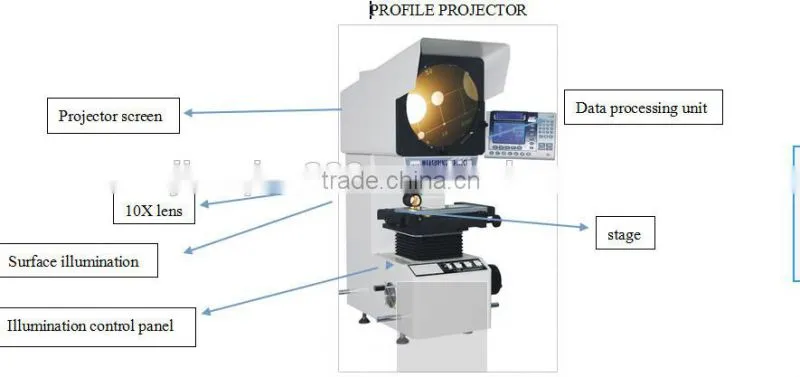

300mm diameter screen with digital protractor;
Four size of precision movement stages;
Double steel guide for stage lifting focus system;
Halogen profile and surface illumination;
Geometric multifunction data processing system;
Reverse Image |
JQ-3015 |
JQ-3010 |
JQ-3051 |
JQ-3020 |
|
Obverse Image |
JQ-3015Z |
JQ-3010Z |
JQ-3051Z |
JQ-3020Z |
|
Metal Stage Dimension |
340x152mm |
230x230mm |
354x228mm |
350x170mm |
|
Glass Stage Dimension |
196x96mm |
145x145mm |
210x160mm |
246x120mm |
|
Stage Travel: X-axis |
150mm |
100mm |
150mm |
200mm |
|
Stage Travel: Y-axis |
50mm |
100mm |
100mm |
100mm |
|
Stage Travel: Z-axis |
90mm(for focusing) |
90mm(for focusing) |
90mm(for focusing) |
90mm(for focusing) |
|
Accuracy |
≤(3+L/75)um |
≤(3+L/75)um |
≤(3+L/75)um |
≤(3+L/75)um |
|
Screen |
Screen Diameter :Ø312mm, Effective Range ≥ Ø400 (with "* " Reticle) |
||||
Rotary Range of Screen: 0~ 360° | |||||
Resolution Rotary Indicator: 1' or 0.01° | |||||

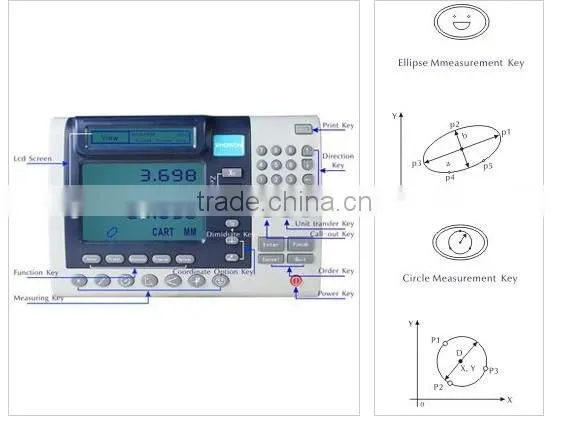

Digital readout |
DP100 (561-101) Multifunctional Data Processing System |
||||
Illumination |
Surface and Contour Illumination:24V/150W halogen lamp |
||||
Power |
AC110V/60Hz; 220V/50Hz, 400W |
||||
Cooling |
Forced Cooling (3-axis-fans) |
||||
Gross/Net Weight |
200/150Kg |
210/155Kg |
225/165Kg |
220/170Kg |
|

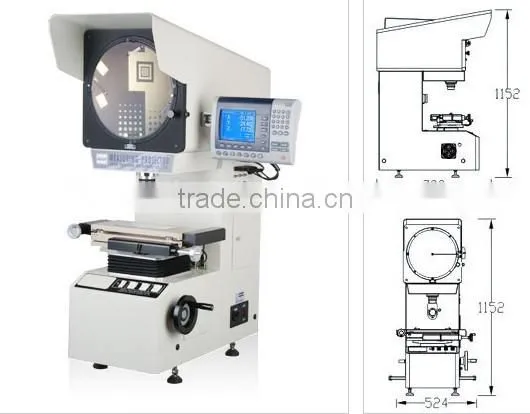

Dimension(LxWxH) |
780 x 530 x 1150mm |
780 x 530 x 1150mm |
780 x 530 x 1150mm |
780 x 530 x 1150mm |
|
Packing dimension |
990 x 765 x 1340mm |
990 x 765 x 1340mm |
990 x 765 x 1340mm |
990 x 765 x 1340mm |
|
Optional Accessories |
Optional Accessories |
Optional Accessories |
Measuring Software |
VX12-20x Objective |
Rotary Table RT1 |
Foot-Switch ST150 |
VX12-50x Objective |
Rotary Table RT2 |
Digital Readout DP300 |
VX12-100x Objective |
Working Cupboard ST02 |
Edge Detector SED-300 |
Over-Chart ST140 |
Printer Paper |
Holder Clamp |
V-shape Clamp |
Swivel center support |
Dongguan Jianqiao Testing Equipment Co.,Ltd. is a China base manufacturer and exporter of testing equipment. It is a high-tech company in metal and non-mental materials testing,measuring,and analytic industries.
We are specialized in R&D,production,focus more on quality and after-sales service.We always try our best to devote ourself in providing high quality products which based on our innovation,exellent technoligy team,and strict production control system.
Delivery:Ship from Shenzhen by sea.
Packaging Details: packed in one fumigated heat treating wooden package. Customers's requirements are also allowed.
1.Pre-service
24 Hours online service for your consult
Help choose right model with series of service,person, and adviece
2.Middle service
--Give you best offer
--Provide favourable discount
--Meet your demand
--Choose payment term you convienent
--Promptly production and delivery, inform you in time
--Provide invoice value as you like to decrease your tax
3.After-sale service
--1-year warranty service
--Technical Egineer are avalible for oversea trainning
--Free change for some parts
--Remote control technical consult
--Maintenance plan
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Why Choose Us?
1.We are professional test equipment manufature in china,has excellent experience.
2.We have advanced machine equipment, cost savings.
3.We supply 24 hours online service to slove your every question.
4.We have the best knowledge about the drying machine in USA,UK,CANADA,SOUTH AFRICA,INDIA,AUSTRALIA,ETC.
If any questions or need more information,please feel free to contact us.
Warmly welcome your visit to our factory!
