Home > Instruments & Meters > Physical Measuring Meter > Speed Measuring Meter > Digital Air Flow C F Velocity Beaufort Scale Wind Speed Meter Anemometer

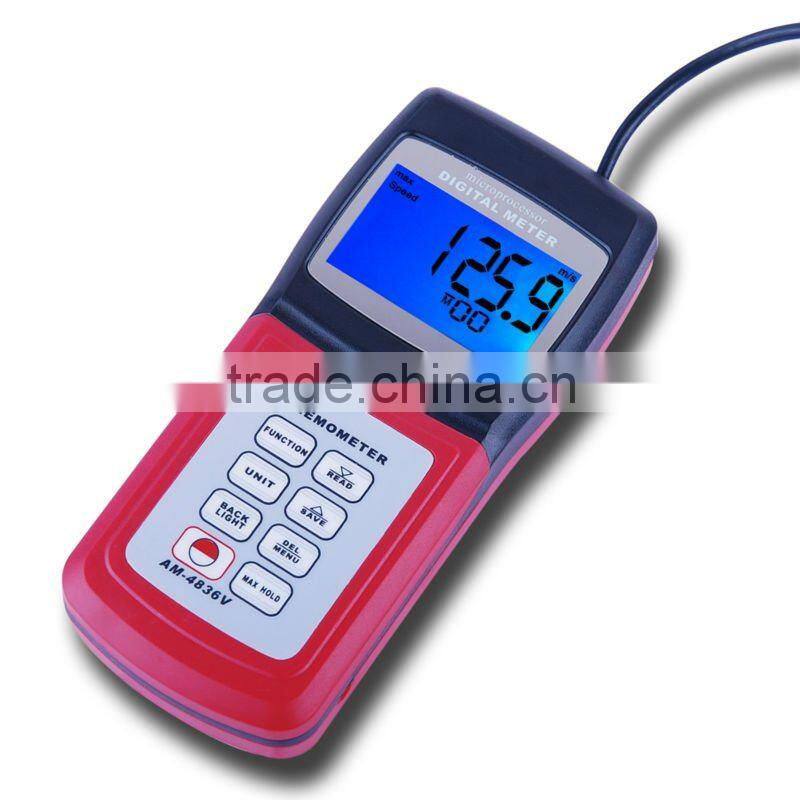

Digital Air Flow C F Velocity Beaufort Scale Wind Speed Meter Anemometer

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

China

Model Number:

AM-101-V

Contact Supplier Request Quote Chat Now

Rise Enterprise Company

Payment & Shipping

Payment Methods:

Port of Shipment:

Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Model Number AM-101-V

Specifications

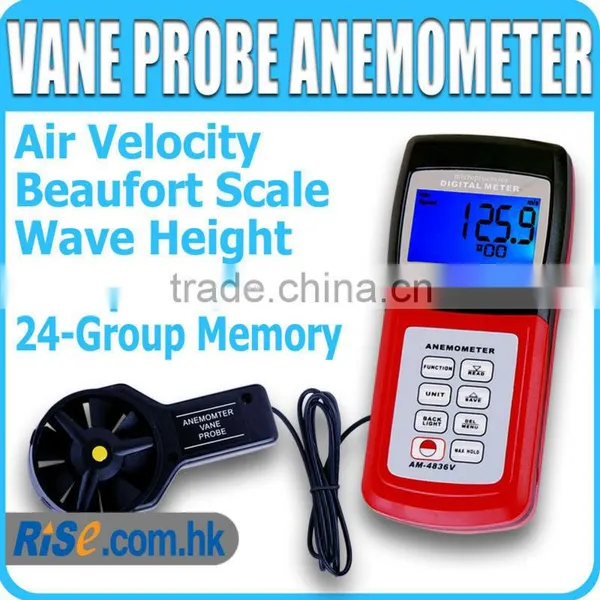

Professional Thermo-Anemometer with Vane Probe

Brief Description

This anemometer is a multifunction meter to provide instant data such as Air Flow, Air Velocity, Beaufort Scale, Wave Height estimation and Air Temperature. It is featured with Maximum Hold function and memorization of 24 groups of data.

This meter is widely used in data collection for boiler, refrigeration industry, ventilation duct, environment monitor, navigation measurement, sailing, kite-surfing, weather forecast, collection of the weather datum for outdoor busywork and fire department.

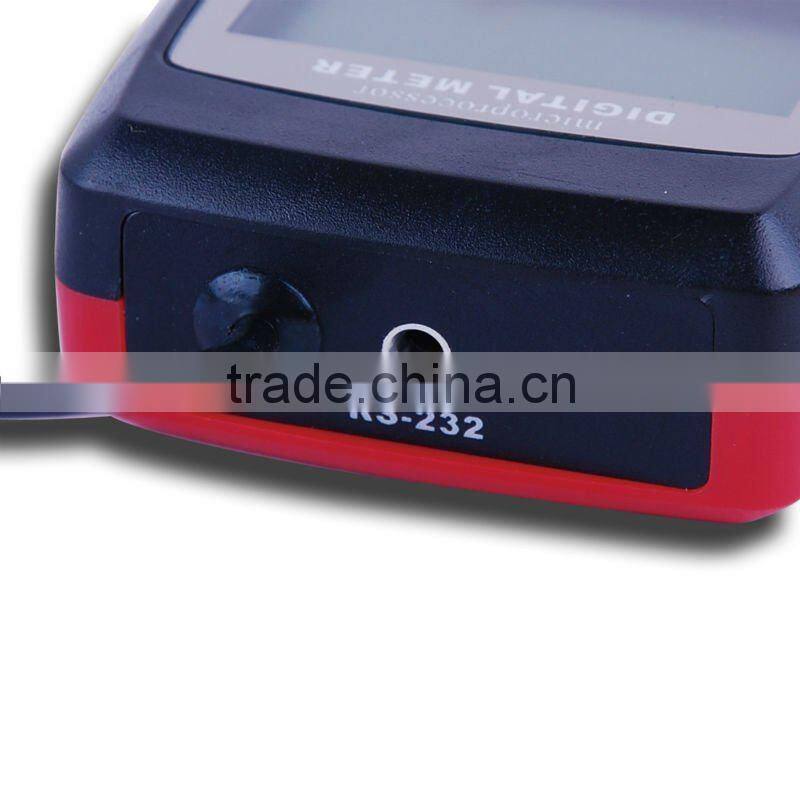

Moreover, you can connect to the computer to collect and retrieve the Weather datathrough optional software and cables.

This advanced item can determine the following useful measurement data:

Air Velocity
Air Flow
Beaufort Scale
Wave Height
Air Temperature

Features

Large and Clear LCD with Blue Backlight
Maximum Data Hold function
Memorization of 24 groups data
Selectable in m/s, km/hour, feet/min, knots (nautical MPH) in Air Velocity
Selectable in m³/min and feet³/min in Air Flow
Selectable between ºC and ºF in Air Temperature
Conventional angled vane arms with ultra-low friction ball bearing
0~9 minutes Auto-Power Off function set by users
Conformed with CE standard
Optional Software CD and USB Cables

Specifications

Custom LSI Microprocessor Circuit
LCD display: 4 digits, 0.5" (13mm) LCD with Backlight
Measurement units

a. Air Velocity: m/s, km/h, ft/min, knots

b. Air Flow: CMM (m³ / min), CFM (ft³ / min)

c. Beaufort Scale: Force

d. Wave Height: m

e. Temperature: °C and °F

Maximum value data hold feature
Memory: 24 groups data
Sampling rate: approx. 1 reading per second
Air velocity / flow sensor: Conventional angled vane arms with low friction ball bearing
Temperature sensor: Precision Thermistor
Automatic power off: 0 ~ 9 minutes set by users
Operating Temperature: 0 ~ 50 °C (32 ~ 122 °F)
Operating Humidity: Max. 80% R.H.
Power Supply: 4 x 1.5 AAA size Batteries (not included)
Length of cable between main unit and sensor: 120 cm (4 feet)
Item Dimensions: approx. 156 (L) x 67 (W) x 28 (D) mm (6.1 x 2.6 x 1.1 inch)
Item Weight: approx. 260g (9.17 oz)

	Range	Resolution	Accuracy
Air Velocity
m/s (meters per second)	0.40 ~ 45.0 m/s	0.1 m/s	± (2% + 0.1 m/s)
km/h (kilometers per hour)	1.4 ~ 162.0 km/hr	0.1 km/hr	± (2% + 0.1 km/hr)
ft/min (feet per min)	80 ~ 8860 ft/min	0.1 ft/min	± (2% + 1 ft/min)
knots (nautical MPH)	0.8 ~ 88.0 knots	0.1 knots	± (2% + 0.1 knots)
Air Flow
CMM (cubic meters/min)	0 ~ 9999 m³/min	0.001 ~ 1	± (2% + 1 m³/min)
CFM (cubic ft/min)	0 ~ 9999 ft³/min	0.001 ~ 1	± (2% + 1 ft³/min)
Beaufort Scale	0 ~ 12 level	0.1	± 0.5
Wave Height	0 ~ 14 m	0.1	± 0.1
Air Temperature	32 ~ 140 °F	0.1 °F	0.9 °C
	0 ~ 60 °C	0.1 °C	0.5 °C
