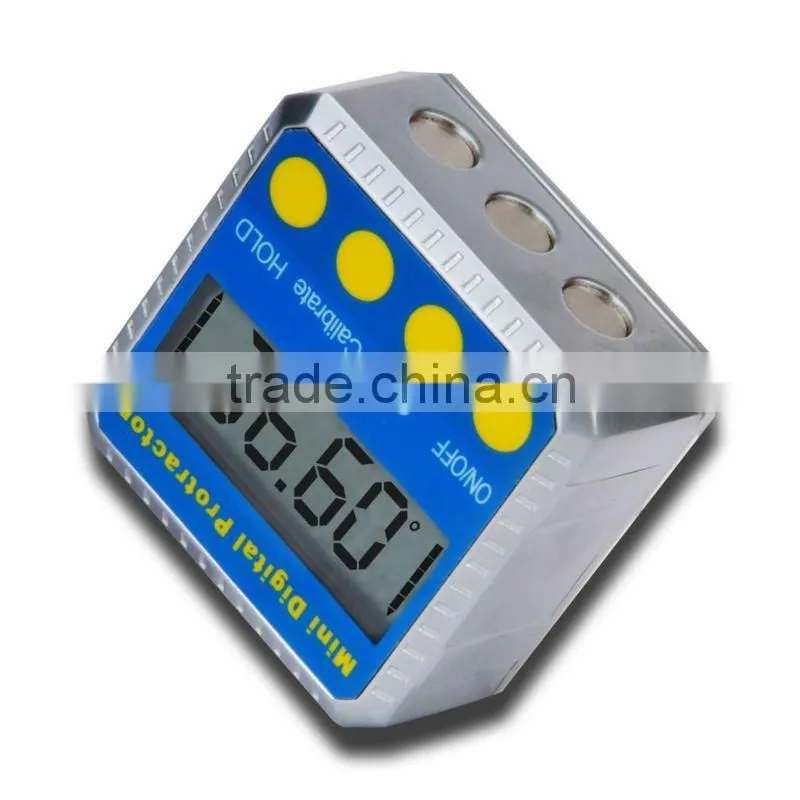

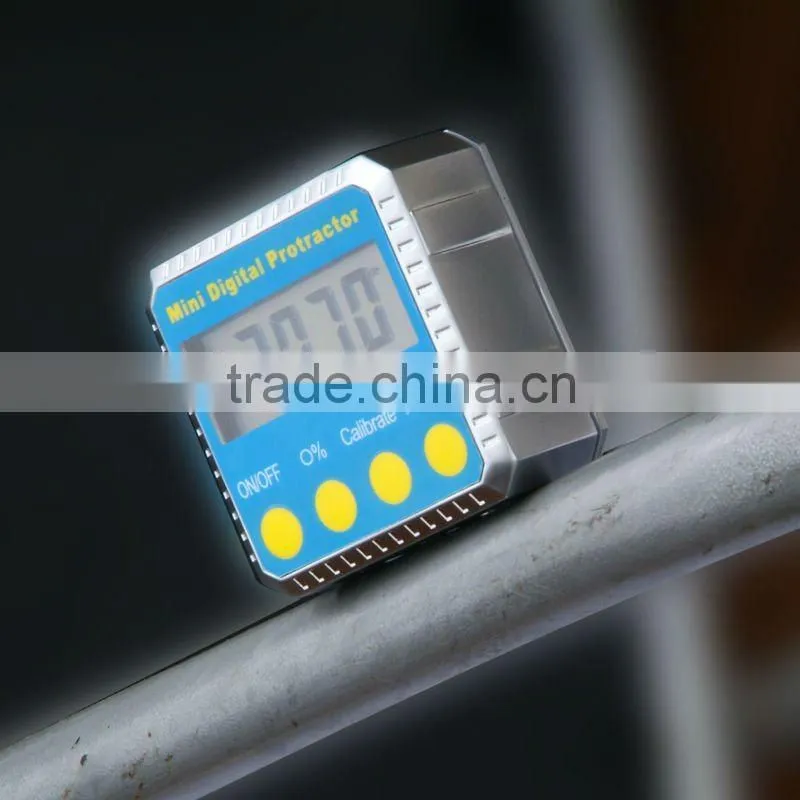

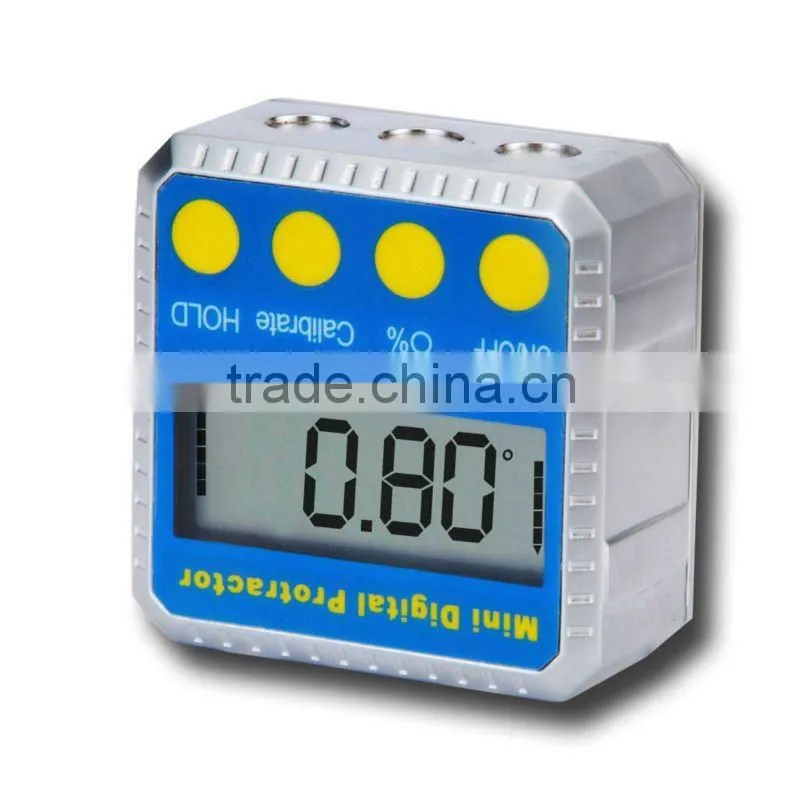

Digital Angle Gauge Meter Protractor 360 Degree Magnets Base Level Slope Bevel Box Inclinometer
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
IM-101
Payment & Shipping
Payment Methods:
Port of Shipment:
Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Digita Angle Gauge Meter Spirit Level 360 Degree Slope Level Bevel Box InclinometerNegotiableMOQ: 1 Piece -
360 Degree Digital Protractor Angle Meter Finder Level Slope InclinometerNegotiableMOQ: 1 Piece
-
V-Groove Protractor Angle Finder 12 Magnet Level Slope InclinometerNegotiableMOQ: 1 Piece
-
Digital 3-in-1 Protractor Angle Finder 0 ~ 360 Degree V-Groove Slope Level InclinometerNegotiableMOQ: 1 Piece
-
Digital Level Angle Gauge 0 ~ 360 Degree Protractor Slope InclinometerNegotiableMOQ: 1 Piece
Place of Origin
China
Model Number
IM-101
Specifications
Digital Bevel Box / Inclinometer (0~360 degree )Brief Descriptions
This inclinometer(angle measuring device) can be used to measure angles within ±180 ° (0 ~ 360 ° ) range in wide variety of applications. You can simply place the meter on a reference surface zero, then it will give a result of measured angle within 0.1° accuracy.
The built-in strong disk magnets on the bottom can firmly attach the meter to the surface you are going to measure, so that you can easily and quickly set the bevel angle. The reading is always displayed as upright. This meter works great for miter and table saws, detailed applications are listed as follows.
Applications
- Drainage angles and run-off slopes
- Tool setting on Lathes
- Setting blade angle of Circular Saws
- Setting blade angle of Miter Saws
- Setting work piece angle for milling
- Grader and tractor work alignment
- Platform monitoring
- Check drill press table setting, table saw, jointer table, band saw, jointer fence or band saw table
Features
- Small and portable design
- Fast and accurate measurement
- Degree and Percentage of slope in conversion
- Measuring range of 4 x 90 ° with ±0.1 ° repeatability
- Large and clear LCD display with 0.1 ° resolution
- Hold Measured data
- Calibrate button to calibrate the meter to any reference surface
- Three built-in magnets on the base can attach any magnetic surfaces
- The unit will directly enter the state of absolute angle measurement every time be turned on (No matter change the batteries)
- Absolute and relative measurement conversion
Specifications
- Measuring Range: 4 x 90 °
- Resolution: 0.1 °
- Repeatability: ±0.1 °
- Operating Temperature: 0 ~ 40 °C
- Operating Humidity: 40 ~ 80%
- Power: 3 x 3V CR2032 Batteries (not included)
- Dimensions: approx. 51 (L) x 51 (W) x 27 (D) mm (2.01’ x 2.01’ x 1.06’ inch)
- Weight: 122 g
One Set Included
- 1 x Bevel box
- 1 x Instruction Manual
- Standard Factory Package
