Specifications

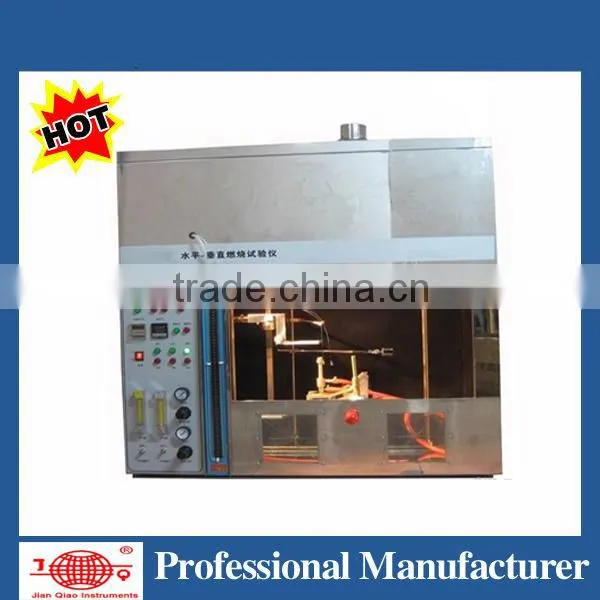

Conform to UL94,IEC60695-11-4,IEC60695-11-10.UL-94 Vertical and horizontal Flame Test Chamber
Product explanation:
This machine was strictly designed and manufactured to meet the requirements of standard. It is used to test the resistance on fire of plastic material used in appliance and accessories.
Features:
* This machine can record the burn time and finish experiment automatically.
* Both FT and VW test can be performed by this machine.
* A big window in the door makes viewing more convenient.
* Controlled by PLC, the test would be more precise.
Technical parameter:
Power source: AC 220V 50Hz 2.5A
The interior capacity: 0.5 m3
Interior chamber dimensions: 700×600×1200mm (W×D×H)
The inner diameter of burner: 9.5+-0.3 mm
Burner length: 100+-10mm
The burner tilted angle: 90 or incline 45
Gas: firedamp (at least 98.0 percent pure, provided by clients)
The measuring range of flowmeter: 0~150ml/min
Flowmeter precision: 2%.
Burner reverse motion speed: 0~300mm/s adjustable
Exterior dimensions: 1040×600×1300 mm (W×D×H)
