PTI & CTI Electric Leakage Tester (JQ-5101)

PTI & CTI Electric Leakage Tester (JQ-5101) thumbnail-1
PTI & CTI Electric Leakage Tester (JQ-5101) photo-1
US$ 2,000 - 4,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
JIANQIAO
Model Number:
JQ-5101
Contact Supplier Request Quote Chat Now
Dongguan Jianqiao Testing Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name JIANQIAO
Model Number JQ-5101
Power Electronic
Usage Other, Tracking Index Tester

Specifications

electric leakage tester
1.High quality
2.Low price
3.Good after service

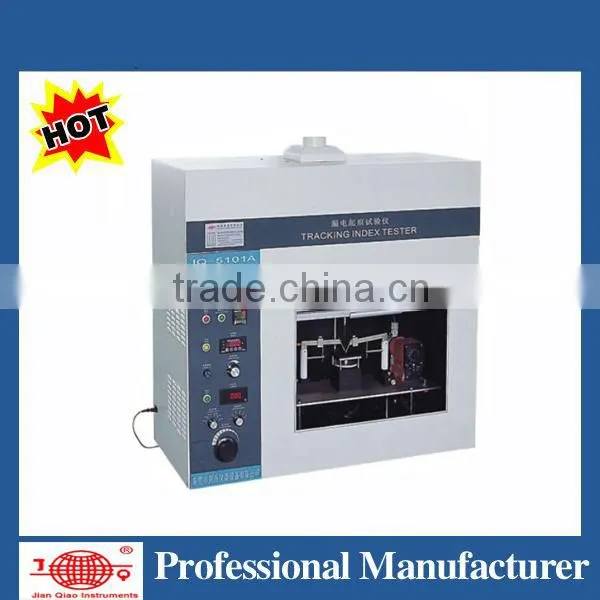

Tracking Index Tester (JQ-5101)

Basic introduction:

1, Accord with IEC60112, UL 746A,  GB/T4207, GB4706.1 ASTM D 3638-92 standard prescribed simulation experiment project.
2 Between solid insulation material surface and predetermined size (2mm x 5mm) platinum electrode,Applied voltage , timing (30s)and set height (35mm),drip provisions of volume of liquids (0.1% NH 4 conductive CL) to evaluate resistance to tracking performance of solid insulation materials in electric and moist or pollution medium combination ,measure its comparative electric mark of index (CT1) and withstand voltage marks of index (PT1)

Applicable to lighting equipment, low voltage electric appliance, household appliances, electric machine, motor, electric tools, electronic instrument, electrical instruments, information technology and equipment research, production and quality inspection department, also suitable for insulation materials, engineering plastic, electrical connectors and so on..

Detail 0f product:

1, Electrode materials: electrode head ,-- Platinum
2, Electrode pressure: 1.0±0.05N
3, Electrode distance: 4.0mm ± 0.01mm, Angle of 60 °± 5
4, Electrode voltage: 100 ~ 600V (48 ~ 60HZ) is adjustable, short-circuit current in the 1.0±0.1A ,voltage drop less than 10%
5, Drops liquid height:  30 ~ 40mm adjustable
6, Drops liquid size: 44 ~ 55 drops / 1cm3 adjustable
7, Drops liquid time: 30s± 5s,
8, Drops liquid number: 0 ~ 999 times is adjustable
9, Leakage judgment: A loop current exceeds 0.5 A and keep 2 seconds is relay action interrupts the current, instructions, sample unqualified
10, Test process: tautomatic control, independent convulsions
11, Consult standard: IEC60112, GB/T4207, GB4706.1
12, Studio volume: 0.1 m3 (according to different standards customized 0.5 m3 or 0.75 m3)
13, Outside dimensions(mm): 1200 x 520x 1350 (W*D*H)

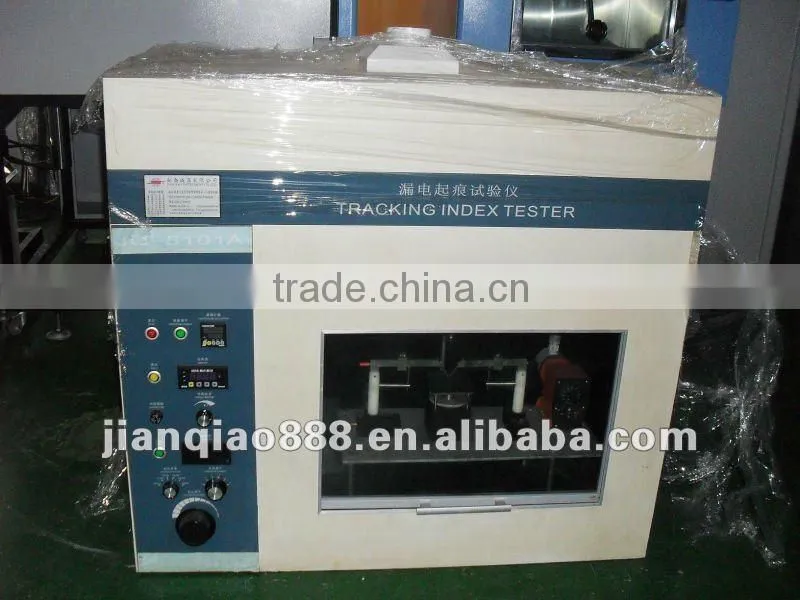

PTI & CTI electric leakage tester (JQ-5101)
