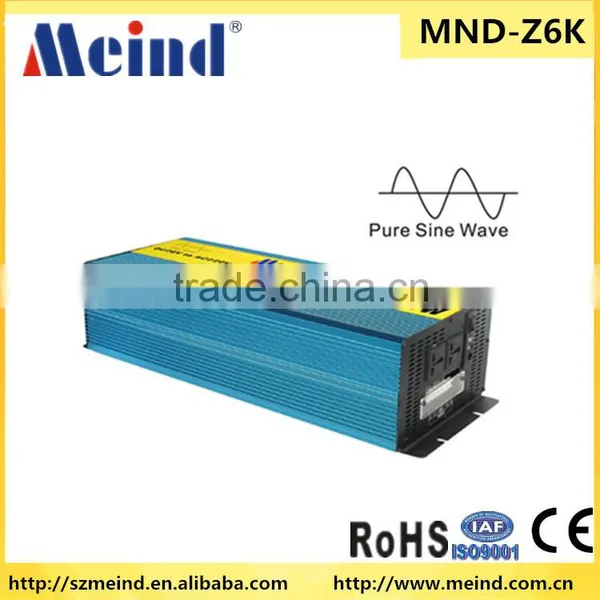

Meind Pure sine wave power inverter 600W ,MND-Z6KW
Meind Power Inverter widely use in the car, on the boat, transfer 12V /24V DC power directly to 110V or 220V AC power for supplying the Laptop computers, camera, cell phones, camcorders, televisions, electric shaver, car refrigerator and other electronic devices when outdoor for tour, camping and medical treatment.
The power inverter has advantages of Compact and light weight, practical and prefect modeling, and its self-supplied auto cigarette lighter plug can easily connect to a vehicle's battery. you can get 220v (110V) AC direct from the car power inverter output socket.
1)Input Voltage:DC12V(10—15V),DC24V(18-28V)
2)Output Voltage:AC220V(AC100V,AC110V,AC120V,AC240V)
3) Continuous Power output: 6000W
4)Peak Power:12000W
5)Output Wave form:Pure Sine Wave
6)Frequency output:50Hz,(60Hz) ±4%
7)Availability Power: ≥90.5%
8) LOW Voltage Range:
9) High Voltage Range: >DC14.8V/DC28.5
10) No Load current: ≤0.4A
11) Soft-Switch Function: Yes
12) Short-Circuit Protection: Yes
13) Reverse Protection: Yes (+/ -)
14) Over-Load Protection: >6000W
15) High-Temperature Protection: >70℃ will turn off, and re-boot < 45℃
16) High-Voltage Protection: DC16V±1V
17) Low-Voltage Protection: DC10.5V±0.5V
18) Auto Reboot Function: Yes
19) Fuse: Built-In 20X40A
20) Cooling Fan: Yes( Automatic: when temperature>45℃, will auto-start to cooling, and after <40℃ will off)
21) USB port output current:No USB Port.
22) Charging Function: Yes
23)UPS function:NO
[Product Protections]
[1]Over Load Protection:
When connected load exceeds the power inverter rated power watts (W), the inverter will automatically shut down to stop the output.
[2]Over Heat Protection:
As the internal temperature of the power inverter or the ambient temperature is too high, the inverter output will automatically stop to ensure the safety of electrical equipment.
[3]High-Voltage Protectionion:
When the DC input voltage exceeds the normal range of the power inverter will automatically shut down to stop the output voltage is too high note when there may be damage to the machine.
[4]Low-Voltage Protection:
When the battery or power supply voltage is too low, the power inverter will stop output automatic shutdown protection to protect the battery or power supply is not compromised.
[5]Reverse Protection:
When the car inverter link reverse to battery, inverter fuse will be blown, without damaging the product itself, you need to replace the fuse.
[6]Short Circuit Protection:
When the load is connected severe short-circuit fault, the inverter will automatically shut down to stop the output.
[Multitudinous Output Socket]
1. Packing: Gift Box
2. CTN 24pcs
3. (cm)/Dimension 51*38.8*38CM
4. Weight: 1.0kg
5. Net weight (N.W) 24.0kg
6. Gross weight (G.W) 28.0kg

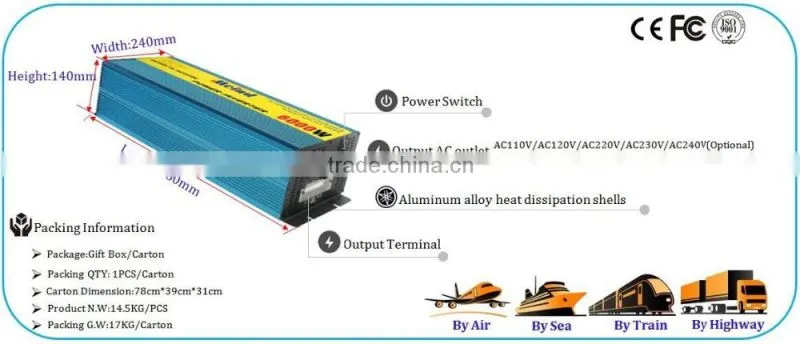

Product Pcitures:
