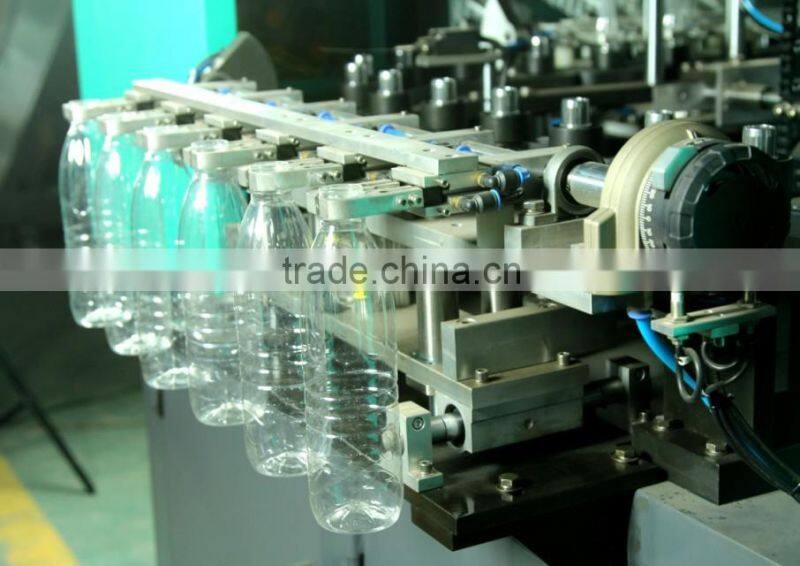

pet bottle making machine price
Features:
1). Stable performance with advanced PLC.
2). Automaticpreform conveyer to save human cost.
3). Preform self-rotationand infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.
4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.
5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.
6). Introduce the FESTO air cylinder to avoid contamination and noise.
7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
8). Strong clamping forcewith high pressure and double crank links to lock the mould.
9). Two ways of operating: automatic and manual.
10). Safereliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.
11). Low costhigh efficiencyeasy operation and maintenance etc, profited from the fully automatic technological process.
12). Ideal cooling system make the finished bottles without any flaws.
13). Easy for you to installtest and start up.
14). Low rejection rate: less than 0.2 percent.
Technical parameter
Model |
UT-2000 |
UT-4000 |
UT-6000 |
Clamping force |
180KN |
370KN |
565KN |
Clamping stroke |
120-175MM |
120-175MM |
80-130MM |
Number of cavities |
2Cavity |
4Cavity |
6Cavity |
Theoretical output |
2000BPH |
4000BPH |
5500BPH |
Max.mould thickness |
250MM |
250MM |
300MM |
Total power |
28KW |
60KW |
75KW |
ntainer volume |
1.5L |
1.5L |
1.5L |
Neck diameter range |
16-38mm |
16-38mm |
16-38mm |
ntainer diameter |
110mm |
110mm |
110mm |
ntainer height |
380mm |
380mm |
360mm |

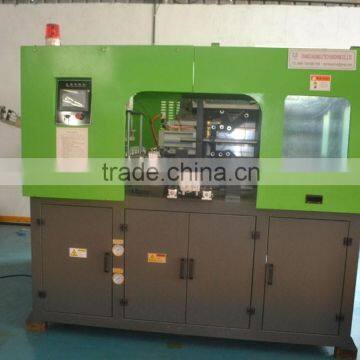

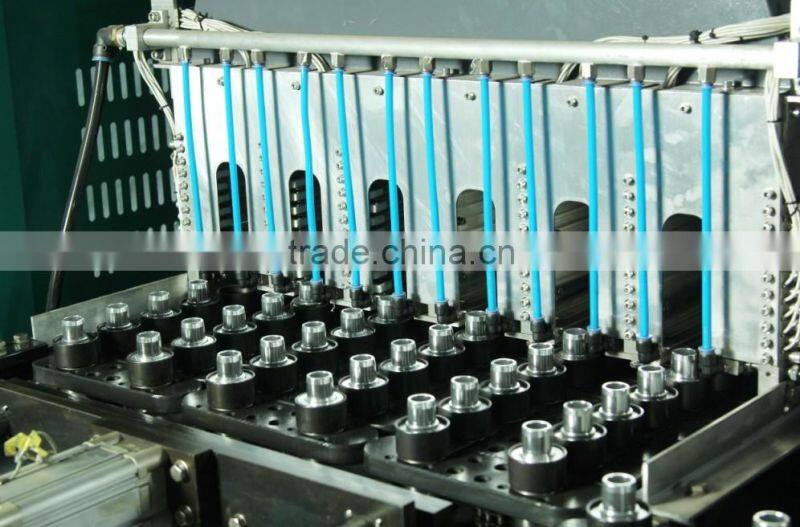

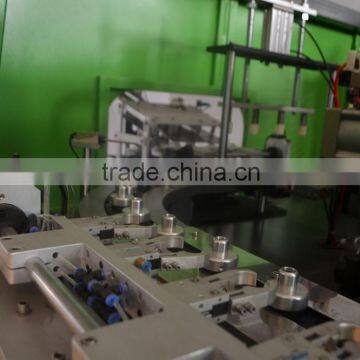

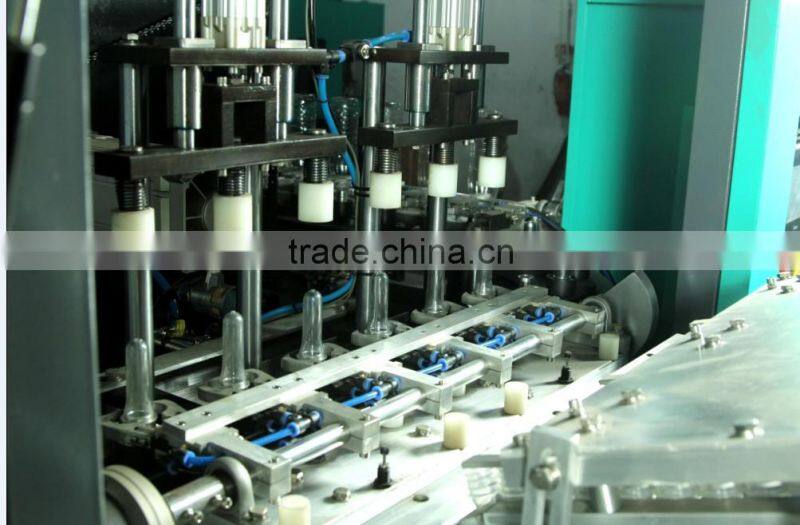

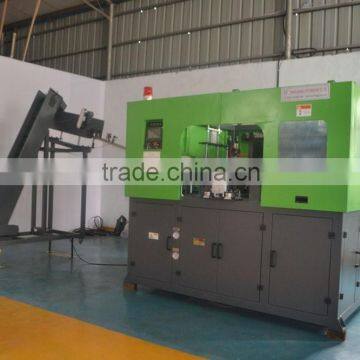

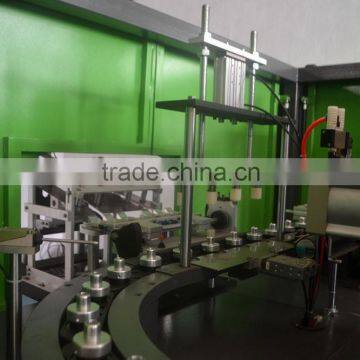

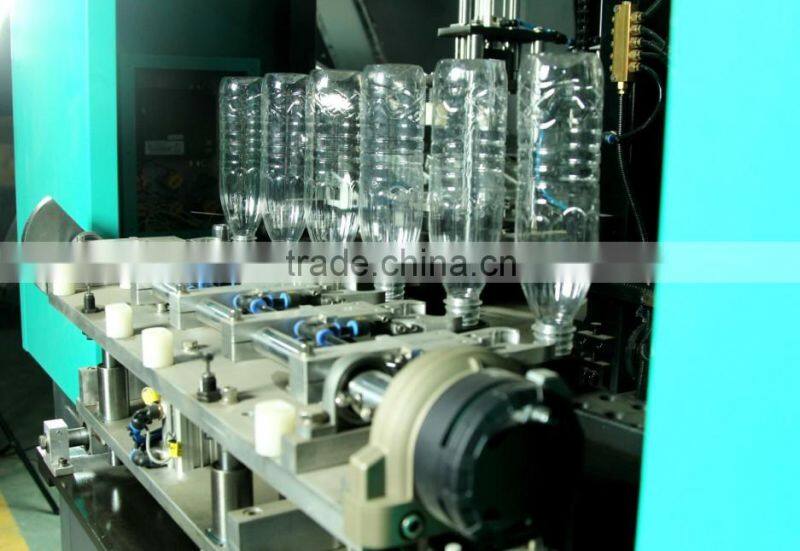

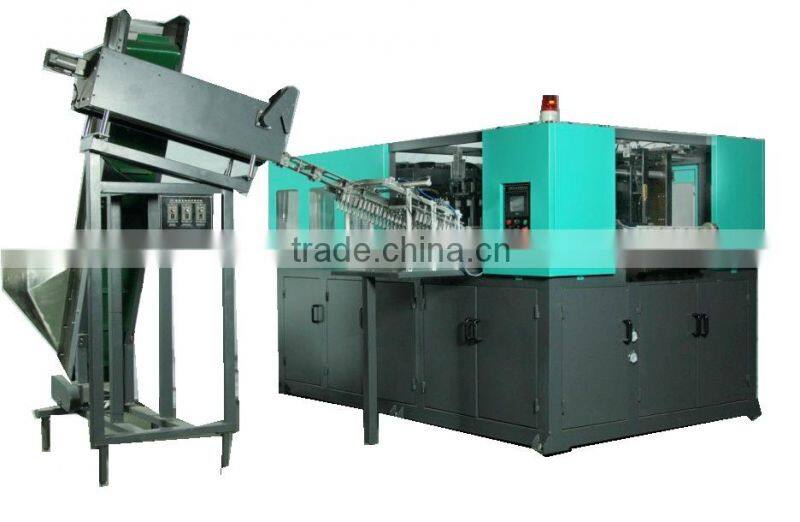

Machine picture
pet bottle making machine price

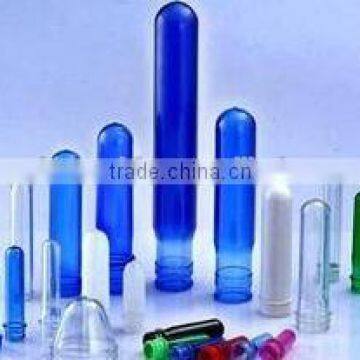

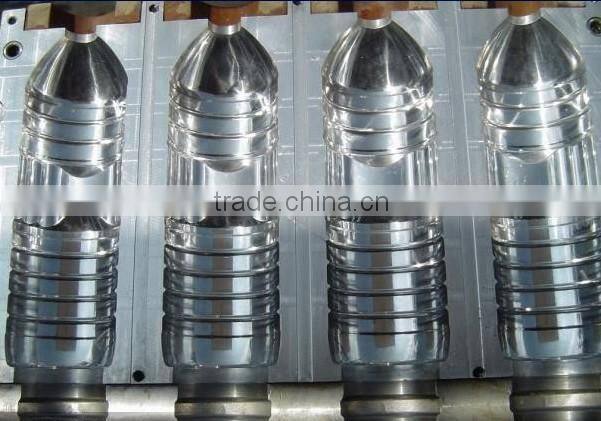

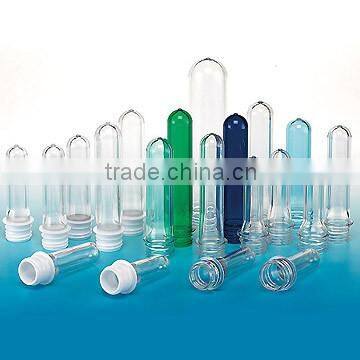

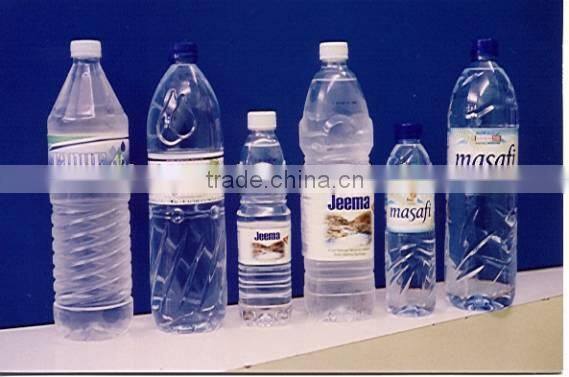

Sample
pet bottle making machine price
pet bottle making machine price
Why choose U TECH MACHINE?
1.Stable high quality of machines(Customer feedback & C.E, ISO Certificates & Alibaab Supplier Assessment)
2.Competitive price
3.Fast,effective and efficient service
4.Quality-packaging
5.2-years-warranty
U TECH is your best choice! We have 10 years' experience.
