Specifications
Two Head Casting Station Bottle Neck Labling Machine1.Round/plastic/glass bottle
2.30-150 b/min
3.High speed servo system

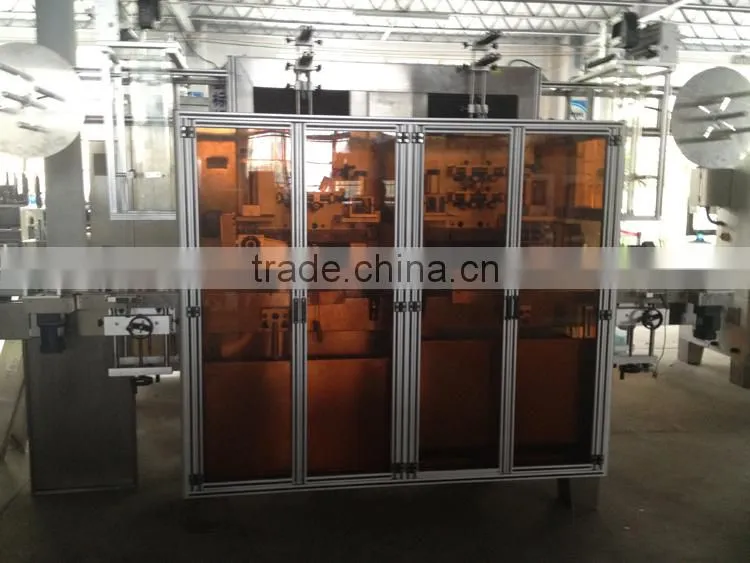

Two Head Casting Station Bottle Neck Labling Machine
Features:
All-cover type stainless steel host machine: the whole machine is waterproof as well as rustproof.
Adjustable cutter head: unique cyclotron cut-off, double sided cutting edge with a long service life.
Single positioning centre guide pillar: more stable for label delivery.
Synchronous bottle divider: a more stable transmission for the bottle.
Bottom set label brush: more precision for casting label.
Label-controlling electric-eye shelf: unique combination of tail and electric-eye to improve the precision for cutting off the membrane materials.
Push-button control cabinet: a more humanized operation.
Independent feeding material shelf: the position of the material shelf is optional at will.
Electrical Appliance Configuration Specification
It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; also, it adopts the positioning module to ensure the casting label precise, rapid and stable.
Applicable Variety Types of Label
Various kinds of bottle types, for example: round bottle, square bottle, flat bottle, curve bottle and cup-shaped, etc.
Technical parameter
| Model | SLM-150 | SLM-250 |
| Input Power | 1.5KW | 3.0KW |
| Input Voltage | D3,380/220VAC | D3,380/220VAC |
| Production Efficiengcy | 150(Bottle/min) | 250(Bottle/min) |
| Size of Host Machine |
L2100mm x W850mm x H2000mm |
L2100mm x W850mm x H2000mm |
| Applicable Diameter of Bottle Body | D28mm-125mm | D28mm-125mm |
| Applicable Length of Lable | 30mm-250mm | 30mm-250mm |
| Applicable Thickness of Label | 0.03mm-0.13mm | 0.03mm-0.13mm |
|
Applicable Internal Diameter of Paper Tube |
(Free Adjustment) | (Free Adjustment) |
Two Head Casting Station Bottle Neck Labling Machine

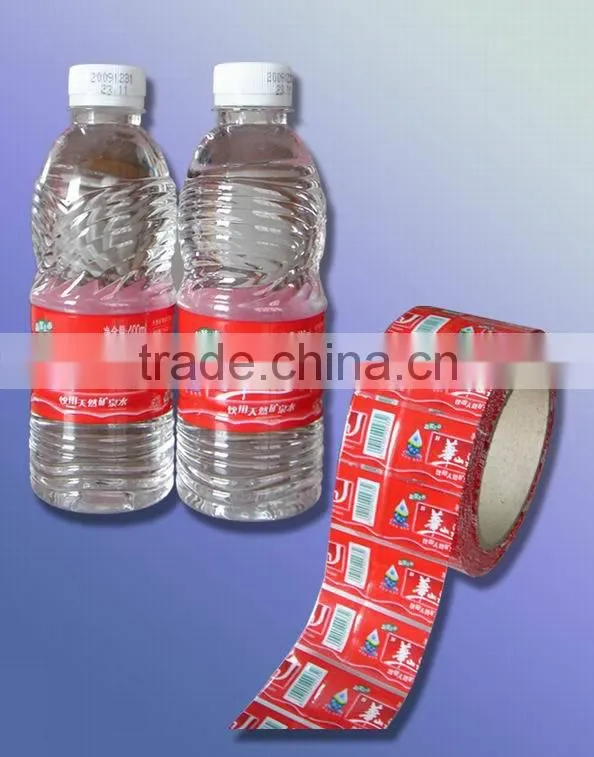

Suitable labels
Two Head Casting Station Bottle Neck Labling Machine
Two Head Casting Station Bottle Neck Labling Machine
What service U Tech Machine Co.,Ltd can offer you ?
• Well-trained & experienced staff are to answer all your inquiries in English and Chinese
• 24 hours for engineer response (all services part 5days in customer hand by Intl' courier).
• 2 Years guarantee
• Your business relationship with us will be confidential to any third party.
• Good after-sle service offered, please get back to us if you got any questions.
Two Head Casting Station Bottle Neck Labling Machine
Brief Introduction
Zhangjiagang U Tech Machine Co., Ltd. is a manufacturer of bottling machine and packing with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in beverage and other packing machine.
Our products include: liquid bottling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, machine protein drink, etc.), barreled bottling line (3-5 gallon) water treatment machines, labeling & packing machines, semi-automatic /full automatic PET bottle blowing machines, and injection molding machines, extrusion blow molding machines (PP/PE/PVC/PETG/PC...) and accessories for automation: leak tester machines, bottle bag packing machines, conveyor belts.

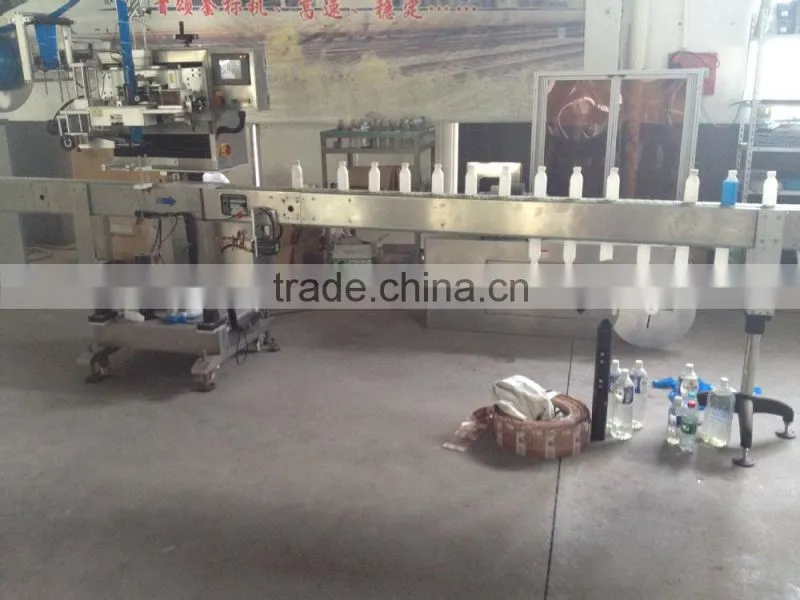

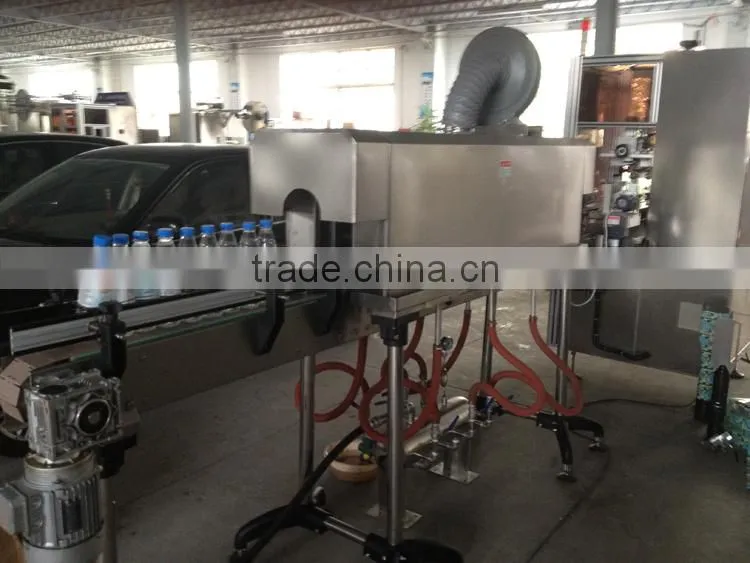

Our Workshop
Exhibition in Colombia
Our clients
Certification
Two Head Casting Station Bottle Neck Labling Machine
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service .
Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.
