New year promo water glass packing machine/ pet bottle filling machine 2000bph
1,Filling valve adopts high-accuracy mechanical filling valve, with mechanism no bottle, no vacuum.
2,Outside mounted mechanical filling valves. There is no spring or sealing parts inside the valve.
3,Twice vacuum, with high pressure foam stimulation device.
4,Adopt open type gear and gearbox combination transmission. Adopt variable frequency stepless timing with large adjustment scope.
5,The transmission system equips automatic lubrication with grease, high-efficiency, little noise and long-life.
6,While filling gas or beer, if bottle is broken due to quality problem, the filling valve will close automatically. It also equips automatic broken bottle washing device.
7,Equip fully stainless steel magnetic cap hopper. Cap sorting, discharge and feeing are all conveyed by magnetic force, and the cap is not easy to become distorted. Mass and smooth cap discharge. Reliable capping with automatic unloading function to lower the bottle loss rate.
8,Centering guide adopts double-leader type with pre-covering function. The bottle infeed and outfeed is table and reliable.
9,The carousel and capping head elevation is electrical to adapt to various bottles with different height.
10,The product level in the carousel is controlled by electric probe, with stable level and filling.
Model: |
BCGF8-8-3 |
BCGF16-12-6 |
BCGF18-18-6 |
BCGF24-24-8 |
BCGF32-32-10 |
capacity (500ml based) |
1500BPH |
3000BPH |
6000BPH |
10000BPH |
12000BPH |
Suitable bottle : |
Round bottle or square bottle |
||||
PET bottle: (mm) |
(Bottle Diameter):φ50-.φ110mm (Height):150-340mm |
||||
Suitable cap specification |
Crown cap |
||||
filling precision: |
≤±5mm |
||||
filling pressure:(Mpa) |
≤0.4Mpa |
||||
Machine power |
4.4 |
5.2 |
6.2 |
6.8 |
8 |
Machine size:(mm) |
Made to order |
2400*1965*2250 |
2680*2200*2250 |
3000*2200*2250 |
3200*2250*2500 |
weight: (kg) |
Made to order |
3500 |
4500 |
5500 |
6500 |

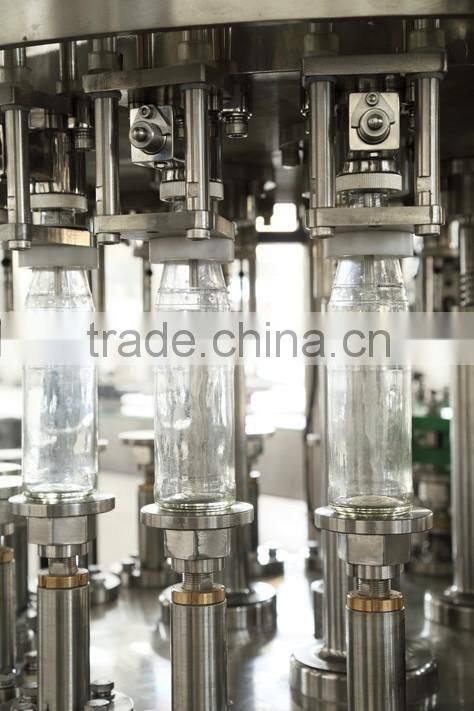

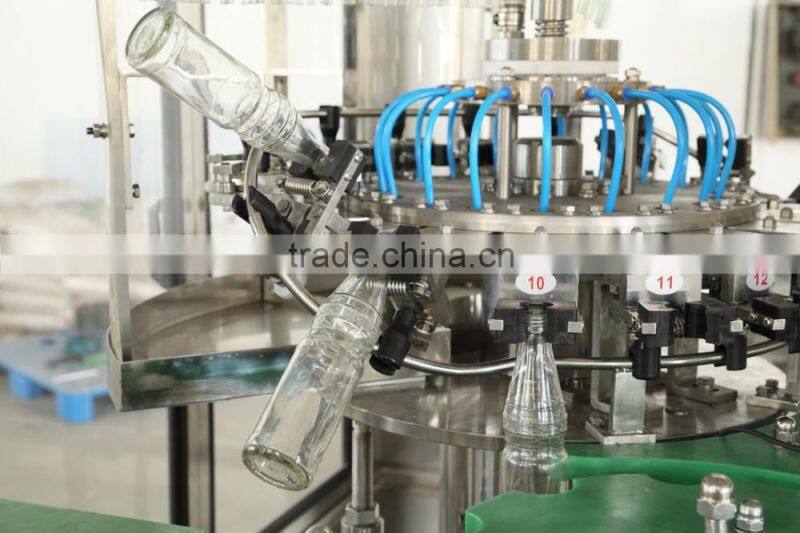

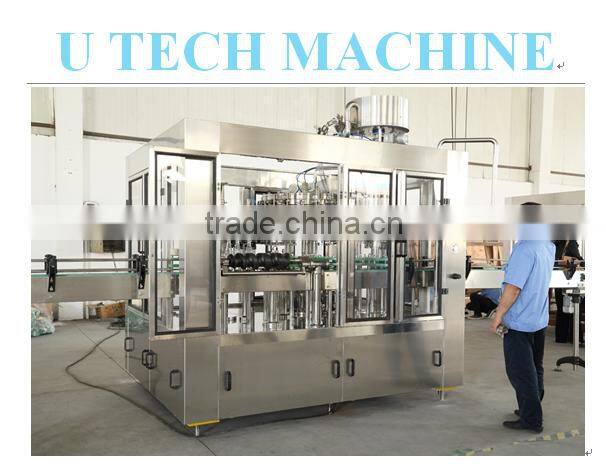

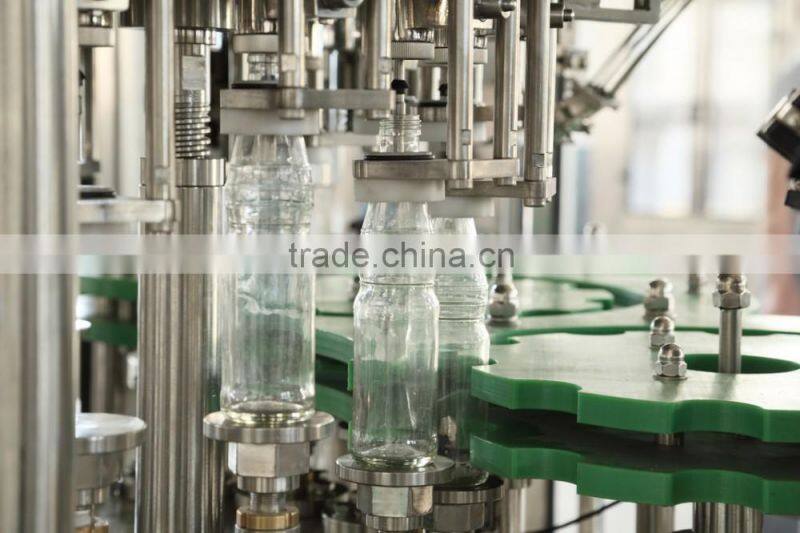

1) Photo of main machine
2) Control (Weinview, MITSHUBISHI, Siemens etc.)
l Touch Screen
l Programmable Logic Controller
l Electric parts
3) machine structure
NO. |
ITEM |
BRAND |
1 |
Main electronic parts |
SIEMENS |
2 |
Electric protection switch |
SIEMENS |
3 |
Circuit breaker |
SIEMENS |
4 |
PLC |
MITSUBISHI |
5 |
Touch screen |
SIEMENS |
6 |
Transducer |
MITSUBISHI |
7 |
Photoelectricity switch |
SIEMENS |
8 |
Pneumatic element |
FESTO |
New year promo water glass packing machine/ pet bottle filling machine 2000bph
Dear Importer, greetings from remote country CHINA. My name is Nemo working in U TECH MACHINE, our core competencies is water filling machine, we are one of COCA COLA company trustworthy vendor in China, having many years manufacturing experience in filling machine field, believe us we will provide best service and high quality machine to you, and hope we become good friends in future, if you need help in China, please feel free to contact me. here is my contact info:
Mob/Whats'up: 0086-187-8015-1923
