BCGD Series Glass Bottle Filling Machine
Specifications
1. glass bottle filling machine;
2. speed :2000BPH;
3. guarantee:2years
4. high quality with lifelong service
Small sized glass bottle carbonated water / wine bottling washing filling capping machine
Brief introduction of Small sized bottle carbonated water / wine washing filling capping machine:
BCGF18-18-6:
BCGF18-18-6 automatic carbonated water washing fillingcapping machine is used for GLASS bottles,and carbonated beverage of special equipment, unique clamping bottle filling technology, frequency control, automatic tank level control, equal pressure filling , etc. It adopts constant pressure into the fluid, and match the mixer perfectly, to avoid boiling, material inequality of production problems, contact with the material part of the materials are stainless steel 304,316 . pipe system control components are imported auxiliary equipment.
Technical parameter
Model |
Washing heads |
Filling heads |
Capping heads |
Capacity(b/h)500ml |
Motor power (KW) |
Overall dimension(mm) |
BFGF14-12-5 |
14 |
12 |
5 |
2000bph |
1.5KW |
2100x1400x2500 |
BFGF18-18-6 |
18 |
18 |
5 |
3000bph |
2.2KW |
2460x1720x2650 |
BFGF24-24-6 |
24 |
24 |
6 |
4000bph |
3KW |
3100x2100x2650 |
BFGF32-32-10 |
32 |
32 |
10 |
6000bph |
4KW |
3500x2500x2650 |
BFGF40-40-10 |
40 |
40 |
10 |
8000bph |
7.5KW |
4600x1800x2650 |
BFGF48-48-12 |
48 |
48 |
12 |
9000bph |
9.5KW |
5200x4500x3400 |
BFGF60-60-15 |
60 |
60 |
15 |
12000bph |
12KW |
6500x4500x3400 |
Main picture

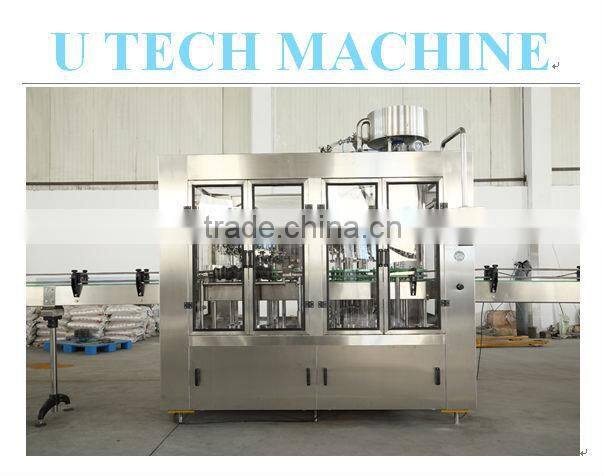

The whole machine

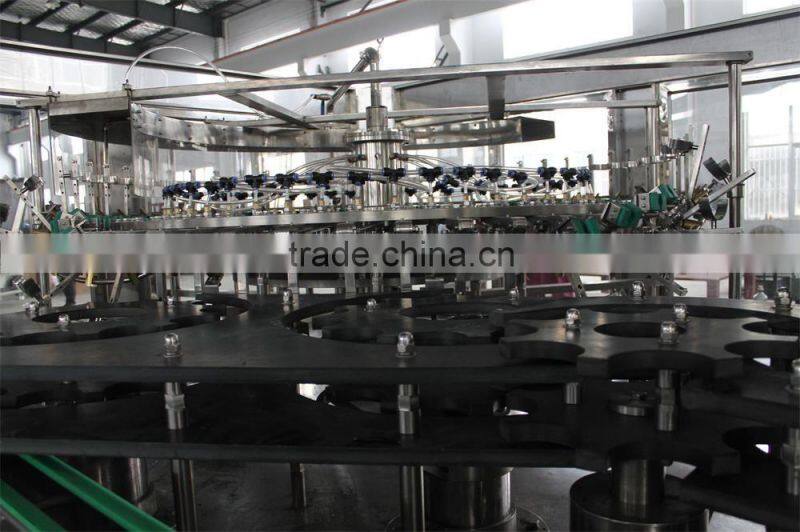

Washing part

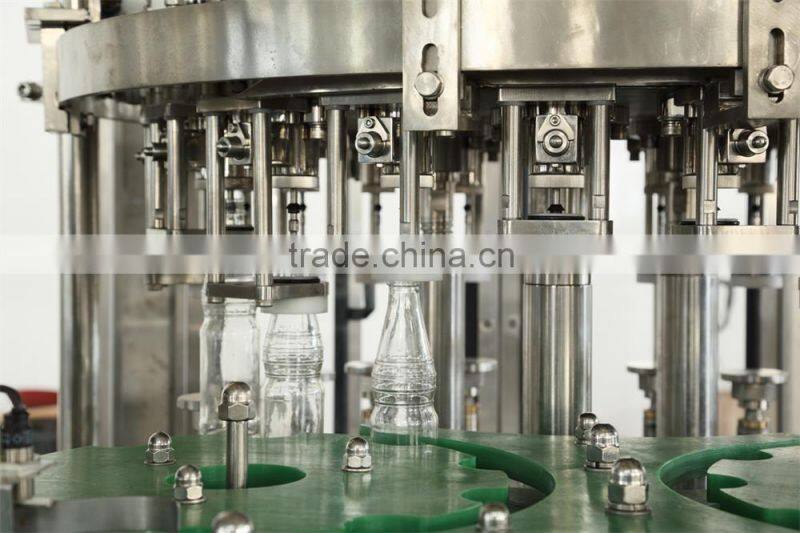

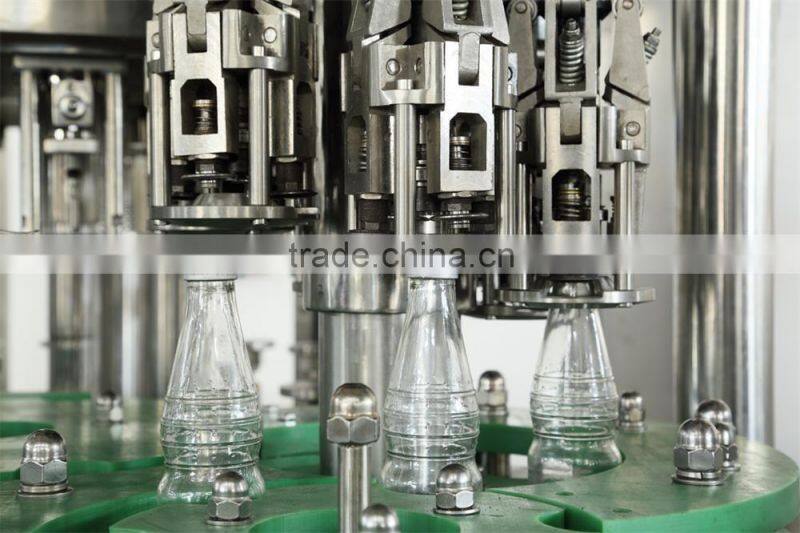

Filling part
Capping part
Small sized glass bottle carbonated water / wine bottling washing filling capping machine
Company Introduction:
Zhangjiagang U Tech Machine Co., Ltd. is a manufacturer of filling machine and packing with well-equipped testing facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs,
our products are extensively used in beverage and other packing equipment.
Our products include: liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc.),
barreled filling line (3-5 gallon) water treatment machines, labeling & packing machines, semi-automatic /full automatic PET bottle
blowing machines, and injection molding machines, extrusion blow molding machines
(PP/PE/PVC/PETG/PC...) and accessories for automation: leak tester machines, bottle bag packing machines, conveyor belts.
Certification

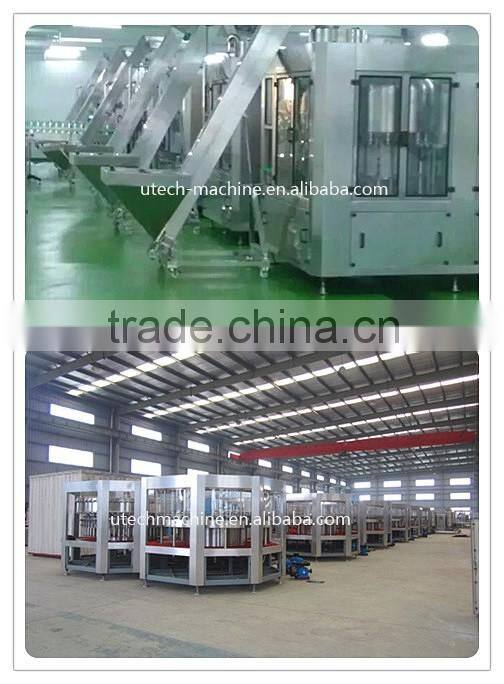

Factory
Small sized glass bottle carbonated water / wine bottling washing filling capping machine
• Well-trained & experienced staff are to answer all your inquiries in English and Chinese.
• 24 hours for engineer's response (all services part 5days in customer hand by Intl' courier).
• 2 Years guarantee
• Your business relationship with us will be confidential to any third party.
• Good after-sales service offered, please get back to us if you got any questions.
Welcome To Visit Zhangjiagang U Tech Machine Co.,Ltd!.
