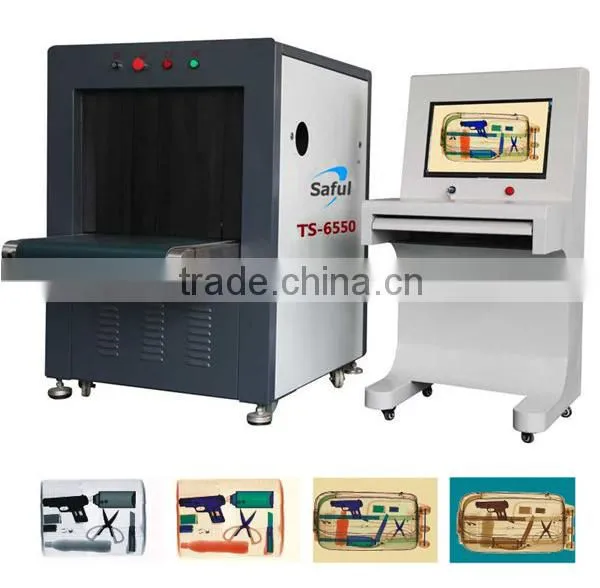

Airport baggage x-ray scanning machines TS-6550 for detecting contraband

 X-ray security screening equipment widely used in airports, railway stations, bus stations, government buildings, embassies, convention centers, exhibition centers, hotels, shopping malls, major events, post offices, schools, logistics, industrial inspection and other places.Model characteristics and configuration: All parts imported , clear image, strong penetrating power, long service life, using the latest international standards

Work Principle

X - ray security inspection equipment has the baggage handling, X ray source and control part, signal

acquisition and processing and the transmission part and the image processing part and electric control part. X - ray security inspection equipment will send checked baggage into the crawler channel to complete the

transfer with the help of the conveyor belt. Goods into the channel, detection device and relevant information will be sent to the control unit, the X - ray source emitting X rays by the control unit triggers. X ray through the collimator form very narrow fan beam,through the conveyor belt into the luggage on the detector, the X - ray

detector transfers received Xray into the electrical signal.The weak current signal is amplified to quantify ,

Transmitted through the universal serial bus to the industrial control computer for further processing, and afteroperation imaging processing complex to obtain high quality images.

 Dimension: 2040(L)*920(W)*1300(H)mm

Tunnel Size: 650(W)*500(H)mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 150kg

Rate of ray leakage: Less than 0.33 μ Gy/h

Resolution: Dia0.0787mm Metal Wire

Penetration: 43mm Steel

Film Safety: Guarantee ISO1600 Film

X-ray Generate model: Spellman from USA

X-ray Generate direct: Downward

X-ray Generate angle: 80 degree

X-ray Anode Voltage: 100-160Kv

X-ray Anode current: 0.4 -1.2mA

Cooling / Duty Cycle: Oil Cooling /100%

Operation temperature/Humidity:0-45degreeC/20%-95%(non-condensing)

Storage Temperature/Humidity:-20-60degreeC/20%-95%(non-condensing)

Operation Power: 220VAC(+/-10%), 50+/-3Hz

Power Consumption: 0.6 KW

Noise: Less than 56dB

Wooden Packing Size: 2140(L)*1020(W)*1400(H)mm

Overall weight: 450kgs

   We support OEM and ODM service, can print your logo according to your demand.
