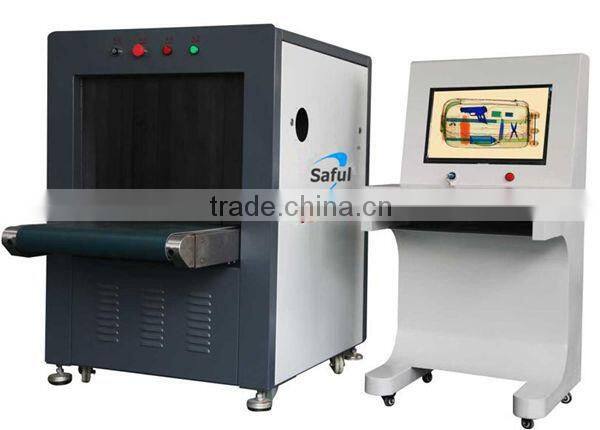

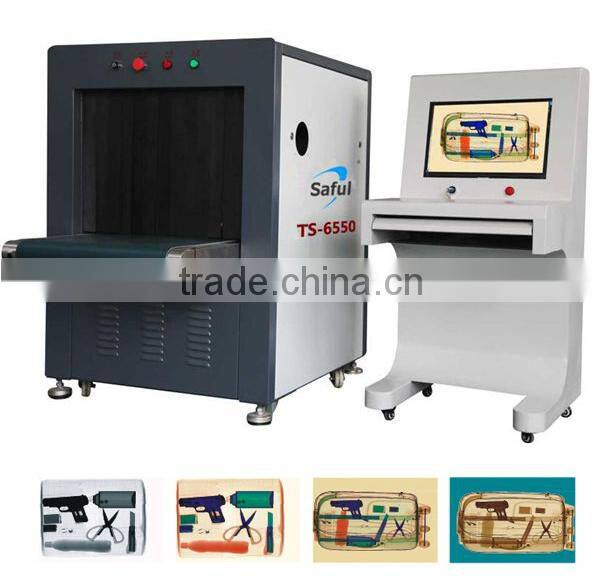

Latest international standards baggage handling airport x-ray security scanners TS-6550
X-ray security screening equipment widely used in airports, railway stations, bus stations, government buildings, embassies, convention centers, exhibition centers, hotels, shopping malls, major events, post offices, schools, logistics, industrial inspection and other places.Model characteristics and configuration: All parts imported , clear image, strong penetrating power, long service life, using the latest international standards
Work Principle
X - ray security inspection equipment has the baggage handling, X ray source and control part, signal
acquisition and processing and the transmission part and the image processing part and electric control part. X - ray security inspection equipment will send checked baggage into the crawler channel to complete the
transfer with the help of the conveyor belt. Goods into the channel, detection device and relevant information will be sent to the control unit, the X - ray source emitting X rays by the control unit triggers. X ray through the collimator form very narrow fan beam,through the conveyor belt into the luggage on the detector, the X - ray
detector transfers received Xray into the electrical signal.The weak current signal is amplified to quantify ,

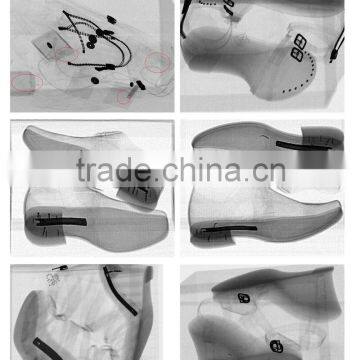

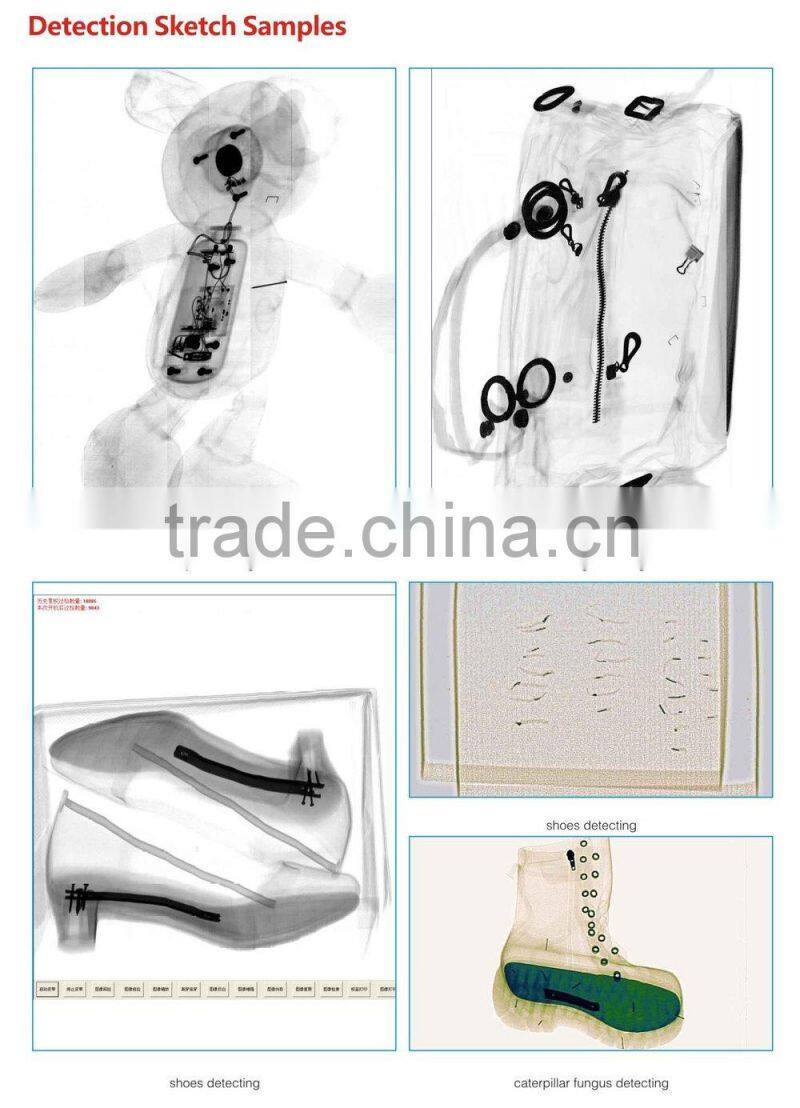

Transmitted through the universal serial bus to the industrial control computer for further processing, and afteroperation imaging processing complex to obtain high quality images.
Dimension: 2040(L)*920(W)*1300(H)mm
Tunnel Size: 650(W)*500(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 150kg
Rate of ray leakage: Less than 0.33 μ Gy/h
Resolution: Dia0.0787mm Metal Wire
Penetration: 43mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Generate model: Spellman from USA
X-ray Generate direct: Downward
X-ray Generate angle: 80 degree
X-ray Anode Voltage: 100-160Kv
X-ray Anode current: 0.4 -1.2mA
Cooling / Duty Cycle: Oil Cooling /100%
Operation temperature/Humidity:0-45degreeC/20%-95%(non-condensing)
Storage Temperature/Humidity:-20-60degreeC/20%-95%(non-condensing)
Operation Power: 220VAC(+/-10%), 50+/-3Hz
Power Consumption: 0.6 KW
Noise: Less than 56dB
Wooden Packing Size: 2140(L)*1020(W)*1400(H)mm
Overall weight: 450kgs
Packing details |
carton packing |
1 set/ctn | |
Packing Size: (L)2140*(W)1020*(H)1400mm | |
Gross Weight:450kg | |
Shipping methods |
By air (5-7days, most expensive) |
By express (3-7days, more expensive) | |
By sea (15-28days, cheapest) |
We support OEM and ODM service, can print your logo according to your demand.
