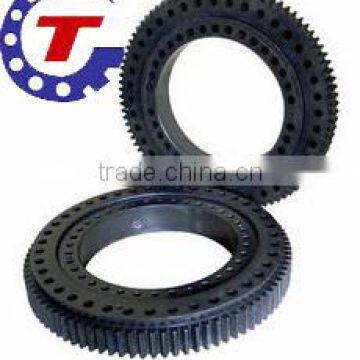

Chinese brand Truck Cranes slewing ring bearings

Name: Chinese brand Truck Cranes slewing ring bearings
Brand: HAOYANG
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 5000 Set / Sets per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:

Shandong, China

Brand Name:

HAOYANG

Model Number:

External geared

Product Description

Specifications

1.Spare parts used for TADANO cranes;
2.Material:42Crmo or 50Mn;
3.Raceway center diameter from 200mm to 4200mm.

Our Company provides four main types of slewing bearings, as shown in the following figure:

Single-row four-point contact ball series 01

Single-row crossed roller series 11

Double-row ball series 02

Tri-row pin roller series 13

Our Company can also design and manufacture other types of slewing bearings according to user’s needs, e.g. double-row ball slewing bearing, ball-pin combined slewing bearing, and light-weighted slewing bearing, etc.

For detailed drawing, please contact us directly.

Detailed Pictures

Production Process

Certification Show

Application

Ø History

l Headquarter founded in the 1980s as a state-owned enterprise, reformed to be one limited liability company in 2005.

l Start to produce slewing ring in 1995, have own brand name for slewing ring.

l Four subsidiaries belong to the headquarter: Ring mill plant, Slewing ring plant, Wheel hub plant, Beijing Titanhorse International Trade Dept.

Ø Company Scale

l Total area: 100,000sq.m

l Factory: 60,000sq.m

l Office: 7,000sq.m

l 700 employees

l Lines of product: forged raw rings (The raw material of slewing ring), Slewing rings, Wheel hub

Ø Production Scale

l Slewing ring 50,000pcs/month

l Ring/flange 8,000pcs/month

l Wheel hub 20,000pcs/month

Ø Unique Advantage

l 6 series of slewing ring, the raceway diameter ranges from 200-5,000mm

l Germany 5S standard site management and QC management engineering standards

l ISO9001:2008, OHSAS18001:1999, ISO14001:2004

Operation & Maintanence

Suitable lubrication is necessary for durability of raceway and gear. Lubricating grease improves capability and service life of slewing bearing, while working condition, e.g. load, temperature, speed, and vibration, determines lubricant selection.

Characteristics of recommended lubricant for slewing bearing:

² Lithium base grease

² Minimum viscosity of base oil: 150 mm2/S

² NLGI consistency grade: 2

² Anti-friction and extreme pressure additive

² Working temperature: -300 Ca+1200 C

² Four-ball test: Clinkering load STMD 2596 (NT24)>300

² Maximum NDM value (revolving speed x raceway center diameter)

ü For ball slewing bearing=60000

ü For pin roller slewing bearing=30000

Lubricating grease compatibility table

According to our experience, the lubricating greases listed in the following table are compatible with each other and with all parts of slewing bearing. Any other grease which is deemed compatible with any of the lubricating greases recommended by the Company is usable. However, molybdenum-containing disulphide M_OS₂is strictly prohibited.

Grease for raceway of slewing bearing		Lubricating grease designation			Grease for gear
	Aralub HLP2		ARAL	Aralub LFZ1
	Rhus L 474/2		MOTUL/bECHEM	Berulit GA 400
	Energrease LS-EP2		BP	EnergolwRL/GR 154 GS
	Grease LMX		CASTROL
	Epexa2/Epexelf2		ELF	Cardrexa DC1
	Beacon EP2		ESSO	Surret Fluid NX
	Mobilux EP2		MOBIL	Mobilgear OGL 007
	Retina EP2-Alvania EPLF2		SHELL	Malleus GL 205
	Multis EP2-Lical EP2		TOTAL FINA ELF	Ceran AD

This table is subject to update by manufacturer.

Removal of Common Faults

Difficult turning of slewing bearing

Every slewing bearing goes through strict inspection and test run before being released from plant, so all of them are acceptable products. As the slewing bearing has pre-tightening force on its sealing face and frictional force of the sealing face should be overcome for turning, it’s normal that certain starting moment is needed when it is turned.

In case of clamping stagnation in turning, the following method should be taken to remove the trouble:

Case	Cause analysis	Troubleshooting methods
Inflexible idling of new product	The slewing bearing has been stored for long time (e.g. over a half year) or the ambient temperature is low, which results in less liquidity of the grease inside, leading to inflexible operation. This case is prominent in cold regions and in winter.	After force is exerted, if it works well without any abnormal sound, it can serve for normal serve, but new grease should be filled until it is oozed from the seal. If operation is accompanied with any abnormal sound, check whether there is any damage caused during transport or storage and feedback the information to our after-sale service department for a solution.
Inflexible operation after installation	The mounting surface of the main machine does not match well with that of the slewing bearing, resulting in that after installation, axial clearance of the slewing bearing can’t compensate for deformation of the slewing bearing, raceway of the slewing bearing is distorted, and the roller moves with difficulty in raceway (sometimes with abnormal sound).	Rework mounting surface of the main machine to make it in compliance with the requirements; or treat the surface by filling in plastic or partial washer. If flatness is still unacceptable after completion of surface treatment, try to exchange for a slewing bearing with larger clearance.
	Bad gear engagement is caused by failure to adjust gear backlash according to radial top point of gear pitch circle (three teeth marked with green paint). Deformation is caused by compressing the slewing bearing at the top point, resulting in difficult turning or abnormal sound.	Adjust gear and pinion engagement and gear backlash again as required.
	Impurities are jammed in the gear and pinion.	Check and be sure that gear and pinion engagement is free of impurities.
Inflexible operation in use	The sealing strip is broken, resulting in entry of impurities into raceway.	Replace sealing strip or take effective sealing protection measures, e.g. installing guard plates.
	Failure to lubricate it with sufficient grease periodically according to the maintenance requirement, resulting in abnormal wear and tear of raceway.	Lubricate it with sufficient grease until grease is oozed out from the sealing strip. It’s noted that every oil cup should be oiled, and operation should be kept in oiling, if possible. If wear and tear is serious, the slewing bearing should be replaced. If you continue using it in short time, lubricate it with more amount of grease until grease overflows, so that the scrap iron is discharged as most as possible.
	Abnormal engagement between gear and pinion, with impurities or broken teeth	Remove impurities (if any); replace the slewing bearing, if there is any broken tooth.
