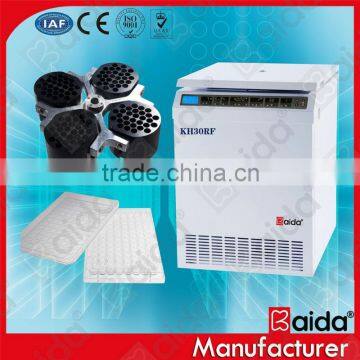

KH30RF console mode refrigerated centrifuge

Specifications

centrifuge
1.40 kinds self-defining operating modes
2.Rotor identification,LCD&LED display
3.Warranty 1 year
4.CE&ISO

centrifuge

KH30RF console mode refrigerated centrifuge



Advanced Control System, Excellent separation

Ten kinds of Accel/Decel modes, can be selected or directly set up the time of Accel/Decel; User can set up the operate parameter by themselves, to achieve the best centrifugal result.

Short running function, easy to diversification centrifugation.

Proprietary SCT speed control technical, high efficiency.

Proprietary SBT soft brake control technical, to avoid mix up and ensure get maximum specimen.



High Safety, Ease of use



Rotor identification, no need to select rotor number.

Over temperature, over speed, door and unbalanced protection.

Steel body, Stainless steel chamber, Steel Protective sleeve.

Can take the rotor with aerosol-tight lid for use with hazardous samples.



Friendly Display, Humanity Operate



Many pieces of LCD and LED display, the Program, Accel/Decel modes, RPM/RCF, Time, Temperature are all easy to set up.

Microprocessor control, operated data can be saved automatically, can start the instrument with RCF directly, can be store and use 40 kinds of self-defining operating modes directly by user-self.



Good parts, Reliable and longlasting



Brushless converter motor which has high torque, "SKF" supper speed bearing, Freon-free compressor from Europe.

Aerospace rubber for damping, super duralumin alloy from Aluminum Corporation of China Limited (CHALCO).



Universal, multifunctional

Can take Angle rotor for High Speed, and Swing rotor for Big capacity & Low Speed, widely used in several kinds of research and produce.



centrifuge Technical Parameter

Model	KH30R
Max Speed	22600r/min
Max Rcf	35555xg
Max Capacity	Angle Rotor: 1500ml,Swing Rotor: 3000ml
Speed Accuracy	±20r/min
Temperature Range	-20°C-+40°C
Temperature Accuracy	±1°C
Time Range	1s-99h59min59s
Power Supply	AC 220V 50Hz 18A
Noise	≤60dB
Dimension	800x700x400mm
Weight	110kg































centrifuge rotor

Model	Number	Capacity	Max Speed (r/min)	Max RCF(×g)	(mm) Dimension of tube
Angle Rotor	No.1	12×1.5ml	22600 r/min	35555×g	Φ10×42
	No.2	18×0.5mll	22600 r/min	35555×g	Φ8×32
	No.3	10×5ml	20000 r/min	27218×g	Φ14×54
	No.4	24×1.5 ml	18000 r/min	29362×g	Φ10×42
	No.5	12×10ml	18000 r/min	33293×g	Φ16×81
	No.6	6×30ml	16000 r/min	30400×g	Φ25×93.5
	No.7	6×50ml	15000 r/min	23131×g	Φ28×105
	No.8	4×100ml	14000 r/min	20000×g	Φ38×124
	No.9	32×1.5ml	14000 r/min	15558×g	Φ10×42
	No.10	8×8×1.5ml	13000r/min	12280×g	8 pcr tube
	No.11	6×100ml	12000r/min	14694×g	Φ38×124
	No.12	6×250ml	9000r/min	12429×g	Φ64×113
Microplate Rotor	No.13	2×2×96hole	4000 r/min	2300×g	Microplate Rotor
Swing Rotor	No.14	4×50ml/100ml	5500 r/min	5310×g	Φ38×124
	No.15	8×50/100ml	4000 r/min	2810×g	Φ38×124
	No.16	32×10ml/15ml	4000 r/min	2810×g	Φ16×85-118
	No.17	48×5ml	4000 r/min	2800×g	Blood collection tube
	No.18	80×5/7ml	4000 r/min	2800×g	Blood collection tube
	No.19	120×5/7ml	4000 r/min	3200×g	Blood collection tube
	No.20	4×250ml	4000 r/min	3500×g	Φ64×113
	No.21	4×500ml	4000 r/min	3580×g	Φ80×140
	No.22	4×750ml	4000 r/min	3580×g	Φ99×130



Remarks:     If you have any request of the centrifuge, please feel free to let us know. Your request will always draw our first attention.

Product photos

Microplate Rotor  2×2×96hole





angle rotor picture
