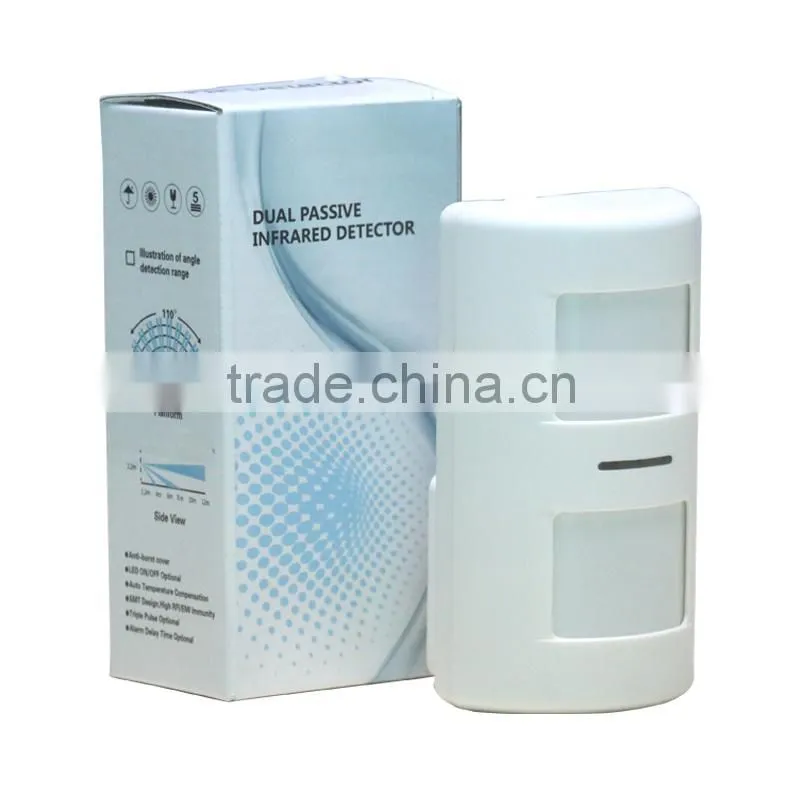

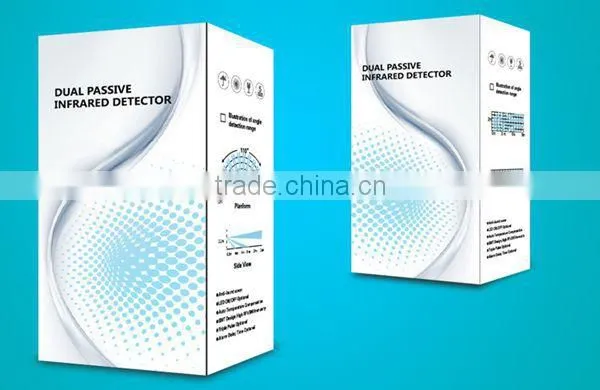

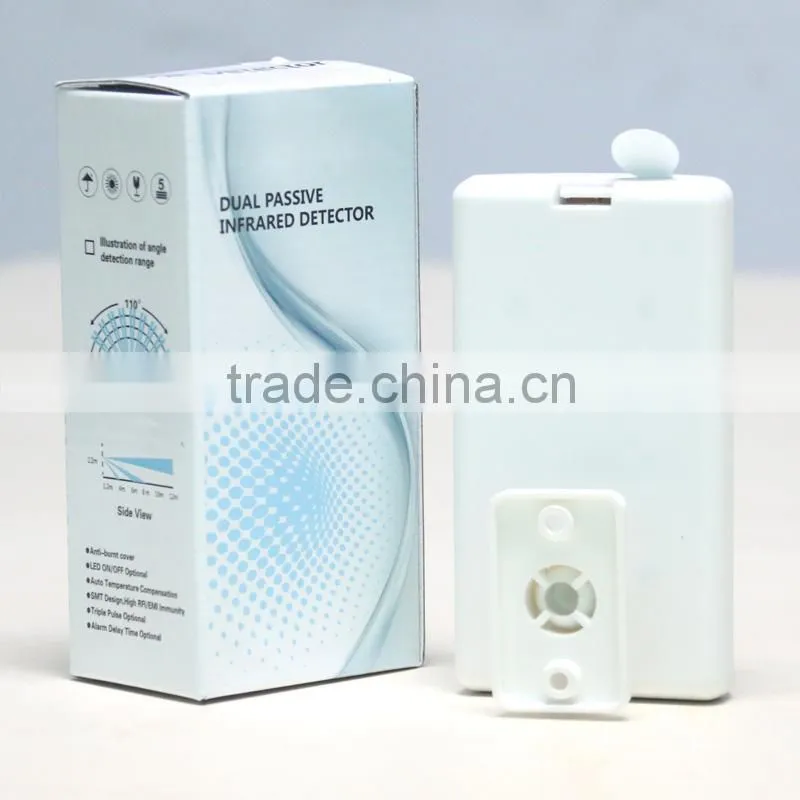

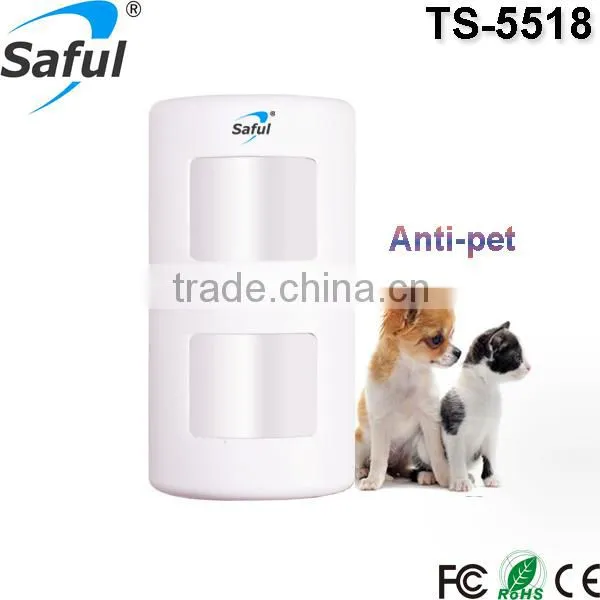

Help Center2015 Newest Pet Immunity Wireless Wide Angle PIR Motion Sensor Operated by DC3V
Related Products
-
Home,house,power Station,transportation,oil,coal,railway Usage GSM Alarm Smart Home Wireless GSM Alarm System With Wifi CameraNegotiableMOQ: 1 Set -
Cheapest !!! Factory Price Auto Dialer Home Security Burglar GSM Alarm System G3US$ 1 - 66MOQ: 1 Set
-
The Newest and Most Fashion Home Guard Gsm/sms Smart Home System Supporting 5 Wireless Socket and Alarm CallingNegotiableMOQ: 1 Set
-
Saful Brand G3 Quad Band 3g Security Sms Alert Alarm System With Rfid Tag Keypad for Arming/disarmingUS$ 1 - 66MOQ: 1 Set
-
Wireless Built-in Antenna Automatic Door Alarm Window Sensor Magnets DetectingUS$ 1.5 - 3MOQ: 100 Pieces
2015 newest wireless two-detecting side 315/433/868MHz Pir sensor long range motion detector for alarm
1.Duilt-in 2 newly-developed dual element passive infrared sensor unit;Intelligent MCU inside, increased anti-light interference and eliminate false alarm;
2.Adopts Pet Immunity technology and specialized optical lens for eliminate false alarm;
3.Microcontroller temperature analysis and Automatic temperature compensation for best summertime detection;
4.Tightly-mated bug guard to protect the sensor optics from insects, spiders and dust;
5.Internal Wireless Antenna, long distance transmission;
6.Wireless transmitting digital signal to control panel;
7.Learning code, easy to assign to the alarm panels;
8.SMT adopted, RF and EMI Immunity;
9.Low power consumption.2 pcs AAA battery
10.Low power alarm;
Operating Voltage |
3VDC 2pcs AAAbattery |
Detection Range |
Vertical angle 60degree, Horizontal angle 110 degree, 12m at 20°C. |
Standby Current |
less than 100uA |
Alarm Current |
less than 9.5mA |
RF Immunity |
> 30V/m 0.1-500MHz |
Sensitivity |
> 3300V/W |
Noise(Vp-p) |
<200mV, (mVp-p)(25°C) |
Anti white light |
>10000Lux |
Transmitting Freq. |
315/433/868MHz |
Transmitting Distance |
minimum 100m( in the open area) |
Pet Immunity |
≤25Kg |
Temperature Range |
-20°C ~ +55°C |
Relative Humidity |
95% (25 °C) |

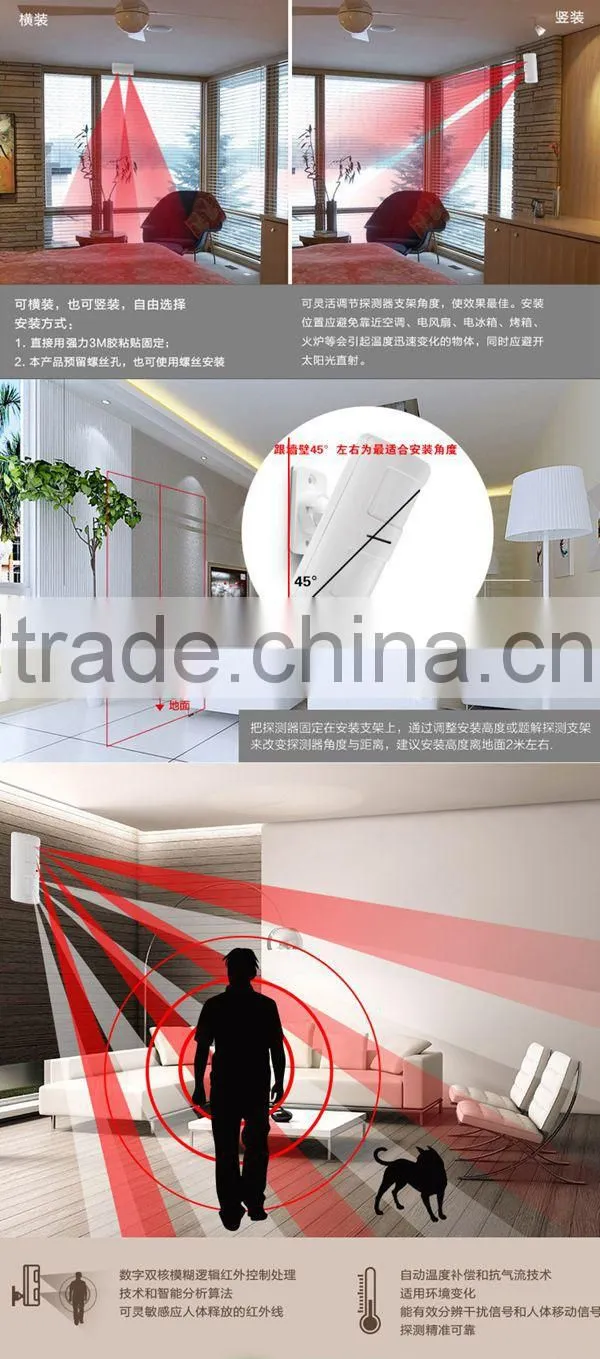

Installation Mode |
Wall mounted by bracket |
Battery |
2*1.5V AAA battery |
Installation Height |
1.8~2.4m |
Wireless PIR Sensor *1
AAA Battery *2
Mounting Bracket *1
Screw head *2pcs
User Manual (English) *1
