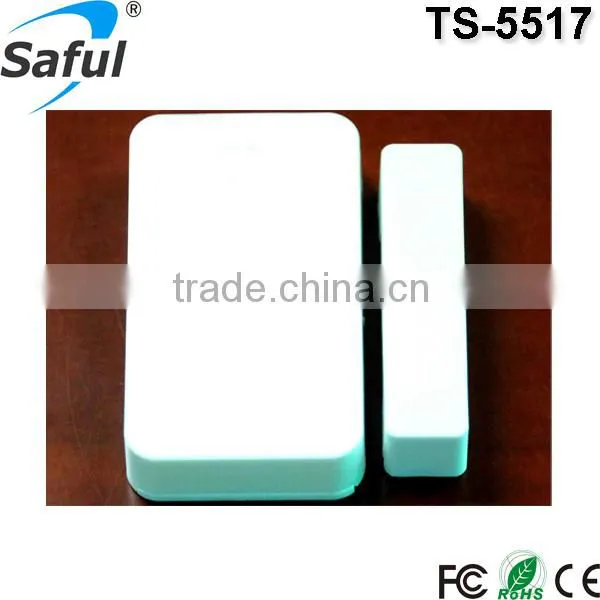

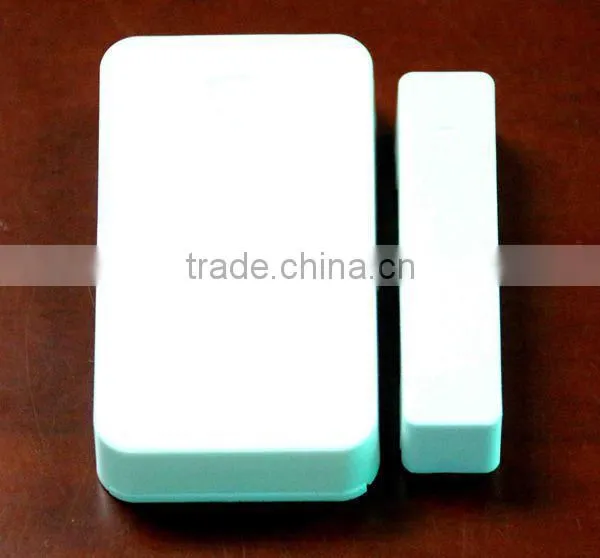

2015 the newest 315MHZ/433Mhz/868MHz built-in antenna wireless door/window sensor
1.easy to install
2.Can work individually
3.can work with other alarm system
4.This is separated wireless door sensors, magnetic control,inner antenna
5.wireless transmit are separatad .
6.It can be installated in doors ,windows and other special places.
Operating voltage |
DC12V |
Standby current |
≤5uA |
Transmitting current |
≤15mA |
Battery life |
1 to 2 years |
Transmitting Freq. |
315MHz,433MHz or 868MHz |
Sending distance |
>100m (in the open area) |
Code mode |
fixed code, roll code |
Door detector (Magnetic) installed on the active door, clean the door’s corresponding position firstly,
remove the wireless door detector, stick the double-sided adhesive paste at the bottom of door detector, door detector’s installation should note the following:
1.Door detector A (transmitter) and door detector B (magnet) should be installed separately,
that the transmitter is mounted on a fixed frame, and the magnet should be mounted on the door
activities (transmitter side position lights should correspond with magnet )
2.magnet and transmitter should be aligned up and down well ,the distance between both should not exceed
10mm.
3.In the time of opening door after installation,door detector’s indicator will flash 1time/s, it expresses the
installation is right.
4.Door detector No 1. indicator flashes one time each second represents alarm prompt, No 2. indicator light
on all the time express battery not enough power.
5 Door detector’s A, B can also be reinforced with screws.
1* wireless Emitter
1* wireless Strip
1* 12V battery
