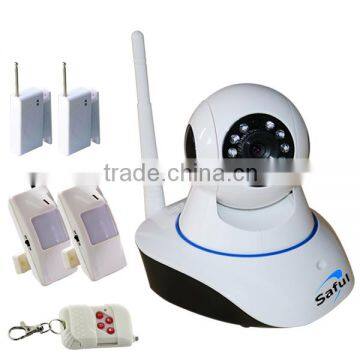

Help CenterWireless ip Camera Input Alarm With Pir Sensor and Remote Control
Related Products
-
2015 the Cheapest HD 3g Wireless Home 360 Degree Security Alarm Camera SystemUS$ 29.00 - 29.00MOQ: 1 Set -
DIY Wireless Ios/android Quad Band Gsm Water Leakage Panic Alarm System With Wifi CameraUS$ 1 - 90MOQ: 1 Set
-
315Mhz/433Mhz Wireless Portable Panic Button for Emergency AlarmUS$ 1 - 2MOQ: 10 Pieces
-
315/433/868MHz Built-in Antenna Wireless Gap Sensor for Any Kind of Alarm SystemUS$ 1.5 - 3MOQ: 100 Pieces
-
Big Christmas Promotion DIY Gsm Wireless Home Burglar Security Alarm System/alarm Gsm With 868MHz FrequencyNegotiableMOQ: 1 Set
HD wireless P2P wifi home burglar camera alarm system

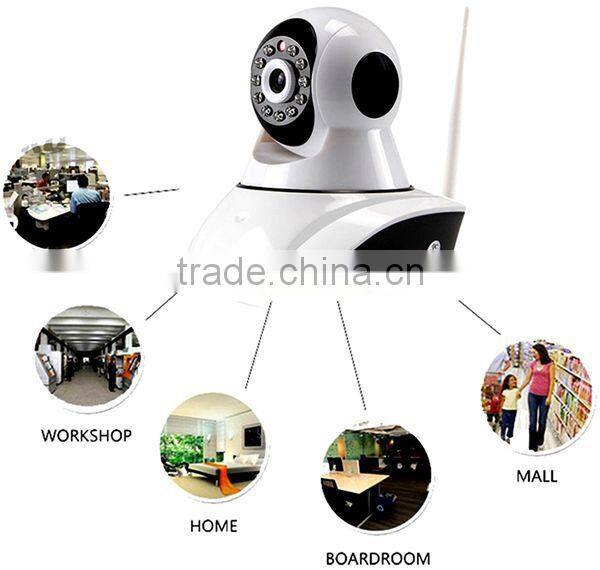

It is suitable forfamily,offices and chain store monitoring.It is the latest version.
Introduction
> H.264 1/4" Color CMOS Sensor 1,000k Pixels
> support 1,4 and 9Ch image display and full screen view on web browser

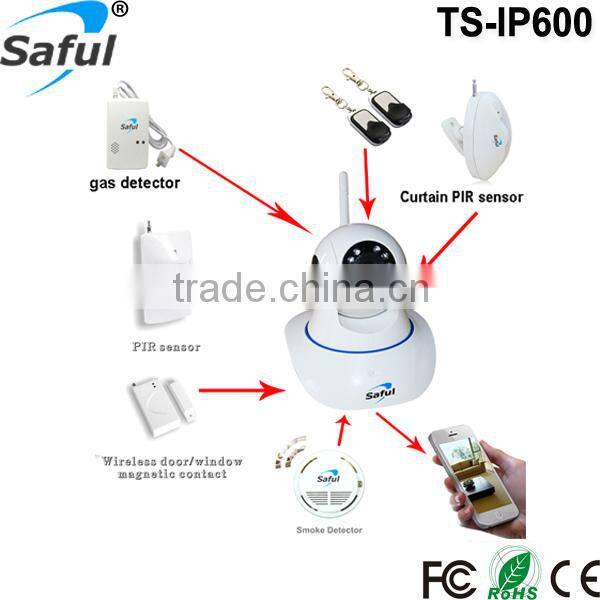

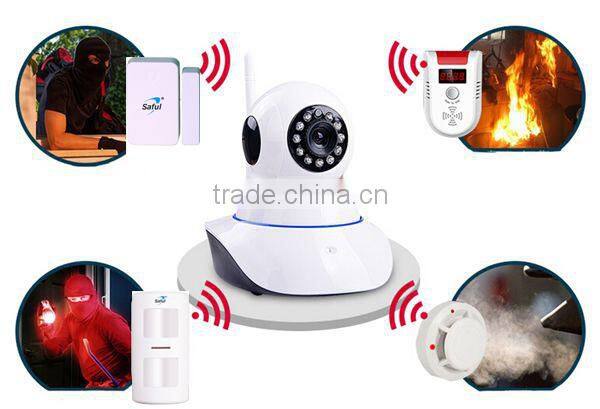

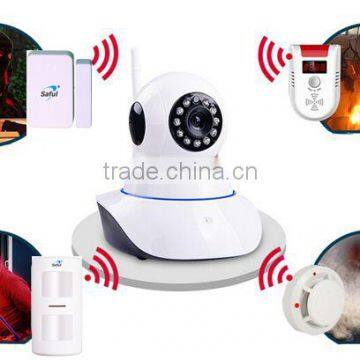

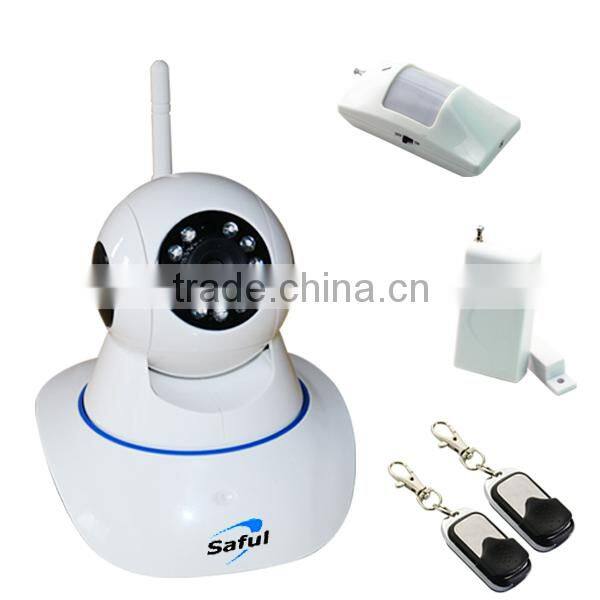

> Supporting 8 pcs remote control,64 group of wireless sensor alarm
> Maximum support 32GTF Card
>High image and video quality,Two-way audio monitoring
>P2P(Plug and Play)technology,penetration degree can be 99%,applicable toany
>Allow remote Pan/Tilt control (Pan:350 Tilt:120)
> mechanical IR-Cut device offers outstanding day/night performance, great color;

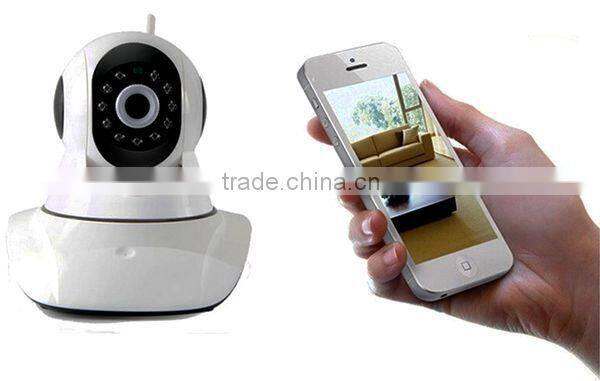

>Mobile Monitor: iPhone(APP Store),Android
>(1280*720) Pixels 720P/D1/VGA/QVGA/QCIF,dual stream
>Allow remote viewing and record from anywhere anytime
>Wi-Fi compliant with wireless standards IEEE 802.11b/g/n
>support TCP/IP, ONVIF ,RTSP ,P2P SMTP, HTTP, FTP, PPPoE and other Internet related protocols;
> color:white /Black
> Certification: TELEC CE,FCC,ROHS
> Power:DC 5V2

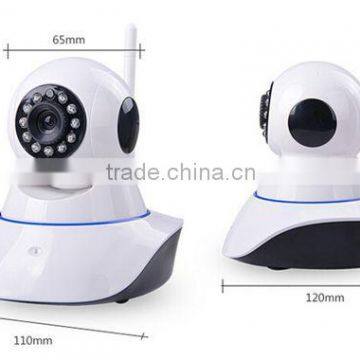

> Package size:179*120*200mm(L*W*H)
> Weight:Gross:660g (Note: in kind prevail)
> Carton size:62*41.5*36.5CM (Qty:20pcs) (Weight: 13.2kg)
Model TS-IP600 | ||
Features |
System security |
Account, password authority management |
Local Storage |

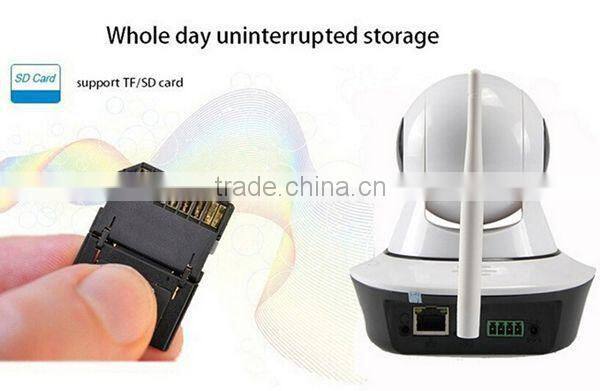

support up to 32GB MicroSD card,24-hour loop recording. |
|
Monitor Advantage |
Support PC computer monitoring, smartphone multi-pic view. |
|
P2P |
Plug and Play,99% penetration rate, Easy to setup: 1. connect the network cable and power adapter, 2.install APP, scan UID code to add camera. 3.Click online camera to view the camera. |
|
QR Code Scanning. |
UID scan technology applied,easy to operate, and highly confidential. |
|
Super Client |
1,4,9,16,25,36, 64,81-channel central management software, no user number limitation , centralized surveillance, remote record and playback, alarm email ect. |
|
System |
OS |
Embedded Linux OS |
Control protocol |
ONVIF 2.0 protocol, high interoperability |
|
Video coding |
Multi stream:720P@30fps+VGA@30fps+QVGA@30fps+720P @1fsJPEG capture |
|
Bit Rate |
CBR/VBR, output bit rate range:128-4096kbps |
|
Processor |
Hi processor, built in ARM926 @Max. 440MHz and high-speed video co-processor |
|
Video |
Compression Format |
H.264 baseline profile@levels:3.1/Motion-JPEG |
Frame rate |
30fps/24fps(720p) |
|
Resolution |
720P(1280*720), VGA(640*480), QVGA(320*240) |
|
Sensor |
1/4 720p Progressive CMOS sensor |
|
Minimum illumination |
0.8Lux/F1.4(colourful model ),0.3Lux/F1.(B&W mode) |
|
SNR |
≥39dB |
|
IR control |
IR turned on:night vision view enabled, infrared Ray, ICR auto detect.IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode. |
|
Electronic shutter |
1/50s(1/60s)-1/100, 000s |
|
CMOS |
support AWB, AGC, BLC |
|
Lens/viewing angle |
3.6mm/ F1.4/56.14 |
|
Night Vision |
Night vision |
Dual IR-CUT Filter auto switch, 12pcs 850nm 5mm LED,10m IR distance |
Audio |
Compression format |
ADPCM/32kbps |
Input |
1 Channel Line in (3.5mm phone jack) &1 Channel Internal -48dB Microphone |
|
Output |
1 Channel Line out (3.5mm phone jack)&Internal speaker(8Ω1W) |
|
|
P/T Network |
P/T |
Pan:355,Tilt:120 |
network interface |
10Base-T/100Base-TX Ethernet interface |
|
Network Protocol |
TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,RTSP,P2P,etc. |
|
wireless network security |
WPS encryption |
|
Online visitor |
Support 4 online visitors simutaneoursly |
|
WIFI |
WIFI 802.11 b/g/n |
|
Others |
housing material |
engineering plastics |
Application environment |
Indoor |
|
Temperature |
-10-50 |
|
Package size |
179×120×200mm (L*W*H) |
|
Weight |
Gross Weight:755g(Note: in kind prevail) |
|
Alarm |
Motion Detection |
Support motion detecting |
Certificate |
Certificate |
TELEC FCC CE RoHS |

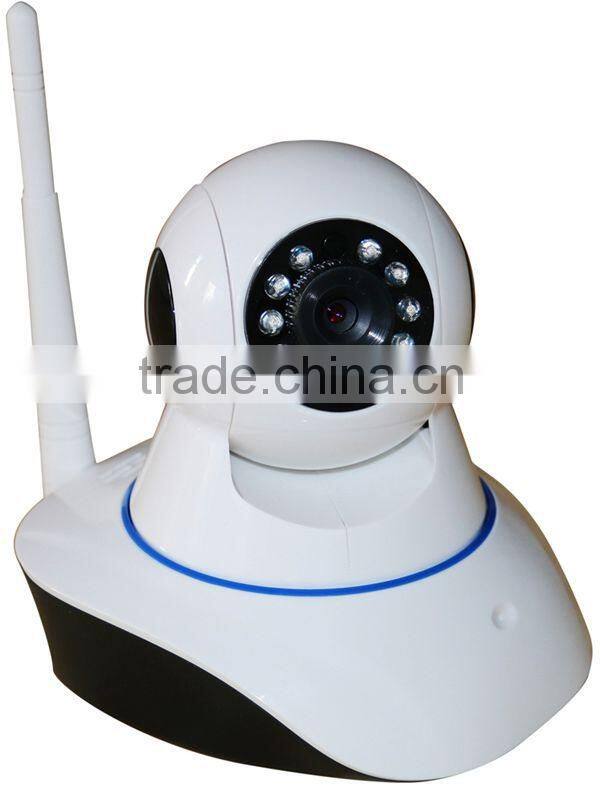

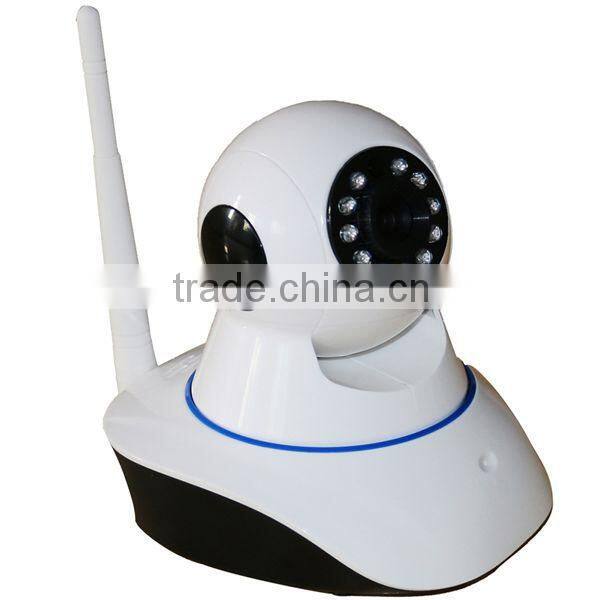

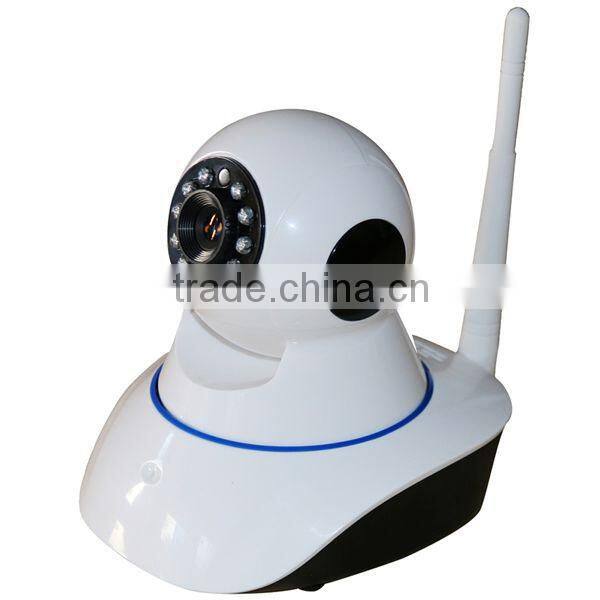

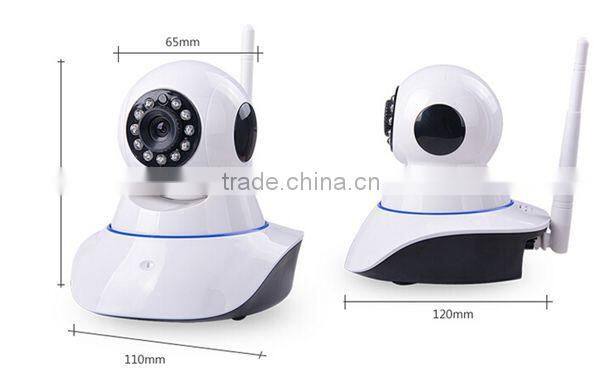

Pictures show

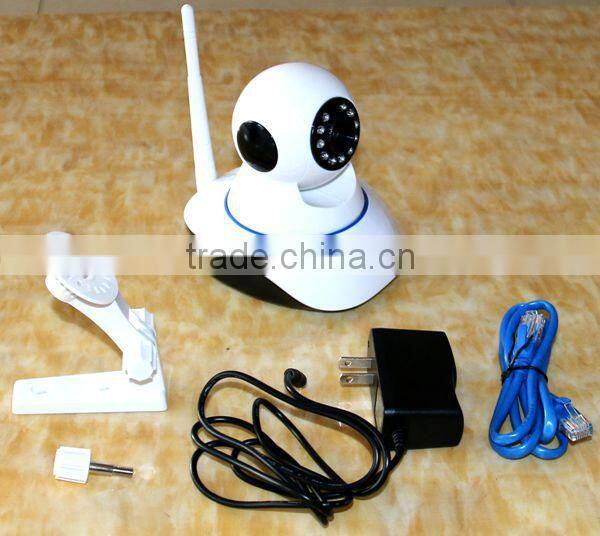

Package list
1 x IP Camera
1 x User Manual

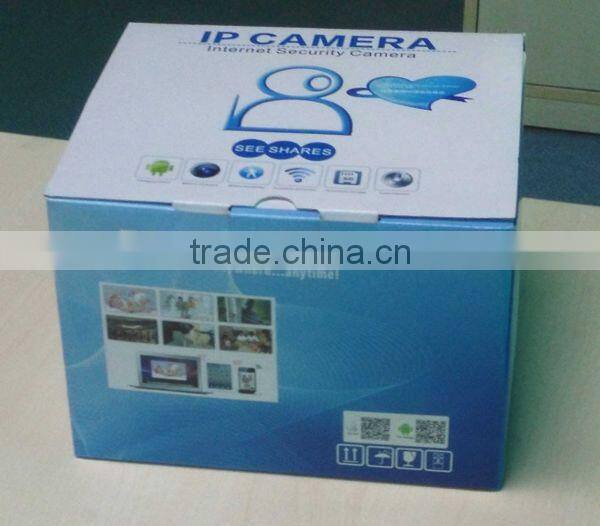

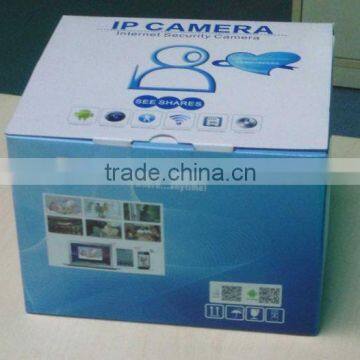

1 x Color Box.
1 x Power Adapter(US/UK/AU/EU optional)
1 x Network Cable
