Gas And Oil Exploration High Precision Geophone
Negotiable
MOQ: 48 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Geophone Kaida
Model Number:
Magnetic suspension geophone
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Hunan, China
Brand Name
Geophone Kaida
Model Number
Magnetic suspension geophone
Power
Electronic
Usage
Other, geological prospecting
Specifications
High precision,Lighter & Easily movable,
Very sensible,
Novel Geophones for oil and gas exploration vibration monitoring
This geophones for oil and gas exploration and vibration monitoring, it is on the basis of the principle of magnetic suspension. And it is lighter, easy to move and high precision.
Because no spring is needed in the magnetic suspension geophones, the novel geophone is very sensible and covers a wide frequency range of monitoring. One magnetic suspension sensor is capable of replacing parallel and series combinations of several electromagnetic geophones. The technical parameters are listed as followings:
Resonance frequency: 3.2 (Hz)
Probing frequency region: 4-450 (Hz)
Velocity sensitivity: 225 (V/ms-1)
Damping ratio: 0.4
Nonlinearity: <0.2%
Output impedance: 5350 (Ω)
Size: Φ50×168 (mm)
Wight: 625 (g).

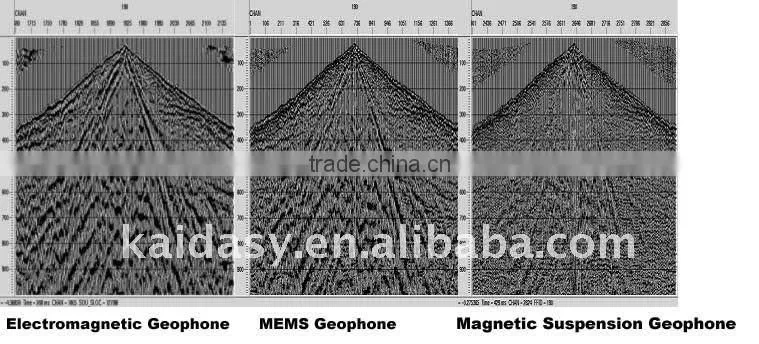

Geophones Comparison chart
