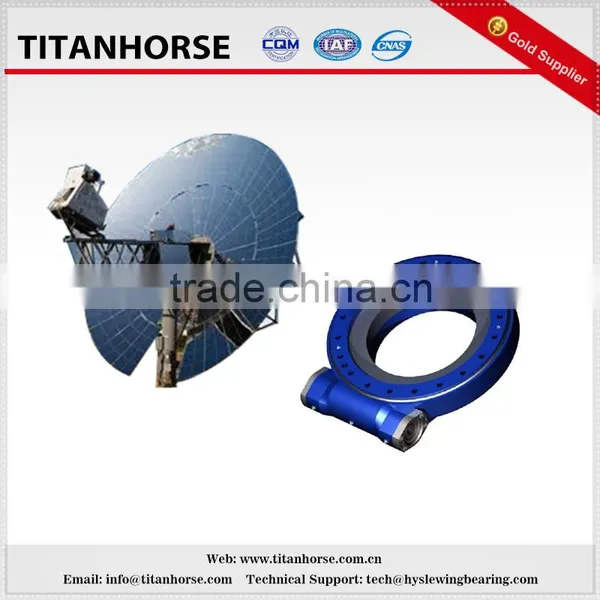

Titanhorse 9 Inch Slewing Drive With Stirling Motor for Dish Solar Tracker System

Titanhorse 9 Inch Slewing Drive With Stirling Motor for Dish Solar Tracker System thumbnail-1
Titanhorse 9 Inch Slewing Drive With Stirling Motor for Dish Solar Tracker System photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Gearing Arrangement:
Worm
Output Torque:
6.5 KNm, 6.5 KNm
Rated Power:
0.12~200kw
Contact Supplier Request Quote Chat Now
Beijing Titanhorse Industry & Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Gearing Arrangement Worm
Output Torque 6.5 KNm, 6.5 KNm
Rated Power 0.12~200kw
Input Speed 2000rpm
Output Speed 0.12rpm
Place of Origin Beijing, China
Model Number 9 inch
Brand Name TITANHORSE
Brief
  • Own work-shop for slewing bearing and slewing drive 10000 sq.m
  • Production Scale: 5000pcs/Month
  • 5S management system to improve the worker efficiency and ensure the products quality
  • 8 series of slewing drive can be provided by us, size range from 3 inch to 25 inch.
  • Single axis slewing drive series, double axis slewing drive series, vertical slewing drive series, single worm slewing drive, double-worm slewing drive, open hoursing slewing drive, worm gear slewing drive, spur gear slewing drive.
  • Slewing drive or slewing bearing's application:
  •                       1. Industrial usage, to achieve the goal that control and automatic ratation
  •                       2. Solar energy, its designed to improve the power generation efficiency
  • Own the ability of designing customized solution for customer, OEM, please feel free to contact with your porjects.
  • Certificated by ISO9001,  ISO 14001, OHSAS 18001,
Internal Structure

Friendship Recommendation

  • Vertical installation

It is advised to mount the slewing drives referring to attached drawing upside in solar applications for better protection.

For other applications, the mounting directions shall be based on the evaluation of the protection level and it shall be better for better protection.

  • Horizontal installation

It is advised to mount the slewing drives upside down on the azimuth axis in solar applications for better protection and add protection for the elevation axis.

For other applications, the mounting directions shall be based on the evaluation of the protection level and it shall be better for better protection.



Product's Parameters
Brand  Titanhorse
Model DA7 (7 inch dual axis slewing drive)
Rated Output Speed  0.04rpm
Rated Ouput Torque  722.7 N.m
Output Torque 2600N.m
Tilting Moment Torque(Max.) 13500 N.m
Holding Torque 10400 N.m
Static Axial Load 133 kN
Static Radial Load  53 kN
Dynamic Axial Load  32 kN
Dynamic Radial Load  28 kN
Ratio Of Worm Gear  73:1
Tracking Precision  <0.2°
Application  solar tracker,CPV, PV,CSP, antenna, automatic arm, construction machinery, Rader, Satellite, conveying equipments, transportation machinery etc.
Motor  DC(12v,24v,48v) AC(110V,220V,230V,380V,420V) Hydraulic Motor, Stepper Motor etc.
Life-time  25-30 years
Materials  42Crmo/ 50Mn
Seal  Grease Seal
Colour according to your requirements
Production Flow

 Motor

Packaging & Shipping



Product Uses
