Specifications
1.Usage:spare parts for solar tracker or engineering machinery etc2.Axis: single/dual axis
3.Size:from 3 inch to 25 inch
Brief Introduction

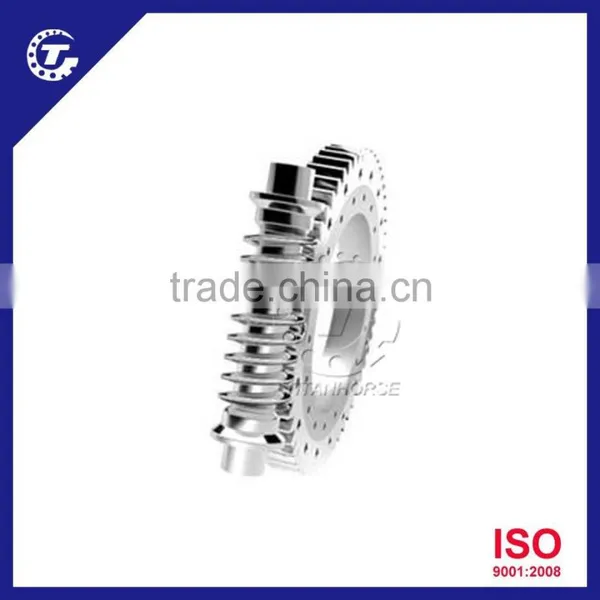

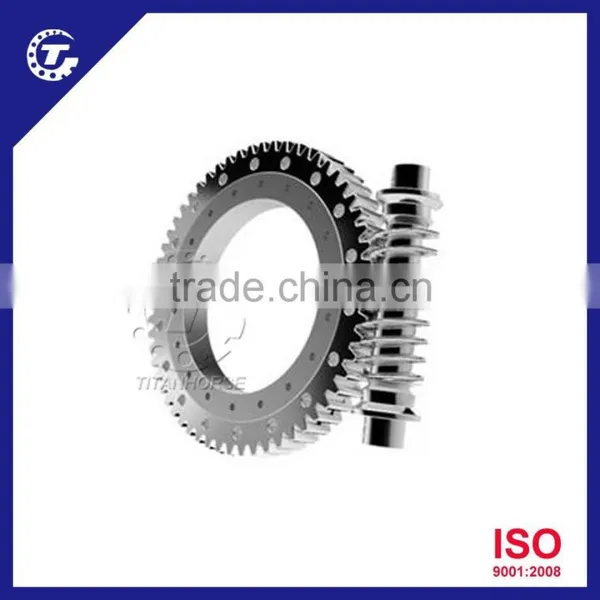

Hourglass worm: Compare with traditional worm, hourglass worm can withstand a survivability load that
is four to nine times greater.As the special hourglass shape of the drive allows more teeth to be engaged
at one time,enabling much higher torque endurance.It can increase the durability, precision,and efficiency
and maximum load capacity in a compact design.
About Motors
Brief Selection Sheet
|
Type Slewing Drive data |
3’’ |
5’’ |
7’’ |
9’’ |
12’’ |
14’’ |
17’’ |
21’’ |
25’’ |
Rated output torque/kN.m |
0.4 |
0.6 |
1 |
6.5 |
7.5 |
8 |
10 |
15 |
18 |
Tilting moment torque/kN.m |
1.1 |
1.8 |
13.5 |
33.9 |
54.3 |
67.8 |
135.6 |
203 |
271 |
Static load rating, axial/kN |
30 |
76 |
133 |
338 |
475 |
555 |
970 |
1598 |
2360 |
Static load rating, radial/kN |
16.6 |
22.6 |
53 |
135 |
190 |
222 |
390 |
640 |
945 |
Dynamic load rating, axial/kN |
9.6 |
13.8 |
32 |
81 |
114 |
133 |
235 |
385 |
590 |
Dynamic load rating, radial/kN |
8.4 |
11.8 |
28 |
71 |
100 |
17 |
205 |
335 |
470 |
Gear ratio |
62:1 |
62:1 |
73:1 |
61:1 |
78:1 |
85:1 |
102:1 |
125:1 |
150:1 |
Self-locking gears |
yes |
yes |
yes |
yes |
yes |
yes |
yes |
yes |
yes |
Weight/ kg |
12 |
20 |
21 |
49 |
61 |
64 |
105 |
149 |
204 |
Suitable Panel Area/ m2 |
3-5 |
6-9 |
10-17 |
18-30 |
31-45 |
46-60 |
61-95 |
96-120 |
120-165 |
Photos Show
Ø History
l Headquarter founded in the 1980s as a state-owned enterprise, reformed to be one limited liability company in 2005.
l Start to produce slewing ring in 1995, have own brand name for slewing ring.
l Four subsidiaries belong to the headquarter: Ring mill plant, Slewing ring plant, Wheel hub plant, Beijing Titanhorse International Trade Dept.
Ø Company Scale
l Total area: 100,000sq.m
l Factory: 60,000sq.m
l Office: 7,000sq.m
l 700 employees
l Lines of product: forged raw rings (The raw material of slewing ring), Slewing rings, Wheel hub
Ø Production Scale
l Slewing ring 50,000pcs/month
l Ring/flange 8,000pcs/month
l Wheel hub 20,000pcs/month
Ø Unique Advantage
l 6 series of slewing ring, the raceway diameter ranges from 200-5,000mm
l Germany 5S standard site management and QC management engineering standards
l ISO9001:2008, OHSAS18001:1999, ISO14001:2004
Certification
Package
FAQ |
Q1: I want to buy your products, how can I pay? |
Sammie: You can pay via T/T(30%+70%), L/C , WEST UNION , etc. |
Q2: How can you guarantee the quality? |
Sammie: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection. |
Q3: How we select models and specifications? |
Sammie: You can email us the series code (for example: 3 inch dual axis slewing drive) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice. |
Q4: If we don't find what we want on your website, what should we do? |
|
Sammie : We offer three options: 1, You can email us the pictures, drawings or descriptions details. We will try to design your products on the basis of our standard models. 2, Our R&D department is professional for OEM/ODM products by drawing/samples, you can send us samples, we do customized design for your bulk purchasing. 3, We can develop new products if they have good market. We have already developed many items for special using successful, such as special gearbox for agitator, cement conveyor, shoes machines and so on. |
Q5: Can we buy 1 pc of each item for quality testing? |
Sammie : Yes, we are glad to accept trial order for quality testing |
Q6: How about your product delivery time? |
Sammie : Normally it takes 15 days for a trial order. And for large quantity orders, it is 40 days. |
