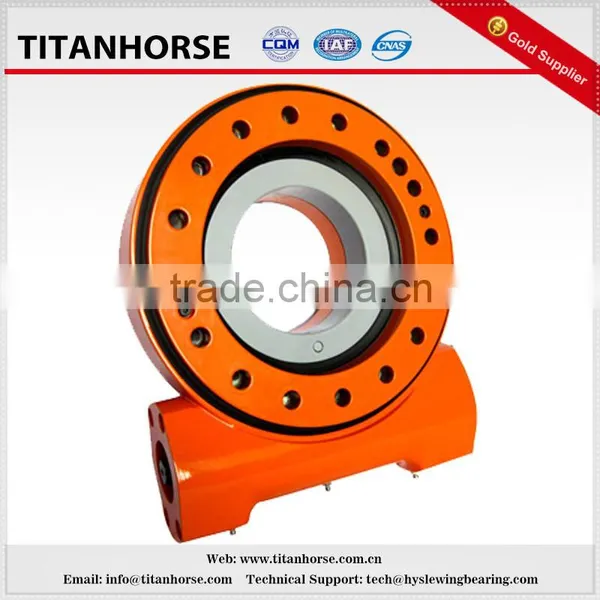

Slew Drive Worm Gear for Solar Tracker

Name: Slew Drive Worm Gear for Solar Tracker
Brand: TITANHORSE
SKU: 109879925
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

TITANHORSE

Bore Size:

384, 2585

Outside Diameter:

616, 3015

Beijing Titanhorse Industry & Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Brand Name TITANHORSE

Bore Size 384, 2585

Outside Diameter 616, 3015

Model Number LKA5, slewing bearing

Feature Other, Four Point Contact, Four Point Contact

Seals Type Nitrile Rubber

Place of Origin Beijing, China

Brief

Own work-shop for slewing bearing and slewing drive 10000 sq.m
Production Scale: 5000pcs/Month
5S management system to improve the worker efficiency and ensure the products quality
8 series of slewing drive can be provided by us, size range from 3 inch to 25 inch.
Single axis slewing drive series, double axis slewing drive series, vertical slewing drive series, single worm slewing drive, double-worm slewing drive, open hoursing slewing drive, worm gear slewing drive, spur gear slewing drive.
Slewing drive or slewing bearing's application:
1. Industrial usage, to achieve the goal that control and automatic ratation
2. Solar energy, its designed to improve the power generation efficiency
Own the ability of designing customized solution for customer, OEM, please feel free to contact with your porjects.
Certificated by ISO9001, ISO 14001, OHSAS 18001,

Product's Parameters

Brand	Titanhorse
Model	DA7 (7 inch dual axis slewing drive)
Rated Output Speed	0.04rpm
Rated Ouput Torque	722.7 N.m
Output Torque	2600N.m
Tilting Moment Torque(Max.)	13500 N.m
Holding Torque	10400 N.m
Static Axial Load	133 kN
Static Radial Load	53 kN
Dynamic Axial Load	32 kN
Dynamic Radial Load	28 kN
Ratio Of Worm Gear	73:1
Tracking Precision	<0.2°
Application	solar tracker,CPV, PV,CSP, antenna, automatic arm, construction machinery, Rader, Satellite, conveying equipments, transportation machinery etc.
Motor	DC(12v,24v,48v) AC(110V,220V,230V,380V,420V) Hydraulic Motor, Stepper Motor etc.
Life-time	25-30 years
Materials	42Crmo/ 50Mn
Seal	Grease Seal
Colour	according to your requirements
