Specifications
Industrial horizontal gas fired thermal oil furnace1.High automaticity
mpt start and stop
3.high reliability
4.BV,CE
Industrial horizontal gas fired thermal oil furnace
Introduction:

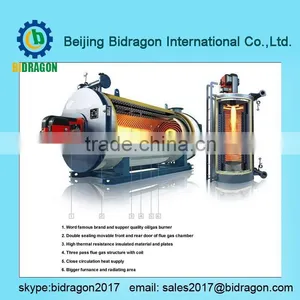

Thermal oil furnace takes diesel , natural gas, LGP as fuel. Three pass and wet back structure enhance it’s thermal efficiency and lower flue gas temperature. Thicker insulated material layer makes radiating at minimum limit.
All furnaces are assembly structure which is easy for installation by just connecting system device by pipes. Intelligent system control makes boiler operation easier and more simple. Controller with imitation screen display has auto igniting, burning, circulation pumps control, alarm, etc.
Application:
1.Chemical industry - lipidic chemical industry, reaction jug, polymerization, distillation, enrichment.
2.Plastic industry - plastic firing, extrusion stereotypes.
3.Textile industry - resin stenters, dyeing machine and dry room, high-temperature machine, GunTongJi.
4.Rubber industry -rubber vulcanization heating.
5.Food industry - cooking, drying, vegetable oil refining.
6.Forest industry - plywood, glass-plate, chipboard of heating stereotypes. - packaging cartons,
7.Paper industry of multi-layer cardboard, drying and dry.
8.Others - metal electroplating slot heating, coating condensation, drying, the pharmaceutical industry distillation, reduction, concentration, dehydration, etc.
Features:
1.The temperture of oil can rise to 300°C at the atmospheric pressure.
2.Thermal Oil doesn't cause any corrosion in the boiler plant.
3.Also incrustation and calcification don't accur.
4.In the normal climate conditions , freezing doesn't occur in boiler plant.
5.When necessary, hot water, boiling water and steam can be produced by means of thermal oil boiler.
6.Temperture is checked easily.
7.Boiler plant maintenance costs are low.
Parameter:
|
YGL-120F (10×104Kcal) |
YGL-240F (20×104Kcal) |
YGL-350F (30×104Kcal) |
YGL-500F (40×104Kcal) |
YGL-700F (60×104Kcal) |
YGL-1000F (80×104Kcal) |
YGL-1200F (100×104Kcal) |
YGL-1400F (120×104Kcal) |
YGL-2000F (160×104Kcal) |
|||
| Rated Thermal Power kW | 120 | 240 | 350 | 500 | 700 | 1000 | 1200 | 1400 | 2000 | |||
| Thermal Efficiency % | ≥73 ≥76 | |||||||||||
| Pressure Mpa | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | |||
| Max. Temp. °C | 340 | 340 | 340 | 340 | 340 | 340 | 340 | 340 | 340 | |||
| Circulation Oil m3/h | 12.5 | 20 | 30 | 40 | 60 | 80 | 100 | 100 | 160 | |||
| Pipe DN | 50 | 50 | 65 | 65 | 100 | 100 | 125 | 125 | 150 | |||
| System Power kW | 6.7 | 10 | 14.1 | 14.1 | 23.5 | 29 | 40 | 40.1 | 48.1 | |||
| Fuel | rice husk | |||||||||||
| Fuel Weight kg/h | 61 | 128 | 191 | 267 | 375 | 529 | 663 | 737 | 1147 | |||
| Dimension | Diameter | 1150 | 1300 | 1700 | 1700 | 1960 | 2050 | 2160 | 2290 | 2620 | ||
| Height | 2385 | 2650 | 3060 | 3475 | 3805 | 4415 | 4760 | 5445 | 6430 | |||
| Total Weight kg | 1560 | 1960 | 3520 | 3800 | 4900 | 6100 | 7500 | 8850 | 12690 | |||

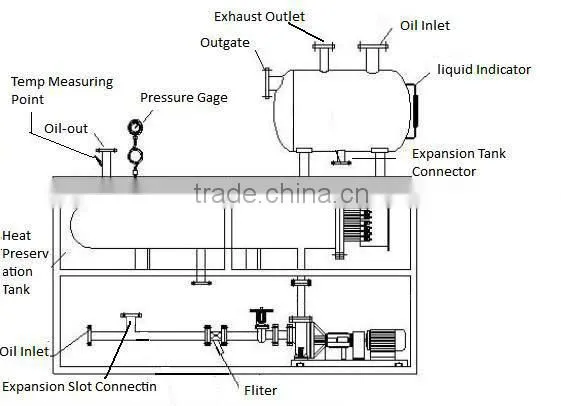

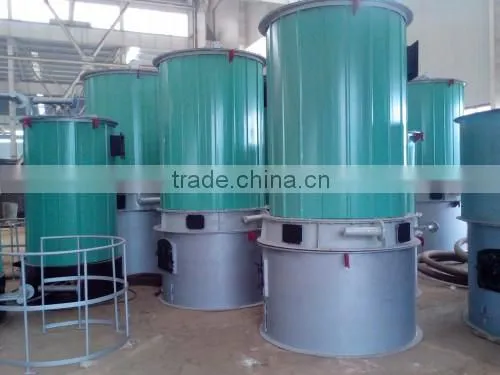

Prodcut pictures:
Our philosophy
Satisfy the customer’s demands, push forward enterprise development through quality, win trust and opportunity by constant application of creative work, realize new storage type, and promote the development of human society.
Quality guarantee :
One year

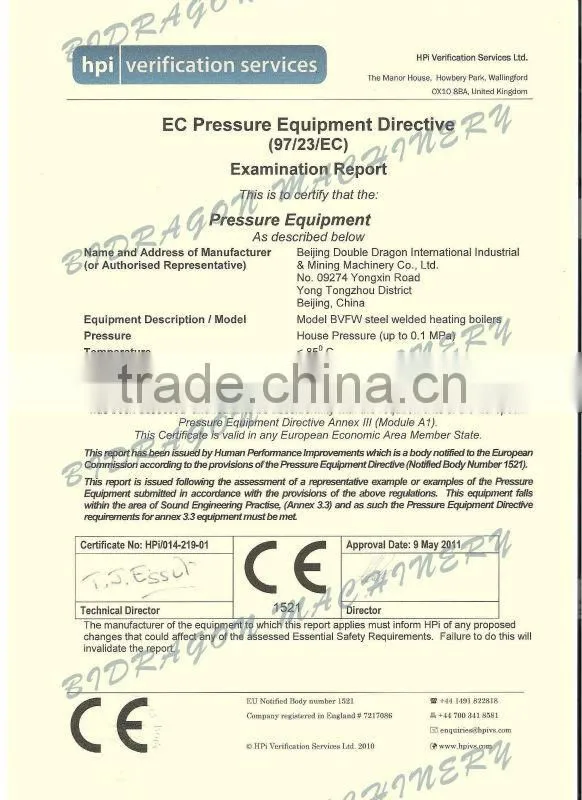

Certificate:

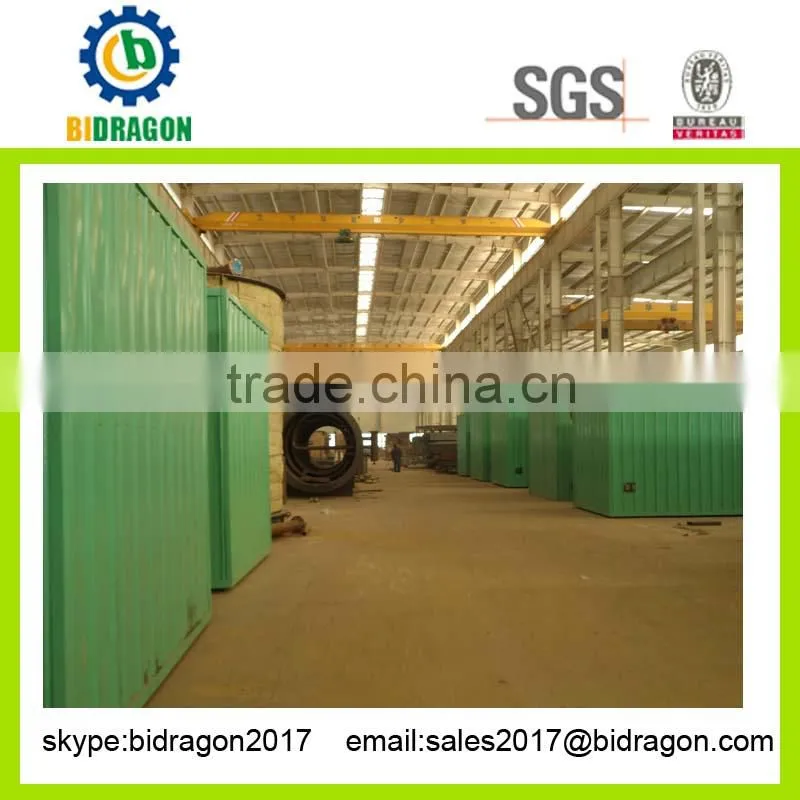

Beijing Double dragon international industrial and mining machinery Co.Ltd. Our company has 300 staff, covers an area of 18000 square meter, and we owns the A class boiler manufacturing licenses and D-class pressure vessel manufacturing licenses and design permit in China. We are the professional thermal oil heater supplier and we are specializing in the production of various thermal oil heater, molten salt furnace, electric thermal oil heater, thermal oil steam generator and other pressure vessle.We are the biggest boiler supplier in China, we have the large crane,CNC bending steel plate machine,CNC bending tube machine, and other large machine in our factory. Besides, we have get GB/T19001-2000idtl 9001:2000 quality management system certification.
For more detailed information please feel free to contact Yolanda,Skype:bidragon2017
