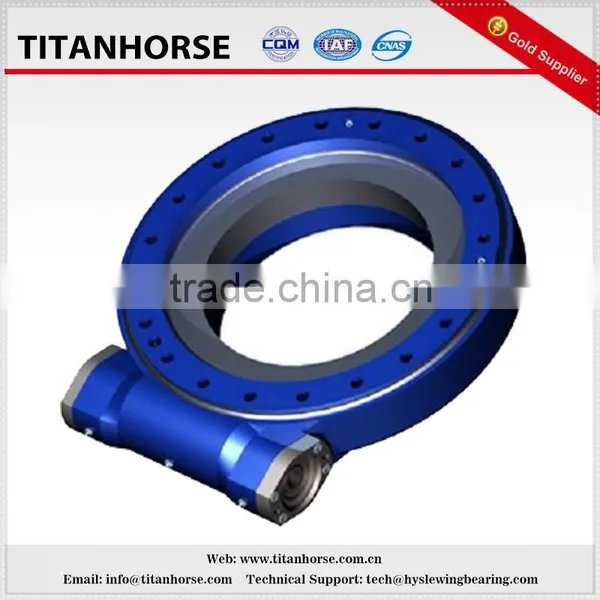

14 Inch Slewing Drive for Rotary Forklift And Aerial Working Platform
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Gearing Arrangement:
Worm
Output Torque:
10kN.m
Rated Power:
LKA14
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Titahorse 9 Inch Single Axis Slew Drive for Rotary TableUS$ 200 - 500MOQ: 1 Piece -
7 Inch Vertical Mounting Hourglass Worm Slew DriveUS$ 280 - 3,700MOQ: 1 Set
-
7 Inch Slewing Drive for Solar PanelUS$ 370 - 4,500MOQ: 1 Set
-
Slew Drive With Hydraulic Motor and AC MotorUS$ 290 - 4,500MOQ: 1 Set
-
7 Inch Dual Axis Slewing Drive for Solar Tracker SystermUS$ 200 - 1,500MOQ: 1 Piece
Gearing Arrangement
Worm
Output Torque
10kN.m
Rated Power
LKA14
Input Speed
3-5rpm
Output Speed
less than 2.5rpm
Place of Origin
Beijing, China
Model Number
LKA14
Brand Name
TITANHORSE
Brief
- Own work-shop for slewing bearing and slewing drive 10000 sq.m
- Production Scale: 5000pcs/Month
- 5S management system to improve the worker efficiency and ensure the products quality
- 8 series of slewing drive can be provided by us, size range from 3 inch to 25 inch.
- Single axis slewing drive series, double axis slewing drive series, vertical slewing drive series, single worm slewing drive, double-worm slewing drive, open hoursing slewing drive, worm gear slewing drive, spur gear slewing drive.
- Slewing drive or slewing bearing's application:
- 1. Industrial usage, to achieve the goal that control and automatic ratation
- 2. Solar energy, its designed to improve the power generation efficiency
- Own the ability of designing customized solution for customer, OEM, please feel free to contact with your porjects.
- Certificated by ISO9001, ISO 14001, OHSAS 18001
Company Information
| Brand | Titanhorse |
| Model | A 14 (14 inch single axis slewing drive) |
| Rated Output Speed | <2.5rpm |
| Rated Ouput Torque | 8 kN.m |
| Output Torque | |
| Tilting Moment Torque(Max.) | 67.8 kN.m |
| Holding Torque | 48 kN.m |
| Static Axial Load | 555 kN |
| Static Radial Load | 222 kN |
| Dynamic Axial Load | |
| Dynamic Radial Load | |
| Ratio Of Worm Gear | 85:1 |
| Tracking Precision | <0.17° |
| Application | solar tracker,CPV, PV,CSP, antenna, automatic arm, construction machinery, Rader, Satellite, conveying equipments, transportation machinery etc. |
| Motor | DC(12v,24v,48v) AC(110V,220V,230V,380V,420V) Hydraulic Motor, Stepper Motor etc. |
| Life-time | 25-30 years |
| Materials | 42Crmo/ 50Mn |
| Seal | Grease Seal |
| Colour | according to your requirements |
Production flow
Motor
Product Uses
Contact US
Please feel free to contact us with your projects!
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2007
Factory Size
Above 100,000 square meters
Total Employees
Above 1000 People
