LNG liquid nitrogen liquid oxygen cryogenic pressure vessel

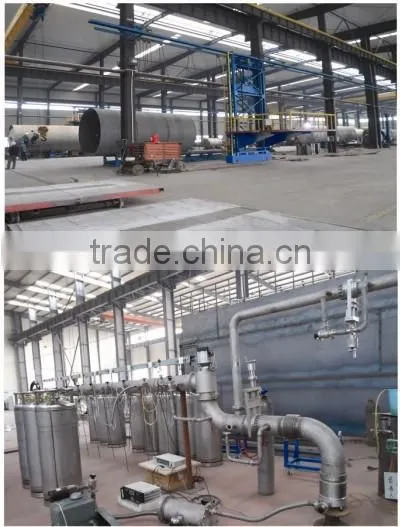

Beijing Double Dragon International Industrial & Mining Machinery Co., Ltd (also known as Bidragon) is located in Beijing. We are a high and new technology enterprise, which is professionally engaged in producing cryogenic tanks, liquid oxygen tanks, liquid nitrogen tank, carbon dioxide tanks, LNG storage tanks and Dewar.
Cryogenic chemical storage equipment is essentially a double walled cylindrical tank, annular space between inner and outer vessel is filled with insulating material and evacuated to a high vacuum to achieve minimum evaporation losses. The cold converter is fitted with pressure building arrangement with automatic pressure build - up regulator.
Low temperature storage tank, or cryogenic tank, is made by the double vacuum adiabatic reservoir. which made by Austenitic Stainless Steel’s tank, with both Vertical or horizontal type.
It can be design by different request. Between the liner and shell is fall with thermal insulation material.
Each storage tank has checked by CSBTS with Pressure vessel inspection certificate.
Cryogenic tank can be used in many different fields, such as Electronics industry, chemical industry, petroleum industry and the glass industry
Specifications:
Cryogenic tank for sale
1. Vacuum powder insulation
2. Pearl powder for insulating materials
3. Economy price
cryogenic chemical storage equipment

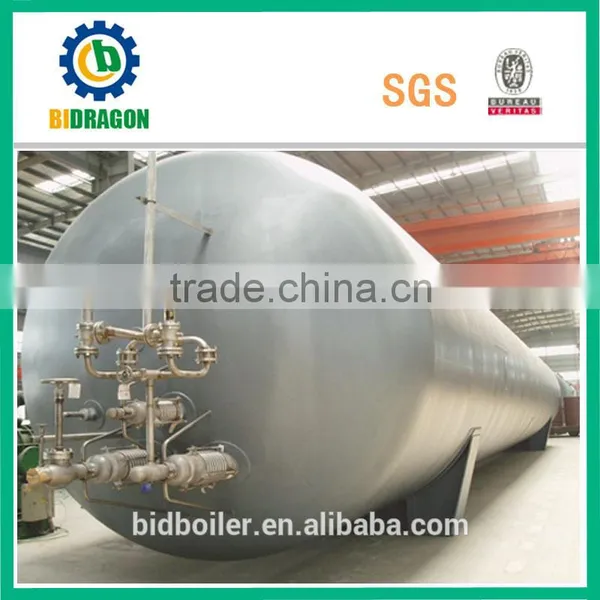

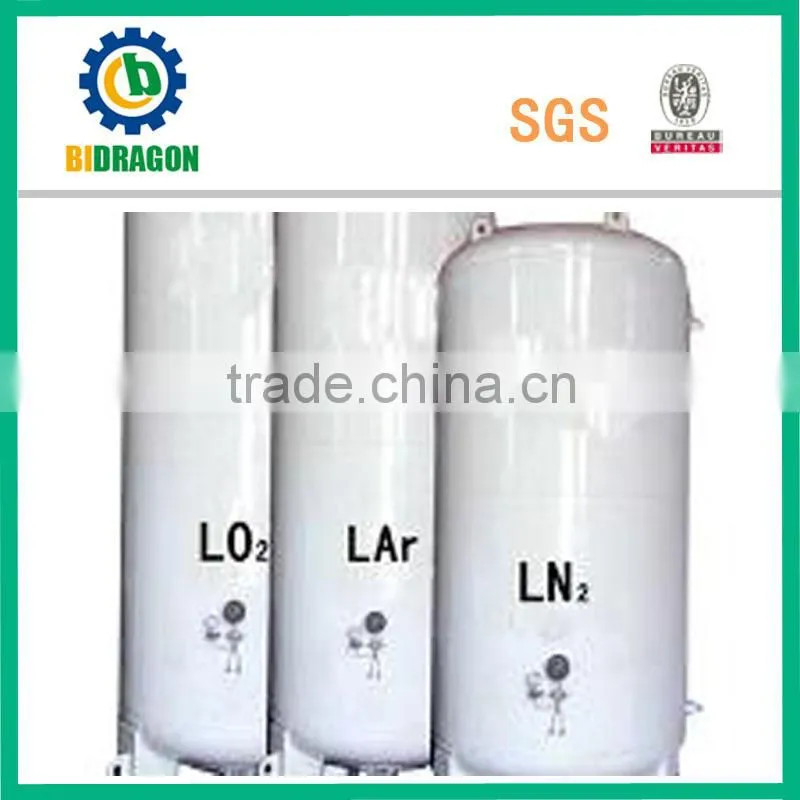

Vertical or horizontal double wall vacuum-insulate
Inner tank made by 0Cr18Ni9 with TIG welding
Outer tank make by Q235-B or 345R
Operating pressure: 0.8/1.6MPa
Volume: 5-200 cubic meters
Working times: more than 10 years
Design times: 20 years
liquid oxygen liquid nitrogen cryogenic storage tank Main Parameters :
1 |
Available max. volume |
20 m3 30 m3 60 m3 100 m3 |
2 |
working pressure |
0.8Mbar,1.2Mbar, |
| 3 | Min Design temperature |
-196°C |
4 |
Max Design temperature |
+50 °C |
5 |
Total Volume |
5.26m3, |
6 |
Effective volume |
5m3 |
7 |
Filling Ratio |
0.95 |
8 |
Inner tank Material |
0Cr18Ni9 |
9 |
Outside tank Material |
Q345-B |
10 |
Diameter |
1900mm |
11 |
Length |
5165mm |
12 |
Empty weight |
~4015kg |
13 |
Suitable |
LIN, LOX, LAr,LNG |
14 |
Insulation method |
vacuum powder or high vacuum multi-layer wrap insulation |
15 |
Medium |
liquid argon/ nature gas/ oxygen/nitrogen/ carbon dioxide |
Application:
Widely used in LO2,LN2,LAr,LNG vaporizing station , peak-shaving station ,gas station, Liquefaction plants and so on.
Any more questions,please sent inquiry below!
