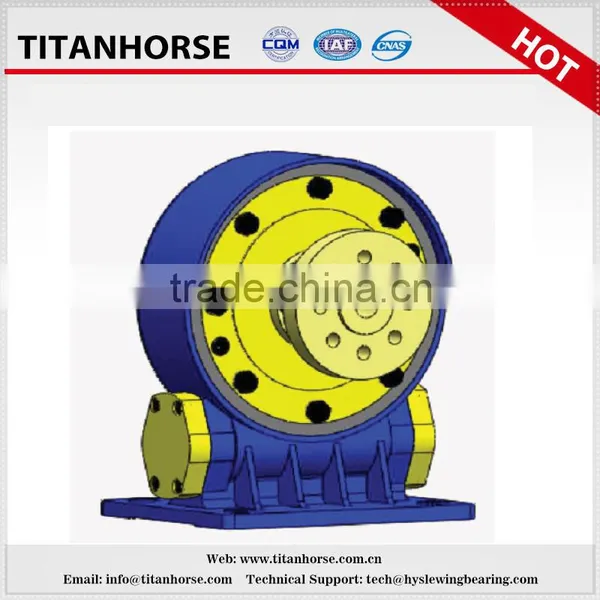

Help CenterTitanhorse 7 Inch Vertical Worm Gear Slewing Drive for PV Tracking System
Related Products
-
Slew Drive Worm Gear for Solar TrackerUS$ 200 - 3,000MOQ: 1 Set -
14 Inch Worm Slewing Drive for AntennaUS$ 100 - 1,000MOQ: 1 Set
-
Titanhorse 9 Inch Slewing Drive With 24 v dc Motor for Construction MachineryNegotiableMOQ: 1 Set
-
Titanhorse 14 Inch Opening Hoursing-slewing Drive for Rotate TableNegotiableMOQ: 1 Set
-
Titanhorse 7 Inch Vertical Slew Drive With 12v dc Motor for Concentrated Solar PowerNegotiableMOQ: 1 Set
- Own work-shop for slewing bearing and slewing drive 10000 sq.m
- Production Scale: 5000pcs/Month
- 5S management system to improve the worker efficiency and ensure the products quality
- 8 series of slewing drive can be provided by us, size range from 3 inch to 25 inch.
- Single axis slewing drive series, double axis slewing drive series, vertical slewing drive series, single worm slewing drive, double-worm slewing drive, open hoursing slewing drive, worm gear slewing drive, spur gear slewing drive.
- Slewing drive or slewing bearing's application:
- 1. Industrial usage, to achieve the goal that control and automatic ratation
- 2. Solar energy, its designed to improve the power generation efficiency
- Own the ability of designing customized solution for customer, OEM, please feel free to contact with your porjects.
- Certificated by ISO9001, ISO 14001, OHSAS 18001,
Enclosed slewing drives are the most popular model of Titanhorse’ slewing drives and can help power movement in machinery such as wind turbines, military equipment, digger derricks, solar trackers, medical equipment, forestry, waste management and industrial positioners. The housing fully encapsulates all the drive components such as the double enveloping worm gearset, planetary gearing, and turntable bearing, such that they have total protection from the elements. The Enclosed Drive is also advantageous if you’re mounting inside so as not to see the parts in motion, or to avoid injuring workers working in close proximity.
Slewing drives are ideal for jobs that require both load-holding and rotational torque from the same gearbox. The fully-enclosed comes with Titahorse’ patented hourglass worm technology, or cone drives and double enveloping worm gearsets where required, for maximum load-holding and efficiency. Each size is rigorously tested for reliable performance, with base model sizes producing 6kNm to 2200kNm of holding torque, 200Nm to 630kNm of output torque, 500Nm to 2710kNm of overturning moment load capacity, and gearbox reduction ratios of 30:1 up to 156,600:1.
Friendship Recommendation
- Vertical installation
It is advised to mount the slewing drives referring to attached drawing upside in solar applications for better protection.
For other applications, the mounting directions shall be based on the evaluation of the protection level and it shall be better for better protection.
- Horizontal installation
It is advised to mount the slewing drives upside down on the azimuth axis in solar applications for better protection and add protection for the elevation axis.
For other applications, the mounting directions shall be based on the evaluation of the protection level and it shall be better for better protection.
