Help CenterSlewing Drive for Solar Tracking System
Related Products
-
Dual Axis Solar Tracker Slew DriveUS$ 200 - 500MOQ: 1 Set -
Titanhorse 9 Inch Vertical Slewing Drive for Solar Tracker SystemNegotiableMOQ: 1 Set
-
Titanhorse 25 Inch Slewing Drive for Construction MachineryNegotiableMOQ: 1 Set
-
Titanhorse 7 Inch Slew Drive for Mulitfunction Nursing BedNegotiableMOQ: 1 Set
-
Titanhorse 5 Inch Single Axis Slew Drive With Brushless Motor for Solar Tracking System and CameraNegotiableMOQ: 1 Piece
Specifications
Slew Drive for solar tracking systerm;Hydraulic or electric motors;
Single or dual axis drive;
Self-owned forging ring mill.
Brief Introduction
A slewing drive is also called slewing gear drive or slewing reducer, etc. It is typically used in aerospace area, solar power systems, wind turbines, satellite broadcasting system, and engineering machinery like truck cranes, and man lifts, etc. Recently years, it has been prosperously used in photovoltaic power generation systems.
When a slewing drive is used in solar energy industry, users have to choose an ideal one according to the actual area of solar panels. Broadly speaking, 3 inch slewing drive is suitable for solar power system coming with 3- 5 m2 solar panel, 7 inch for 10-17 m2 solar panel, 9 inch for 18-30 m2, 12 inch for 31-45 m2, and 14 inch for 46-60 m2. These are provided for your reference. For more specific and detailed information, please contact me directly.
A slewing drive is usually composed of a slewing ring, worm, casting housing, and standard components like bearing and bolts, etc. While used in photovoltaic power generation system, the slewing drive is usually used in combination with DC planetary speed reducer motor and AC speed reducer motor. While used in engineering equipment, it is regularly used in combination with hydraulic motor to function as power driving system.
About Motors
21 Inch Slewing Drive | |
Brand |
Titanhorse |
Output Torque |
15 kN.m/11,000 lbf.ft |
Tilting Moment Torque |
203 kN.m/150,000 lbf.ft |
Holding Torque |
105.8 kN.m/78,000 lbf.ft |
Static Axial Rating |
15598 kN/359,000 lbf |
Gear Ratio |
125:1 |
Tacking Precision |
≤0.15° |
Weight |
149kg |
Standard |
CE/ISO/SUHC(REACH)/TUV |
Place of Origin |
China |
Service |
OEM service; Customized Solution |
Material |
42CrMo |
Transport terms |
by sea , by air or by Railway |
Delivery Time |
Within 25 days after down payment |
Port |
Qingdao, Shanghai |
Payment terms |
A: T/T B: Western Union |
Brief Selection Sheet

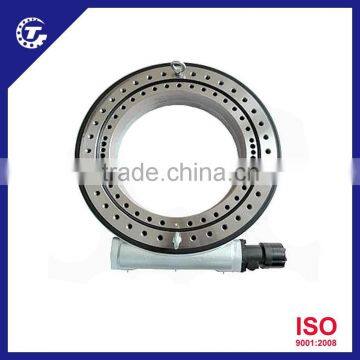

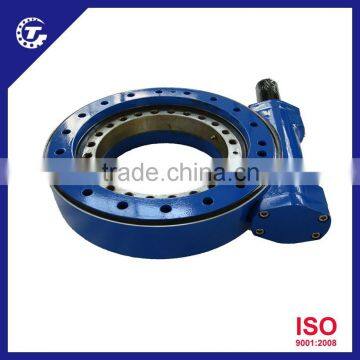

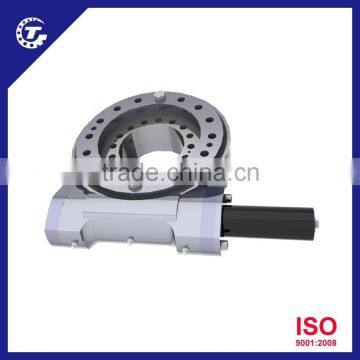

Photos Show
Ø History
l Headquarter founded in the 1980s as a state-owned enterprise, reformed to be one limited liability company in 2005.
l Start to produce slewing ring in 1995, have own brand name for slewing ring.
l Four subsidiaries belong to the headquarter: Ring mill plant, Slewing ring plant, Wheel hub plant, Beijing Titanhorse International Trade Dept.
Ø Company Scale
l Total area: 100,000sq.m
l Factory: 60,000sq.m
l Office: 7,000sq.m
l 700 employees
l Lines of product: forged raw rings (The raw material of slewing ring), Slewing rings, Wheel hub
Ø Production Scale
l Slewing ring 50,000pcs/month
l Ring/flange 8,000pcs/month
l Wheel hub 20,000pcs/month
Ø Unique Advantage
l 6 series of slewing ring, the raceway diameter ranges from 200-5,000mm
l Germany 5S standard site management and QC management engineering standards
l ISO9001:2008, OHSAS18001:1999, ISO14001:2004
Certification
Package
FAQ |
Q1: I want to buy your products, how can I pay? |
Sammie: You can pay via T/T(30%+70%), L/C , WEST UNION , etc. |
Q2: How can you guarantee the quality? |
Sammie: One year's warranty against B/L date. If you meet with quality problem, please send us pictures or video to check, we promise to send spare parts or new products to replace. Our guarantee not include inappropriate operation or wrong specification selection. |
Q3: How we select models and specifications? |
Sammie: You can email us the series code (for example: 3 inch dual axis slewing drive) as well as requirement details, such as motor power, output speed or ratio, service factor or your application...as much data as possible. If you can supply some pictures or drawings, it is nice. |
Q4: If we don't find what we want on your website, what should we do? |
|
Sammie : We offer three options: 1, You can email us the pictures, drawings or descriptions details. We will try to design your products on the basis of our standard models. 2, Our R&D department is professional for OEM/ODM products by drawing/samples, you can send us samples, we do customized design for your bulk purchasing. 3, We can develop new products if they have good market. We have already developed many items for special using successful, such as special gearbox for agitator, cement conveyor, shoes machines and so on. |
Q5: Can we buy 1 pc of each item for quality testing? |
Sammie : Yes, we are glad to accept trial order for quality testing |
Q6: How about your product delivery time? |
Sammie : Normally it takes 15 days for a trial order. And for large quantity orders, it is 40 days. |
