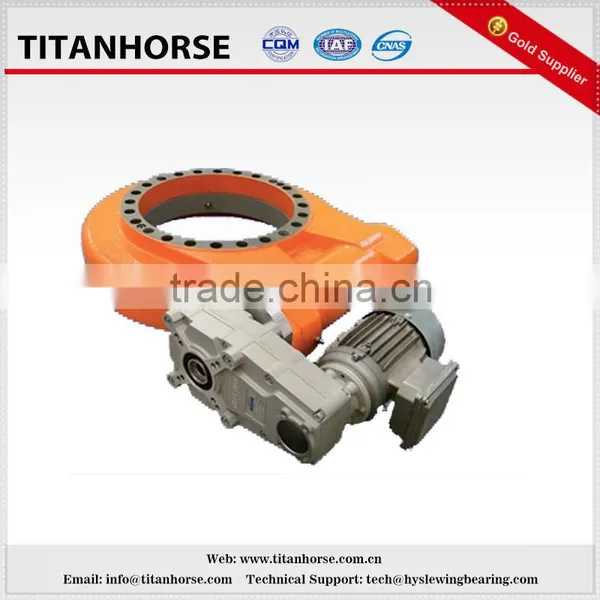

Titanhorse 21 Inch Single Axis Slewing Drive for Packaging Machinery

Name: Titanhorse 21 Inch Single Axis Slewing Drive for Packaging Machinery
Brand: Titanhorse
SKU: 109870653
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Beijing, China

Brand Name:

Titanhorse

Model Number:

A 21

Beijing Titanhorse Industry & Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Beijing, China

Brand Name Titanhorse

Model Number A 21

Type Other, slew drive, Worm gear driven type

Company Information

Brief

Own work-shop for slewing bearing and slewing drive 10000 sq.m
Production Scale: 5000pcs/Month
5S management system to improve the worker efficiency and ensure the products quality
8 series of slewing drive can be provided by us, size range from 3 inch to 25 inch.
Single axis slewing drive series, double axis slewing drive series, vertical slewing drive series, single worm slewing drive, double-worm slewing drive, open hoursing slewing drive, worm gear slewing drive, spur gear slewing drive.
Slewing drive or slewing bearing's application:
1. Industrial usage, to achieve the goal that control and automatic ratation
2. Solar energy, its designed to improve the power generation efficiency
Own the ability of designing customized solution for customer, OEM, please feel free to contact with your porjects.
Certificated by ISO9001, ISO 14001, OHSAS 18001

Brand	Titanhorse
Model	A21 (21 inch dual axis slewing drive)
Rated Output Speed	<2.5rpm
Rated Ouput Torque	15 KN.m
Output Torque
Tilting Moment Torque(Max.)	203 kN.m
Holding Torque	105.8 kN.m
Static Axial Load	133 kN
Static Radial Load	640 k.N
Dynamic Axial Load	32 kN

Ratio Of Worm Gear	125:1
Tracking Precision	<0.15°
Application	solar tracker,CPV, PV,CSP, antenna, automatic arm, construction machinery, Rader, Satellite, conveying equipments, transportation machinery etc.
Motor	DC(12v,24v,48v) AC(110V,220V,230V,380V,420V) Hydraulic Motor, Stepper Motor etc.
Life-time	25-30 years
Materials	42Crmo/ 50Mn
Seal	Grease Seal
Colour	according to your requirements
