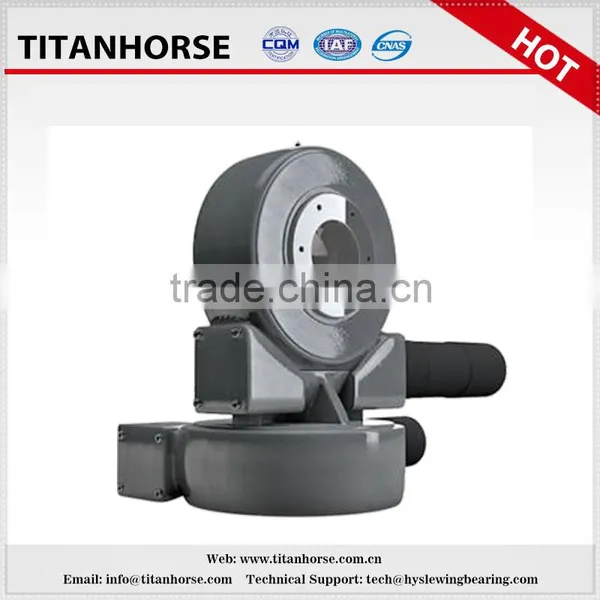

Help CenterTitanhorse 7 Double Axis Solar Tracker System With Stepper Motor for Cnc Equipment
Related Products
-
Titanhorse 7 INCH Two Axis Slewing Drive for Soalr Tracking System 15kw Power GenerationNegotiableMOQ: 1 Set -
Dock Crane 12 Inch Slewing DriveNegotiableMOQ: 1 Set
-
Solar Panel Slewing Drive for Concentrating PhotovoltaicUS$ 150 - 15,000MOQ: 1 Piece
-
Biaxial Gear Reducer Slew Drive for Dual Axis Solar TrackerUS$ 100 - 15,000MOQ: 1 Piece
-
Dual Axis Slewing Drive(biaxial Slewing Drive) for PhotovoltaicUS$ 100 - 15,000MOQ: 1 Piece
Enclosed slewing drives are the most popular model of Titanhorse’ slewing drives and can help power movement in machinery such as wind turbines, military equipment, digger derricks, solar trackers, medical equipment, forestry, waste management and industrial positioners. The housing fully encapsulates all the drive components such as the double enveloping worm gearset, planetary gearing, and turntable bearing, such that they have total protection from the elements. The Enclosed Drive is also advantageous if you’re mounting inside so as not to see the parts in motion, or to avoid injuring workers working in close proximity.
Slewing drives are ideal for jobs that require both load-holding and rotational torque from the same gearbox. The fully-enclosed comes with Titahorse’ patented hourglass worm technology, or cone drives and double enveloping worm gearsets where required, for maximum load-holding and efficiency. Each size is rigorously tested for reliable performance, with base model sizes producing 6kNm to 2200kNm of holding torque, 200Nm to 630kNm of output torque, 500Nm to 2710kNm of overturning moment load capacity, and gearbox reduction ratios of 30:1 up to 156,600:1.
Slewing drives are ideal for jobs that require both load-holding and rotational torque from the same gearbox. The fully-enclosed SE comes with Kinematics’ patented hourglass worm technology, or cone drives and double enveloping worm gearsets where required, for maximum load-holding and efficiency. Each SE is rigorously tested for reliable performance, with base model sizes producing 6kNm to 2200kNm of holding torque, 200Nm to 630kNm of output torque, 500Nm to 2710kNm of overturning moment load capacity, and gearbox reduction ratios of 30:1 up to 156,600:1.
Prodction Flow
| Brand | Titanhorse |
| Model | DA7 (7 inch dual axis slewing drive) |
| Rated Output Speed | 0.04rpm |
| Rated Ouput Torque | 722.7 N.m |
| Output Torque | 2600N.m |
| Tilting Moment Torque(Max.) | 13500 N.m |
| Holding Torque | 10400 N.m |
| Static Axial Load | 133 kN |
| Static Radial Load | 53 kN |
| Dynamic Axial Load | 32 kN |
| Dynamic Radial Load | 28 kN |
| Ratio Of Worm Gear | 73:1 |
| Tracking Precision | <0.2° |
| Application | solar tracker, antenna, automatic arm, construction machinery, Rader, Satellite, conveying equipments, transportation machinery etc. |
| Motor | DC(12v,24v,48v) AC(110V,220V,230V,380V,420V) Hydraulic Motor, Stepper Motor etc. |
| Life-time | 25-30 years |
| Materials | 42Crmo/ 50Mn |
| Seal | Grease Seal |
| Colour | according to your requirements |
Motor for slewing drive
Generally, we use the standed wooden case to shipping slewing drive.
