Low Operating Cost Oil Heating Boiler for Drying Room

Low Operating Cost Oil Heating Boiler for Drying Room thumbnail-1
Low Operating Cost Oil Heating Boiler for Drying Room photo-1
US$ 5,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Natural Circulation
Usage:
Industrial
Contact Supplier Request Quote Chat Now
Beijing Double Dragon International Industrial & Mining Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Natural Circulation
Usage Industrial
Structure Fire Tube
Pressure Low Pressure
Style Horizontal
Fuel Other, heavy fuel oil
Place of Origin Henan, China
Brand Name Bidragon
Model Number YY(Q)W
Output Other, THERMAL OIL BOILER
Dimension(L*W*H) 2722mm*1656mm
Weight 1680kg
Certification BV,CE,ISO
After-sales Service Provided Engineers available to service machinery overseas

   low operating cost oil heating boiler for drying room






 Introduction:



Thermal oil heater( electric thermal oil heater ) has advantages of stable heating performance, good heat transfer performance, low vapor pressure.As the heat-conducting oil possesses some advantages of good thermal stability, good heat-transfer performance, low vapor pressure, non-toxic, tasteless and non-corrosive on equipment, our  electric thermal oil heaterhas gradually been more extensive used in enterprise production.





Thermal oil heaters are characterized by the following features:



  • Tailor-made design to individual customer requirements
  • High efficiency which leads to low operating costs
  • Environmentally friendly due to low emissions





The reason why thermal oil heating becomes more and more used, are mainly related to these features and arguments:





  • High temperatures- at atmospheric pressure

  • Choice-free set-points of the outgoing thermal fluid temperature

  • Supreme part-load operations without compromising heating quality

  • No equipment for pre-treatment, no chemicals, no additives etc.

  • No heat loss due to hot condensate and flash steam

  • No risk of corrosion in the boilers, nor the piping of the circuit

  • Both cooling below 0 and above 100  using low-temperature fluid

  • Low maintenance costs (no dynamic influences causing leakages)

  • Quiet in operation (no steam stroke and flash steam noise)

  • Easy to operate (does not require boiler certified staff etc.)

  • Fluid sample analyzing that determine the condition of the system

  • No risk of freezing damages in cold regions.



Application:



  1. Chemical industry - lipidic chemical industry, reaction jug, polymerization, distillation, enrichment.
  2. Plastic industry - plastic firing, extrusion stereotypes.
  3. Textile industry - resin stenters, dyeing machine and dry room, high-temperature machine, GunTongJi.
  4. Rubber industry, rubber vulcanization heating.
  5. Food industry - cooking, drying, vegetable oil refining.
  6. Forest industry - plywood, glass-plate, chipboard of heating stereotypes. - packaging cartons,
  7. Paper industry of multi-layer cardboard, drying and dry.
  8. Others - metal electroplating slot heating, coating condensation, drying, the pharmaceutical industry distillation, reduction, concentration, dehydration, etc.



Specifications:



  • The temperture of oil can rise to 300°C at the atmospheric pressure.
  • Thermal Oil doesn't cause any corrosion in the boiler plant.
  • Also incrustation and calcification don't accur.
  • In the normal climate conditions , freezing doesn't occur in boiler plant.
  • When necessary, hot water, boiling water and steam can be produced by means of thermal oil boiler.
  • Temperture is checked easily.
  • Boiler plant maintenance costs are low.



Parameter:





      Parameter
 YGL-120F
(10×104Kcal) 		YGL-240F
(20×104Kcal) 		YGL-350F
(30×104Kcal) 		YGL-500F
(40×104Kcal) 		YGL-700F
(60×104Kcal) 		YGL-1000F
(80×104Kcal) 		YGL-1200F
(100×104Kcal) 		YGL-1400F
(120×104Kcal) 		YGL-2000F
(160×104Kcal)
Rated Thermal Power kW 120 240 350 500 700 1000 1200 1400 2000
Thermal Efficiency %                          ≥73                       ≥76
Pressure Mpa 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1
Max. Temp. °C 340 340 340 340 340 340 340 340 340
Circulation Oil m3/h 12.5 20 30 40 60 80 100 100 160
Pipe DN 50 50 65 65 100 100 125 125 150
System Power kW 6.7 10 14.1 14.1 23.5 29 40 40.1 48.1
Fuel rice husk
Fuel Weight kg/h 61 128 191 267 375 529 663 737 1147
Dimension Diameter 1150 1300 1700 1700 1960 2050 2160 2290 2620
Height 2385 2650 3060 3475 3805 4415 4760 5445 6430
Total Weight kg 1560 1960 3520 3800 4900 6100

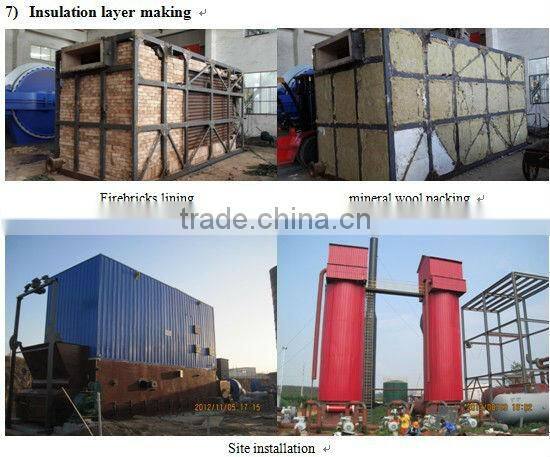

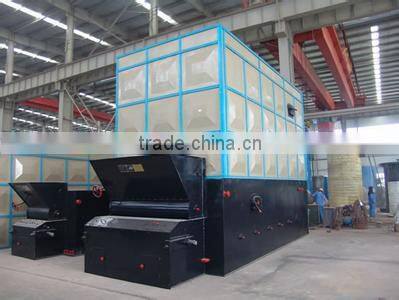

Picture show:





 low operating cost oil heating boiler for drying room



low operating cost oil heating boiler for drying room



For more info please feel free to contact with Ms.Yolanda (skype: bidragon2017)
