2013 China new high quality 200kg steam boiler

Specifications

boiler, 200kg steam boiler
1.High thermal efficiency>98%
2.Continuously work10000 hour
3.Siemens PLC controller

 Name



boiler,  200kg steam boiler , 2013 China new high quality  200kg steam boiler



Brief Introduction

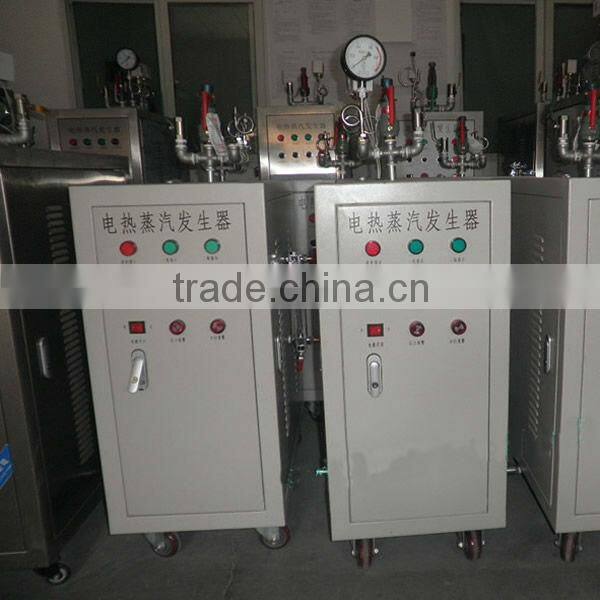

The LDR series Electrical Heating Steam Feeding Device is a steam-producing device. It is made up of container, control group, water-feeding pump, electrical heating pipe groupware, liquid level controller, relief valve, and etc, and it can control its course automatically. This device turns the water in the container into high-pressure steam by the electrical heating pipe groupware.



Feature and Advantage

1. High thermal efficiency : > 98%.
2. Long lifespan seamless stainless steel heating pipe : Our product passed the test of 10000 hours continuously working. Normal standard is 3000 hours.
3. High quality electric component : Schneider electric control components ensure the stability and good performance.
4. High intelligent PLC control : Siemens PLC control system with more intelligent function.
5. High electrical conductivity : Pure cope electric wire and connector.
6. High quality boiler material : 12mm thickness boiler steel container.
7. Beautiful appearance for wide applications : Stainless steel wire drawing cover, beautiful appearance, can be used in hospital, school, restaurant, laundry .etc.



Extension Function

1. Universalinterfacewith convenient monitoring way:Equip with PROBRS-DP interface and response software, operation and load change data realize centralized monitoring and distance monitoring.
2. Advanced boiler network: Boiler network can be built with automatic load change to control the stop and run of many boiler.
3. Human-computerinteractiontouch screen: set parameter and supervise operation condition, include alarm and work form change of boiler, is available , supervise item is selectablefor install

Characters

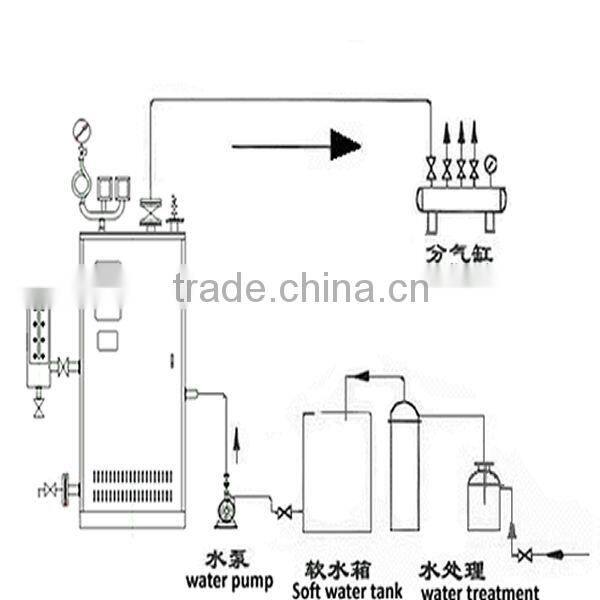

1. The LDR series Electrical Heating Steam Feeding Device is made up of the next main equipments:



•   The container is made of high quality seamless steel tube and armor plate for pressure vessel.
•   The electrical heating pipe is made of stainless steel tube. Once destroyed, you can replace it singly.
•   Water-feeding pump is able to endure high temperature.
•   We use a pressure controller on the device, in order to control the pressure of the steam.
•    We also use a liquid level controller, in order to control the level of the water.

        2.   So by using the equipments hereinbefore, the boiler can operate automatically.





Steam boiler or generator parameters:



Small type electric heating steam generator: Vertical



Model	Steam Output Kg/h	Rated Power KW	Rated Operating Current A	Electric Cable Parameter	Outline Dimension mm	Weight Kg	Steam outlet Valve Diameter DN	Blown Down Valve Diameter DN	Water Inlet Valve Diameter DN
LDR0.05-0.7	50	36	55	3*25+2(Copper Cable)	600X1000X1500	90	25	25	15
LDR0.06-0.7	58	42	64	3*25+2(Copper Cable)	600X1000X1500	230	25	25	15
LDR0.07-0.7	68	48	73	3*25+2(Copper Cable)	600X1000X1500	230	25	25	15
LDR0.08-0.7	75	54	82	3*35+2(Copper Cable)	600X1000X1500	230	25	25	15
LDR0.09-0.7	85	63	95	3*35+2(Copper Cable)	600X1100X1600	240	25	32	15
LDR0.10-0.7	100	72	109	3*35+2(Copper Cable)	600X1100X1600	240	25	32	15
LDR0.11-0.7	112	81	123	3*50+2(Copper Cable)	600X1100X1600	240	25	32	15
LDR0.12-0.7	125	90	136	3*50+2(Copper Cable)	600X1100X1600	240	2$	32	15
LDR0.13-0.7	135	96	145	3*70+2(Copper Cable)	700X1200X1700	360	25	40	25
LDR0.15-0.7	150	108	164	3*70+2(Copper Cable)	700X1200X1700	360	25	40	25
LDR0.17-0.7	168	120	182	3*70+2(Copper Cable)	700X1200X1700	380	25	40	25
LDR0.20-0.7	200	144	218	3*95+2(Copper Cable)	700X1200X1700	380	25	40	25
