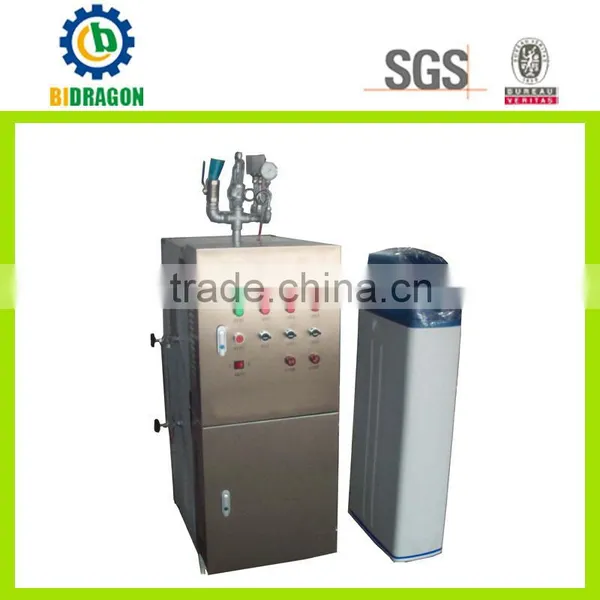

long service life vertical electric steam generator for hospital
- 100 Set / Sets per Month
- Qingdao Shanghai or Tianjin
- T/T Credit Card PayPal
- Mini animal feed grinding machine , corn powder hammer mill
- Mini type corn hammer mill , feed grinding machine for sell
- Factory direct sell small feed hammer mill , corn grinding machine
- Large capacity gum arabic hammer mill with cyclone
- Double Win agricultural hammer mill for sale,grain hammer mills for sale
- Ce approval Rice husk hammer mill machine/corn hammer mill/maize grinding hammer mill
Product Details
Condition: | New | Type: | Natural Circulation | Usage: | Other, Hospital,school,restaurant |
Structure: | Other, Electric boiler | Pressure: | Low Pressure | Style: | Vertical |
Fuel: | Other, electric | Place of Origin: | Shandong, China | Brand Name: | Bidragon |
Model Number: | LDR0.05-0.7 | Output: | Steam | Dimension(L*W*H): | 600X1000X1500mm |
Weight: | 90kgs | Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
long service life vertical electric steam generator for hospital1.Stainless steel heating pipe
2.High efficient: 98%
long service life vertical electric steam generator for hospital
1.Introduction of long service life vertical electric steam generator for hospital :
The LDR series Electrical Heating Steam Feeding Device is a steam-producing device. It is made up of container, control group, water-feeding pump, electrical heating pipe groupware, liquid level controller, relief valve, and etc, and it can control its course automatically. This device turns the water in the container into high-pressure steam by the electrical heating pipe groupware.
2.Distinguishing Feature:
1, High thermal efficiency more than 98%.
2, Seamless stainless steel heating pipe has long lifespan, our product passed the test of 10000 hours working continuously. Normal standard is 3000 hours.
3, Schneider electric control components ensure the stability and good performance.
4, Simens PLC control system with more intelligent function
5, Pure cope electric wire and connector with high electrical conductivity.
6, Stainless steel wire drawing cover.
7, 12mm thickness boiler steel container.
3.Technical Parameter:
Small type electric heating steam generator: vertical
Model | Steam Output Kg/h | Rated Power KW | Rated Operating Current A | Electric Cable Parameter | Outline Dimension mm | Weight Kg | Steam outlet Valve Diameter DN | Blown Down Valve Diameter DN | Water Inlet Valve Diameter DN |
LDR0.05-0.7 | 50 | 36 | 55 | 3*25+2(Copper Cable) | 600X1000X1500 | 90 | 25 | 25 | 15 |
LDR0.06-0.7 | 58 | 42 | 64 | 3*25+2(Copper Cable) | 600X1000X1500 | 230 | 25 | 25 | 15 |
LDR0.07-0.7 | 68 | 48 | 73 | 3*25+2(Copper Cable) | 600X1000X1500 | 230 | 25 | 25 | 15 |
LDR0.08-0.7 | 75 | 54 | 82 | 3*35+2(Copper Cable) | 600X1000X1500 | 230 | 25 | 25 | 15 |
LDR0.09-0.7 | 85 | 63 | 95 | 3*35+2(Copper Cable) | 600X1100X1600 | 240 | 25 | 32 | 15 |
LDR0.10-0.7 | 100 | 72 | 109 | 3*35+2(Copper Cable) | 600X1100X1600 | 240 | 25 | 32 | 15 |
LDR0.11-0.7 | 112 | 81 | 123 | 3*50+2(Copper Cable) | 600X1100X1600 | 240 | 25 | 32 | 15 |
LDR0.12-0.7 | 125 | 90 | 136 | 3*50+2(Copper Cable) | 600X1100X1600 | 240 | 2$ | 32 | 15 |
LDR0.13-0.7 | 135 | 96 | 145 | 3*70+2(Copper Cable) | 700X1200X1700 | 360 | 25 | 40 | 25 |
LDR0.15-0.7 | 150 | 108 | 164 | 3*70+2(Copper Cable) | 700X1200X1700 | 360 | 25 | 40 | 25 |
LDR0.17-0.7 | 168 | 120 | 182 | 3*70+2(Copper Cable) | 700X1200X1700 | 380 | 25 | 40 | 25 |
LDR0.20-0.7 | 200 | 144 | 218 | 3*95+2(Copper Cable) | 700X1200X1700 | 380 | 25 | 40 | 25 |
4.Successful Case Display:
Certificate:
The boiler sales team:
For more info please feel free to contact with Mr.Petter Lee (skype: bidragon2019)
