Specifications
Fluidized Bed Coal Water Slurry Steam Boiler1.Low temperature fire 850-900
2.Burnout rate 99%
3.fuel:coal water
4.BV
Professional Fluidized Bed(CFB) Coal Water Slurry Fuel (CWSF) Steam Boiler for sale
1.why choose us?
our company is a reputable provider of coal water slurry fule steam boiler with high quality and best service,
we are responsible for your choice.
2. Application Scope:
Coal-water slurry (CWS) can be used in place of oil and gas in any size of heating and power station. CWS is suitable for existing gas, oil, and coal boilers.
2. Feature and advantage of coal-water mixture fired steam boiler
- coal water slurry Stable operation and low emission:Coal water slurry fluidization system realizes the low temperature combustion; avoid coking, unstable operation, poor security problem of Coal-water slurry atomizer system.
- coal water slurry High efficiency:cyclic burn cluster of coal-water particle, achieve a high efficient performance reach over 89%.
- coal water slurry No need for slag remover: fluidization combustion mode blow ash through the flue duct to the dust filter
- coal water slurry Long life span water coal slurry pelletizer machine: High quality atomization coal water slurry burner can use 1500h, but fluidization coal water slurry boiler do not need vulnerable and short lifespan burner, which means long life span.
- coal water slurry Low cost for desulfuration: Use limestone and silica sand as medium material cooperate with low temperature combustion technology realize the direct desulfuration during Coal-water combustion (from CaO to CaSO4) , which is simple structure and low cost.
- coal water slurry Low consumption for medium material:recycle of limestone increase the use ratio which reduce the supply of limestone and medium material. This system also increases the efficiency.
- coal water slurry Broad Fuel Adjustivity Range: the boiler can adjust for different type Coal-water fuel and load range can be set 30% to 100%,
- coal water slurry Low cost and requirement for Coal-water slurry :Wide adaptable for Coal-water fuel reduces the requirement for Coal-water manufacture, which reduce the Coal-water cost.
- coal water slurry Simple and stable accessory: SHFS series (CWS fluidization system) do not need expensive burner, fault liability CWS atomization gun, complex high pressure air and CWS system, which make the whole system simple and reliable.
- coal water slurry PLC control system
3. Energy Saving fluidized bed coal water slurry steam boiler
Item |
Coal Fired Chain Grate Boiler |
Fluidized Bed Coal Water Slurry Boiler |
|
Fuel |
Fuel Type |
Coal |
Coal Water Slurry |
5300Kcal |
4500Kcal |
||
Fuel Price(Reference) |
780RMB |
800RMB |
|
Operation Cost |
Thermal Efficiency |
68%-73% |
≥88% |
Burnout Rate |
83%-85% |
99% |
|
Cost for 1t Steam |
165.85RMB |
160.82RMB |
|
Desulfuration Cost |
25RMB |
10RMB |
|
Water, Electric, Maintenance cost |
30RMB |
30RMB |
|
Composite Cost |
220.85RMB |
200.82RMB |
|
Operation Cost |
Low burnout rate, low thermal efficiency, high desulfuration cost, So , the cost is higher |
High combustion rate, thermal efficiency, in-furnace desulfuration,,SO, the cost is lower |
|
Floor Space |
Coal storage yard, slag storage yard, coal transport equipment occupy large space |
CWS transport in closed tank, no coal and slag storage yard, small space occupation |
|
System Comparison |
Include Loader, Crusher equipment, complicate operation, high cost for labor cost and maintenance |
Compact design, pipe transporting, few accessory, high automatic control, easy to operate |
|
Environment protection comparison |
Serious primary pollution , and secondary pollution during production or coal and slag storage yard, emission is high, can not reach the emission standard of Government |
Totally closed operation system, emmision is much lower than Government requirement. |
|
Summary |
The main advantage of fluidized bed coal water slurry boiler is energy-saving, environmental friendly, small space occupation. So the cost of fluidized bed coal water slurry boiler is much lower than coal fired boiler. |
||
4. Flowchart of fluidized bed coal water slurry boiler
5. Accessory and sucessful

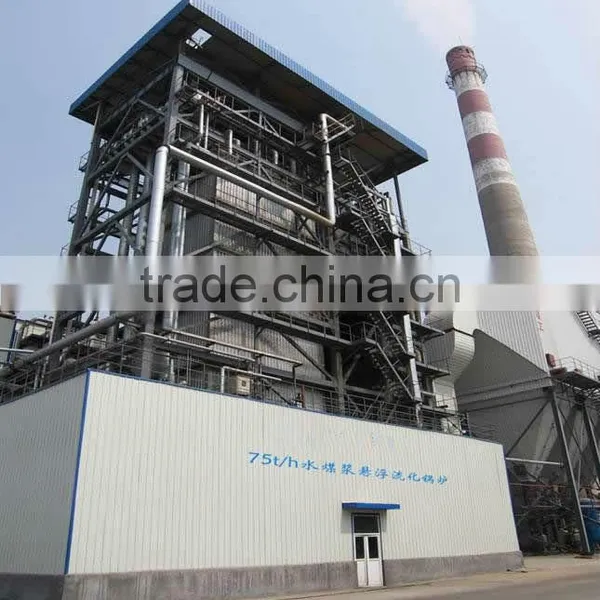

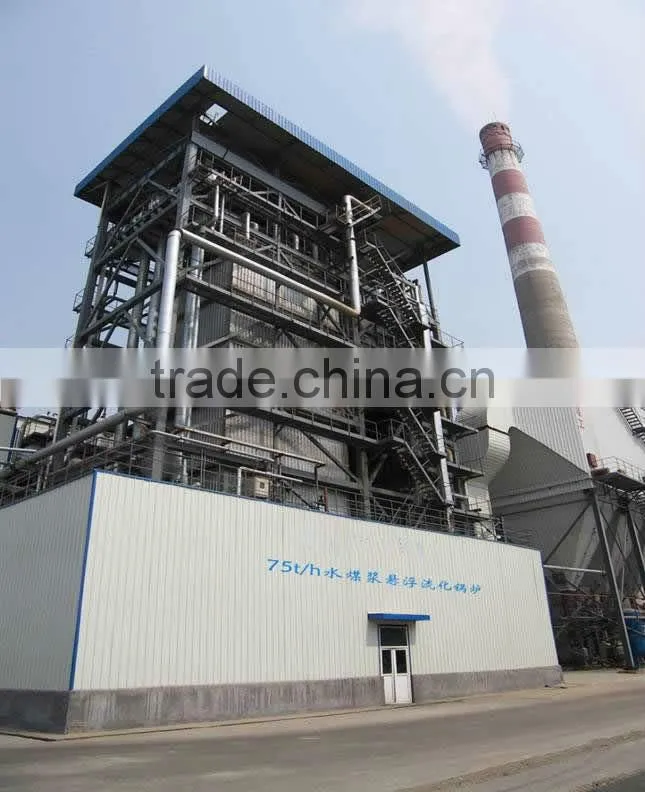

Sucessful Fluidized Bed Coal Water Slurry Boiler
Coal Water Slurry DCS Control System and Control Room

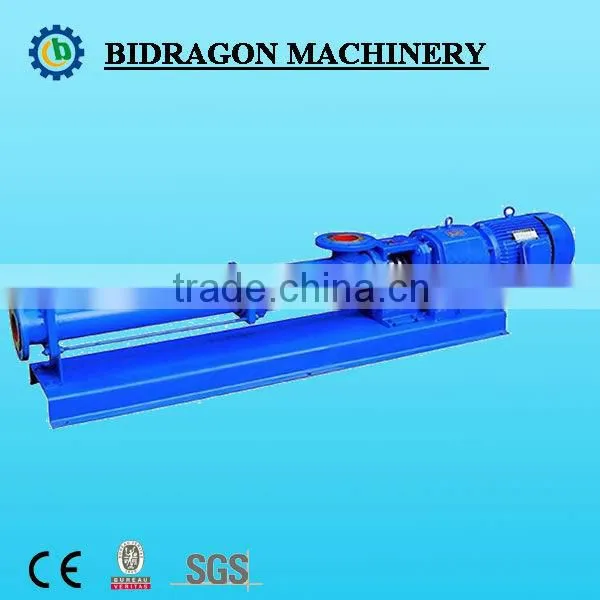

Coal Water Slurry Pump
Coal Water Slurry Tank
Fluidized Bed Coal Water Slurry Boiler SHFS75-1.25-J for Chemical Industry
Fluidized Bed Coal Water SLurry Steam Boiler For Chemical Industry
Fluidized Bed Coal Water Slurry Steam Boiler Sinopec Group, China
Fluidized Bed Coal Water Slurry Boiler for Food Industry
