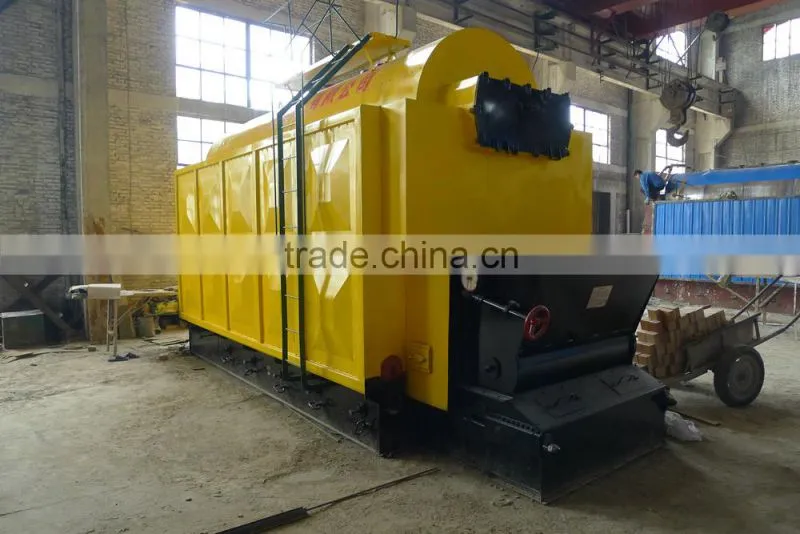

Heating Boilers for Factory, Buildings, Hotels and Bathrooms
This Steam Boiler barrel longitudinal arrangement water tubes boiler (1t/H is the single boiler barrel vertical sets at the type), both sides of the chamber are loaded with the fluorescent tube water cooling wall, behind arrange two groups of convection banks, lower part the chamber are loaded with the stationary fire grate or travelling grates. The boiler main body is assembly. After the site assembly, the steel frame will hold the boiler main body. The boiler has the drum drawing fan to carry out the flue gas to reduce the resistance of flame. The boiler overall structure conforms to coal and wood fired boiler and the work characteristic. May achieve fullyburning, does not have the black smoke, the highly effective environmental protection, can be used in the center of city.
Heating Boilers for Factory, Buildings, Hotels and Bathrooms Characteristic:
1) Structure compact, single-layer arrangement, small area requirement, low civil construction cost, simple installation at site.
2) The multi- spots enter the wind, matches the wind reasonably, the adjustment is precision.
3) Burning fully, high thermal efficiency, the fuel good compatibility.
4) Eliminates smoke and dust, environment friendly.
5) Has the overpressure alarm, the ultrahigh voltage switch off, double safety valves and explosive proof door to ensure safety.
6) Water auto feeding when the water level reach to low setting limit and stop when the water inside boiler is enough.
7) Big steam space and steam filter to get pure steam.
8) The boiler’s working status can be seen through double pressure gauges, and double water level indicator.
DZL seriesSteam Boiler Specification:
1. Before sending the machine, we will test and adjust, so you can use directly when you get it.
2. Operating video & instruction will be sent to clients, to help them better use the machines.
3. Any problems occur while using, professional advice will be given by us.
4. All kinds of frequently used parts are supplied from us all the year round
boiler system working drawing
Certificate of boilers:
Please feel free to contact if you need ay further information about our Heating Boilers for Factory, Buildings, Hotels and Bathrooms
