Vertical Biomass Fired Hot Water Boiler for hotel in Philippines
Specifications:
1.Wood Pellet Boiler
2. Thermal efficiency is 91.15%.
3.Outlet tempreture is 110-120 Centigrade
4.With CE certificate
Characterisric:
There are two types of biomass pellet hot water boilers: original micro-computer control system or updated Siemens touch screen control system.
Advantages:
1. PLC Siemens touch screen control system that make the boiler more intelligent and more energy-saving.
2. Adopt the imported high quality igniter;
3. Vane type induced draft fan with long service life and low noise;
4. User can adjust the speed of feed motor according to the needs;
5. The grate have the coking prevention function ;
6. The smoke temperature can be regulated;
7. Timing control in different time periods that make boiler more energy saving.
8. Vertical fire tube structure;
9. Can customize the function of remote control according to user's needs.
Range of application:
Widely used in plants greenhouses supply heating; Hotels, guesthouses, sauna bath center, beauty salon, villas, factories, schools and enterprises and institutions,scouring bath,heating and drying with hot water.
Technical Parameters:
Model |
BVFW0.035 |
BVFW0.06 |
BVFW0.08 |
BVFW0.12 |
BVFW0.18 |
BVFW0.24 |
|
85/65-M |
85/65-M |
85/65-M |
85/65-M |
85/65-M |
85/65-M |
||
Rated Capacity (Mw/h) |
0.035 |
0.06 |
0.08 |
0.12 |
0.18 |
0.24 |
|
Rated Calorific Capacity (Kcal/h) |
3×104 |
5×104 |
7×104 |
10×104 |
15×104 |
20×104 |
|
Power Voltage (v) |
220 |
220 |
220 |
220 |
220 |
220 |
|
Power(w) |
IDF |
180 |
250 |
370 |
750 |
1500 |
1500 |
Blower |
120 |
180 |
250 |
370 |
250 |
250 |
|
|
Igniter |
2000 |
2000 |
2000 |
2000 |
2000 |
2000 |
Exhaust Flue Dia. (mm) |
80 |
114 |
114 |
114 |
139 |
159 |
|
Hoper Capacity (kg) |
45 |
60 |
80 |
100 |
100 |
120 |
|
Fuel Consumption (kg/h) |
8.2 |
13.6 |
19 |
27.6 |
41 |
54.8 |
|
Hot Water Output (t/h) |
0.64 |
1.1 |
1.5 |
2.2 |
3.2 |
4.3 |
|
(In condtion of feeding water Temp.15 celsius degee and hot water Temp. 55 celsius degree) | |||||||

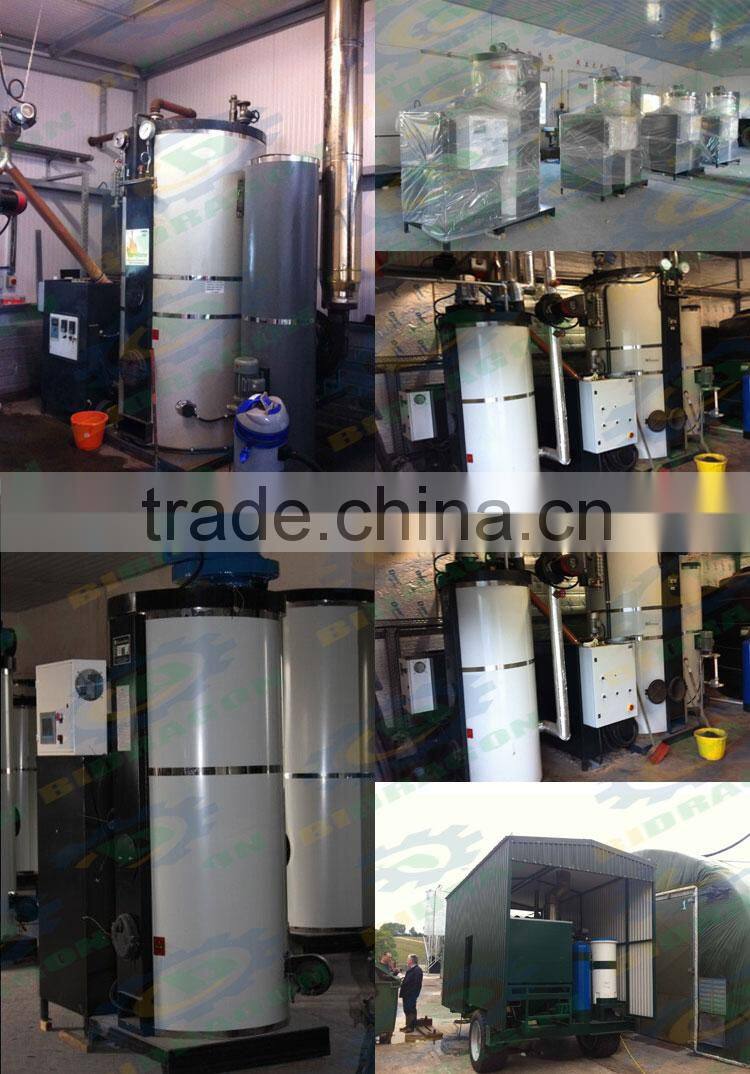

The factory of biomass pellet fired boiler:
Our philosophy
Satisty the custom’s demand ,push towards enterprise development though quality .With trust and opportunity by constant application of creative work , realize new storage type ,and promote the development of human society.
FOR MORE INFORMATION PLEASE KINDLY CONTACT Miss.Jane Lee. SKYPE: Bidragon2014
