Specifications

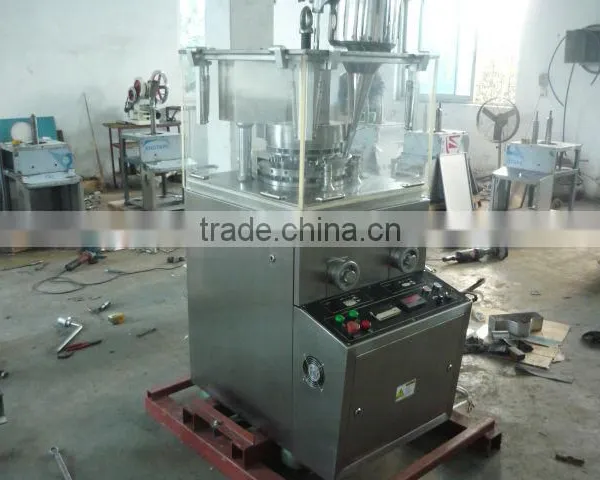

ZP33F 35F 37F Hight speed rotary tablet pressApplication:
That machine is the latest High Speed Rotary Press Machine in current industry,which development and innovation basis on board and at home technical by our factory;with in high speed and high capacity and uesd to various normal or abnormity tablets pressing;It's the best choicefor large Industries of Pharmaceutical,Chemical,Foodstuff,Plastic Electronic producing.
Features:
1.The machine designed for fully enclosed structure;it has the advantage of good appearance in design,high efficiency,lower energy consumption and etc.
2.The material contact parts is made of stainless steel,the surface of turntable deal with polished to prevent cross pollution which meet the GMP requirements.
3.It??s equipped with Plexi-glass perspective window for tablet producing observation Eacwoning and maintenance.
4.Driving system is equipped with oil box and running under oil,easy for heat dissipation and durable,non-pollution.
5.It adopts import frequency timing,with hydraulic system.
6.With the Over-loading protection.
7.The Punch Die of that machine is current used to ZP19 ZP33B type.
Main Technical Parameters:
| Die Amount | 33 stations | 35 stations | 37 stations |
| Max.Pressure | 80 KN | 80 KN | 80 KN |
| Max.Filling Depth | 17 mm | 17 mm | 17 mm |
| ure Diameter | 13 mm(lrregular) | 13 mm(lrregular) | 13 mm(lrregular) |
| Max.tablet Thickness | 7 mm | 7 mm | 7 mm |
| RPM | 16-36 (r/min) | 16-36 (r/min) | 16-36 (r/min) |
| Working Capactiy | 140000 (P/h) | 150000 (P/h) | 160000 (P/h) |
| Power supply | 3KW380V 50HZ(220V 60HZ) | 3KW380V 50HZ(220V 60HZ) | 3KW380V 50HZ(220V 60HZ) |
| Overall Dimension | 1300X1200X1750 (mm) | 1300X1200X1750 (mm) | 1300X1200X1750 (mm) |
| Weight | 2000 (kg) | 2000 (kg) | 2000 (kg) |
