1/2 Waveplates, Mounted Zero Order WavePlates 588nm
Introduction for Zero Order Waveplates

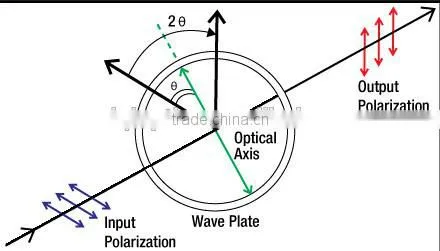

Zero order waveplate is a quarter or half-wave retarder made from two plates of quartz within their fast axes crossed. The difference in thickness between the two plates determines the retardance. Zero-order retarders provide accurate retardance over a broad range of wavelengths and are more durable than single element retarders.
Zero order waveplate shows better performance than multiple order waveplates, it has broad bandwidth and a lower sensitivity to temperature and wavelength changes. It should be considered for more critical application.
- Cemented by Epoxy
- AR coated R<0.2%
- Better Temperature Bandwidth
- Wide Wavelength Bandwidth
Mainly Specifications | |
|
Dimension Tolerance
|
+0/-0.2mm |
|
Wavefront Distortion
|
<lambda/8 at 632.8nm |
|
Retardation Tolerance
|
<Lambda/500 |
|
Wavelength Range
|
240-2100nm |
|
Parallelism
|
<1arc second |
|
Surface Quality
|
20/10S/D |
|
Coating
|
R<0.2% on both surfaces at center wavelength |
