40/20 Polished Right Angle Glass Triangular Prism for Sale
US$ 18 - 55
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jilin, China
Brand Name:
CCRQ
Model Number:
90 degree right angle prism
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun Beijing Shenzhen Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
N-BK7 Uncoated Corner Cube Retroreflectors PrismUS$ 66.00 - 70.00MOQ: 1 Piece -
N-BK7 Corner Cube Retroreflectors Prism,38.1mm Corner Cube PrismUS$ 66.00 - 70.00MOQ: 1 Piece
-
N-BK7 Corner Cube Retroreflectors Prism,Laser RetroreflectorsUS$ 66.00 - 70.00MOQ: 1 Piece
-
N-BK7 Corner Cube Retroreflectors Prism, Unmounted Retroreflector PrismsUS$ 66.00 - 70.00MOQ: 1 Piece
-
N-BK7 Uncoated Corner Retroreflectors, Corner Cube Retroreflectors PrismUS$ 66.00 - 70.00MOQ: 1 Piece
Place of Origin
Jilin, China
Brand Name
CCRQ
Model Number
90 degree right angle prism
Material
Other, Glass, BK7, K9,Fused Quartz,Sapphire
Usage
Optical
Structure
Other, prism
Shape
Plano

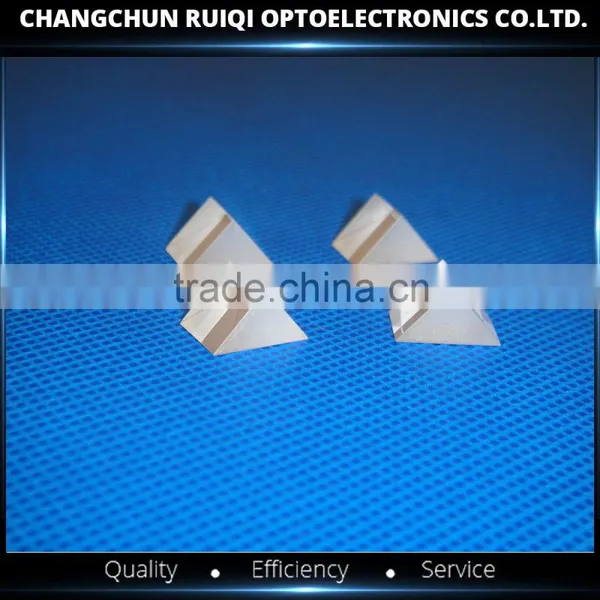

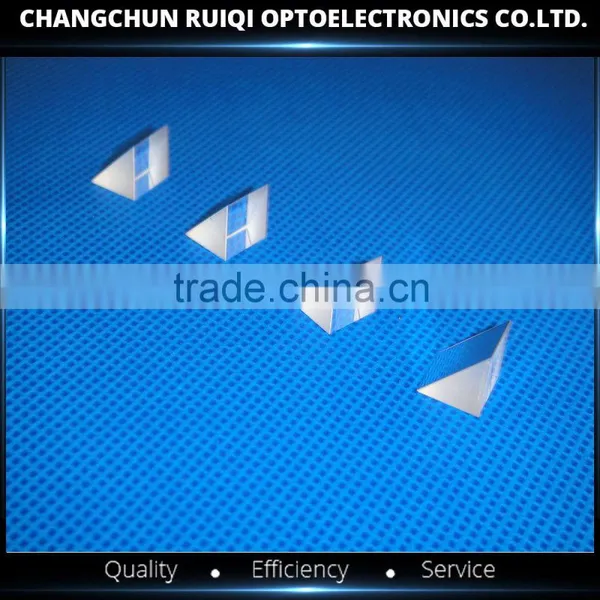

40/20 polished right angle glass triangular prism for sale
Right-angle prism is the most common type of prisms. It is used to re-direct a beam of light at 90 degrees from the the incident direction or used as a 180 beam retro-reflector. They are often coated with various optical coatings to form cubic beam splitters and color separation cubes used in various projection systems.
- High transmission can be achieved, using the hypotenuse face in total internal reflection (TIR), with an antireflection coating on the entrance and exit faces.
- The prism can be used as an internal or external mirror by applying a metallic coating on the hypotenuse.
- We also offer fused silica prisms, and precision grade and ultra-precision grade glass prisms with tighter manufacturing tolerances.
.
Technical Specifications:
| Material | BK7,Fused Silica,Sapphire,CaF2 as customer request |
| Dimension | 5mm 10mm 20mm 25mm 35mm 50mm |
| Dimension Tolerance | +/-0.15mm, +/-0.2mm, +0/-0.1mm as request |
| Clear Aperture | >90% |
| Surface Quality | 60/40 |
| Flatness | lambda/4 per 25nm at 632.8nm |
| Angle Tolerance | <3' |
| Edge | Fine ground and beveled |
| Coating | Anti-Reflective (AR) Coatings,Single layer MgF2 coating,Multilayer Broadband AR Coating |
