Home > Instruments & Meters > Optical Lens & Instrument > Optical Lens > Optical Lens Generator,optical BK7 Powell Lenses
US$ 19.5 - 30
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jilin, China
Brand Name:
CCRQ
Model Number:
PW-1
Payment & Shipping
Payment Methods:
Port of Shipment:
changchun Beijing Shenzhen Dalian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fan Angle 5 ,10 ,30 ,45 ,53 ,55 ,60 ,70 ,85 ,90 ,110 .120 .Laser Powell LensesUS$ 18 - 25MOQ: 1 Piece -
Laser Beam Line Generator Powell Lens, BK7 Glass Powell LensUS$ 18 - 25MOQ: 1 Piece
-
6mm Powell Lenses ,laser Powell LensesUS$ 18 - 25MOQ: 1 Piece
-
Optical Laser Line Generator Lenses,Powell LensesUS$ 18 - 25MOQ: 1 Piece
-
6mm 9mm BK7 Glass Powell Lens, Laser Line Powell LensUS$ 18 - 25MOQ: 1 Piece
Place of Origin
Jilin, China
Brand Name
CCRQ
Model Number
PW-1
Material
Other, Glass, BK7,N-SF6,N-SF5
Usage
Optical
Structure
Other, convex cylindrical
Shape
Cylindrical

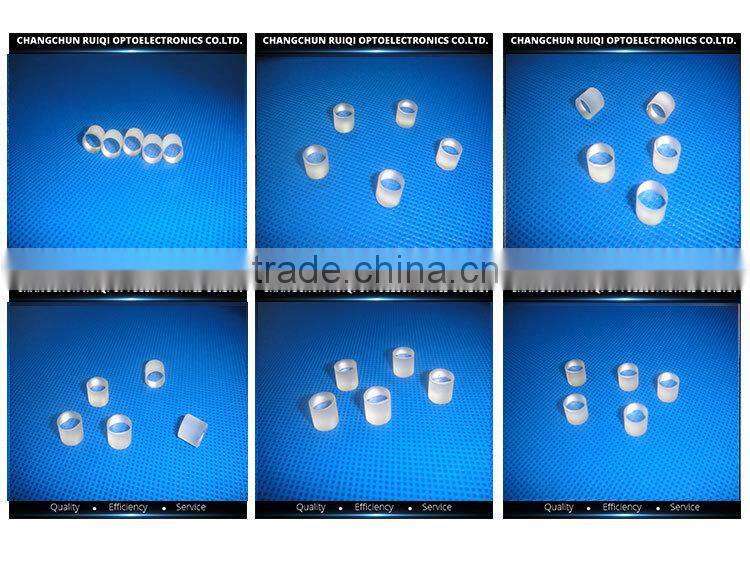

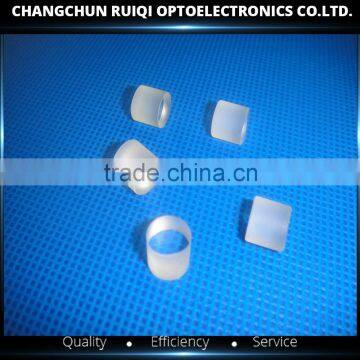

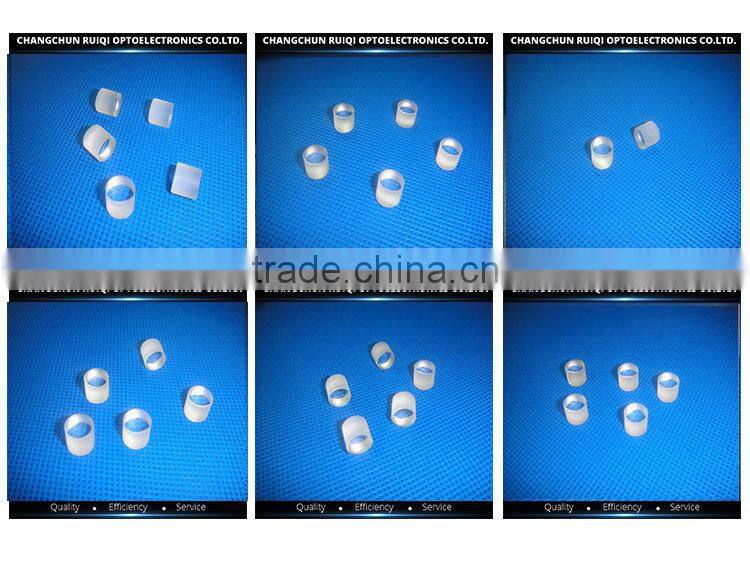

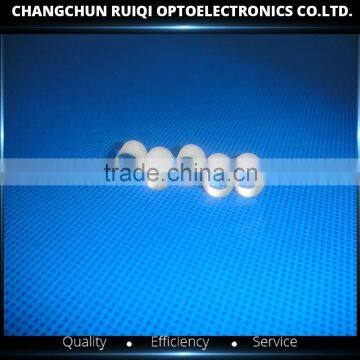

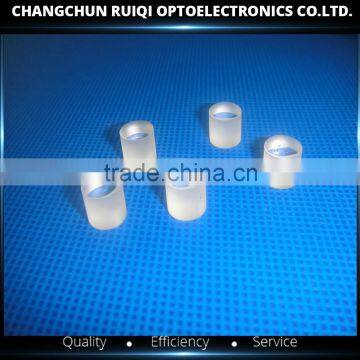

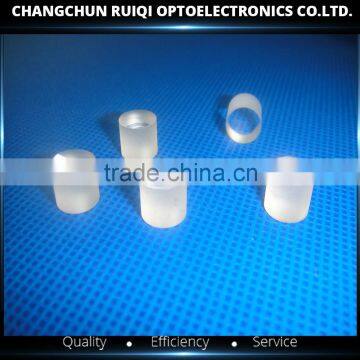

optical lens Generator,optical BK7 powell lenses
Introduction for powell lenses

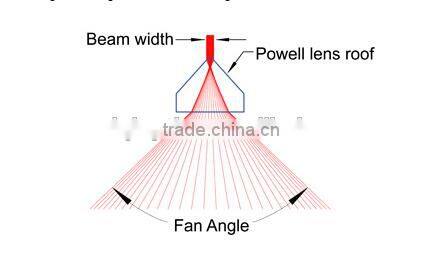

Changchun Ruiqi optimized for a 1mm diameter laser beam input, our Laser Line Generator Lenses convert laser beams into uniform, straight lines. Unlike cylindrical lenses, which generate Gaussian beam profiles with hot-spot center points and fading edges, Laser Line Generator Lenses provide an even distribution of energy along the length of the entire line.
Application:
- Ideal for Alignment and Machine Vision Applications
- Multiple Fan Angles Available
- Creates Uniform, Straight Line
Specification

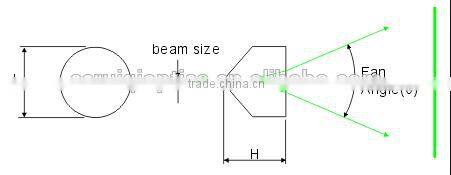

Fan angle | materials | wavelength(nm) | Input beam(mm) |
5° | BK7 | 532,650 | 0.8-1,2-3,5 |
10° | BK7 | 532,650 | 0.8-1,2-3,5 |
30° | BK7 | 532,650 | 0.8-1,2-3,5 |
45° | SF6 | 532,650 | 0.8-1,2-3,5 |
53° | BK7 | 532,650 | 0.8-1,2-3,5 |
60° | SF6 | 532,650 | 0.8-1,2-3,5 |
70° | SF6 | 532,650 | 0.8-1,2-3,5 |
85° | SF6 | 532,650 | 0.8-1,2-3,5 |
90° | SF6 | 532,650 | 0.8-1,2-3,5 |
