Home > Instruments & Meters > Optical Lens & Instrument > Optical Lens > BK7/K9 Uncoated/ AR Coated Right-Angle Prism, 45 x 45 x 63.6 mm
BK7/K9 Uncoated/ AR Coated Right-Angle Prism, 45 x 45 x 63.6 mm
US$ 15 - 65
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jilin, China
Brand Name:
CCRQ
Model Number:
CCRQ-right angle prism
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun Beijing Shenzhen Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Right Angle Optical Glass Round Edges/Round Corners,Surveying PrismsUS$ 15 - 60MOQ: 5 Pieces -
Laser Line Generator Lenses,450nm BK7 Powell LensesUS$ 18 - 25MOQ: 1 Piece
-
Optical Lens Generator,optical BK7 Powell LensesUS$ 19.5 - 30MOQ: 1 Piece
-
Fan Angle 5 ,10 ,30 ,45 ,53 ,55 ,60 ,70 ,85 ,90 ,110 .120 .Laser Powell LensesUS$ 18 - 25MOQ: 1 Piece
-
Laser Beam Line Generator Powell Lens, BK7 Glass Powell LensUS$ 18 - 25MOQ: 1 Piece
Place of Origin
Jilin, China
Brand Name
CCRQ
Model Number
CCRQ-right angle prism
Material
Other, Glass, BK7,Fused Quartz Crystal
Usage
Optical
Structure
Other, right angle prism
Shape
Plano
BK7/K9 Uncoated/ AR coated Right-Angle Prism, 45 x 45 x 63.6 mm
Right-angle prism is the most common type of prisms. It is used to re-direct a beam of light at 90 degrees from the the incident direction or used as a 180 beam retro-reflector. They are often coated with various optical coatings to form cubic beam splitters and color separation cubes used in various projection systems.
- High transmission can be achieved, using the hypotenuse face in total internal reflection (TIR), with an antireflection coating on the entrance and exit faces.
- The prism can be used as an internal or external mirror by applying a metallic coating on the hypotenuse.
- We also offer fused silica prisms, and precision grade and ultra-precision grade glass prisms with tighter manufacturing tolerances.

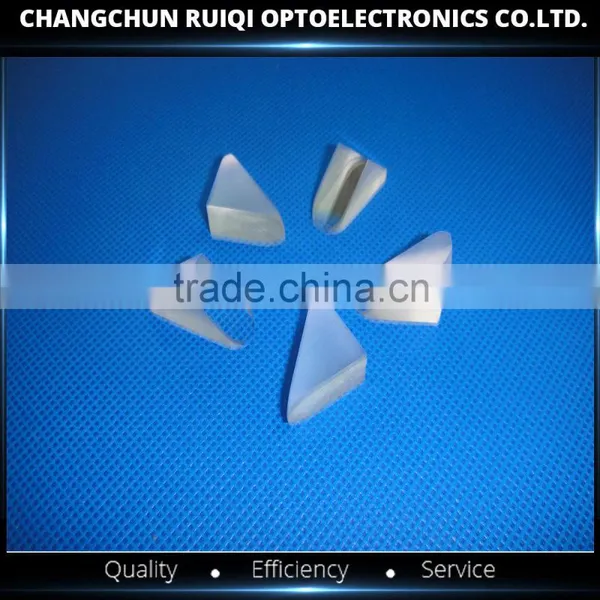

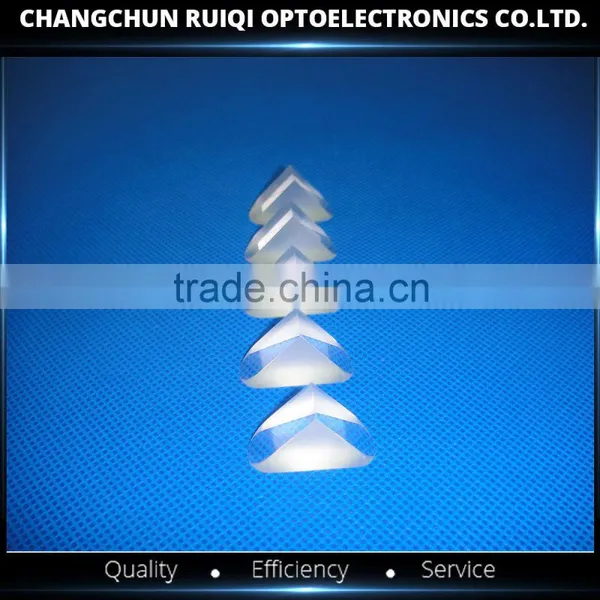

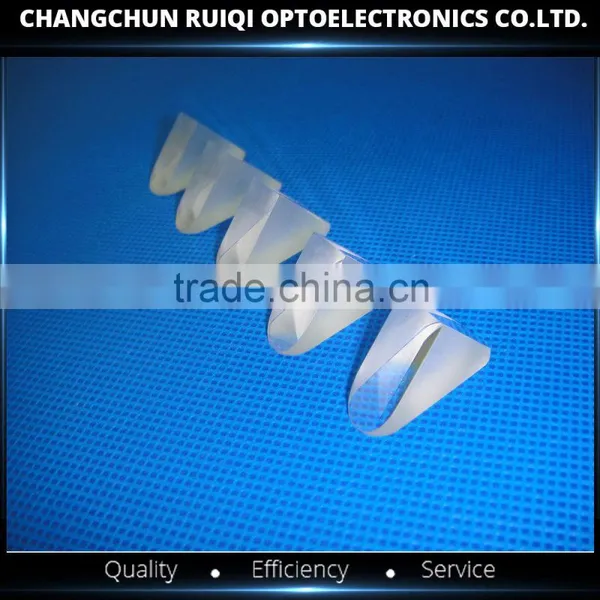

These prisms for sale have round edged as pictures. Use for decoration and obeservtional uses.These may have slight irregularities within the glass or some chipping along edges
.
Technical Specifications:
| Material | BK7,Fused Silica as customer request |
| Length of Legs | 5mm 7mm 10mm 15mm 20mm30mm 40mm 50mm |
| Dimension Tolerance | +/-0.15mm, +/-0.2mm, +0/-0.1mm as request |
| Length of Hypotenuse |
63.6mm |
| Surface Quality | 60/40 |
| Flatness | lambda/4 per 25nm at 632.8nm |
| Angle Tolerance | +/-2arcmin |
| Edge | round |
| Ray Deviation |
90° |
| Coating | Anti-Reflective (AR) Coatings,Multilayer Broadband AR Coating |
