20mm Round Corners Optical Glass Quartz Crystal Right Angle Prism
US$ 15 - 40
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jilin, China
Brand Name:
CCRQ
Model Number:
CCRQ-right angle prism
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun Beijing Shenzhen Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
JGS1 Right Angle Optical Prism - Rounded CornersUS$ 15 - 55MOQ: 5 Pieces -
BK7/fused Silica Right Angle Prism of Fingerprint Sensor/scannerUS$ 15 - 60MOQ: 5 Pieces
-
3x3x4cm Right Angle Optical Glass Round Edges/Round Corners Quality ChoiceUS$ 15 - 55MOQ: 5 Pieces
-
BK7/K9 Uncoated/ AR Coated Right-Angle Prism, 45 x 45 x 63.6 mmUS$ 15 - 65MOQ: 5 Pieces
-
Right Angle Optical Glass Round Edges/Round Corners,Surveying PrismsUS$ 15 - 60MOQ: 5 Pieces
Place of Origin
Jilin, China
Brand Name
CCRQ
Model Number
CCRQ-right angle prism
Material
Other, Glass, BK7,Fused Quartz Crystal,Sapphire
Usage
Optical
Structure
Other, right angle prism
Shape
Plano

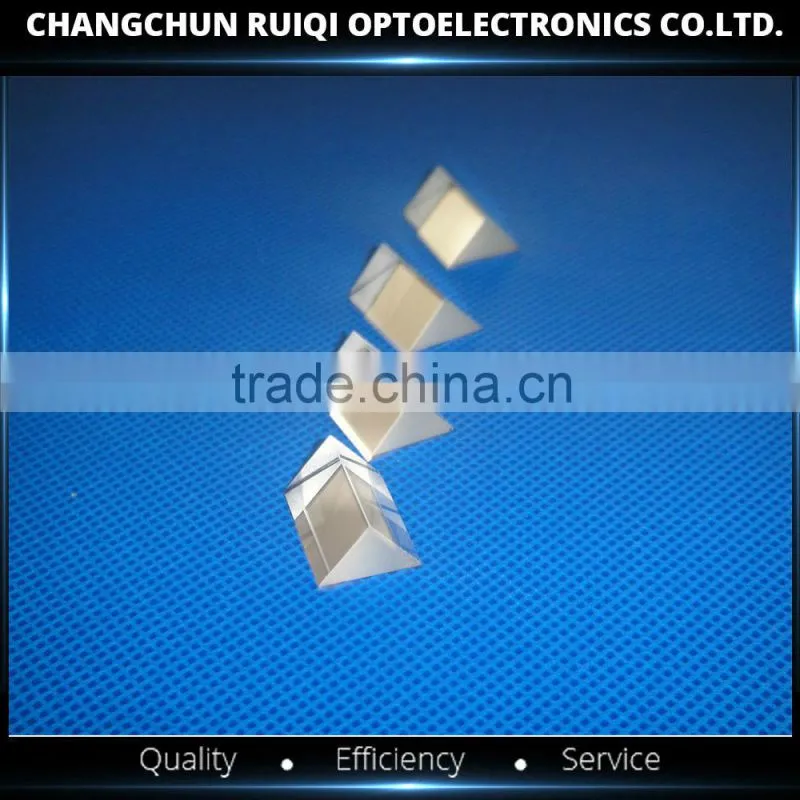

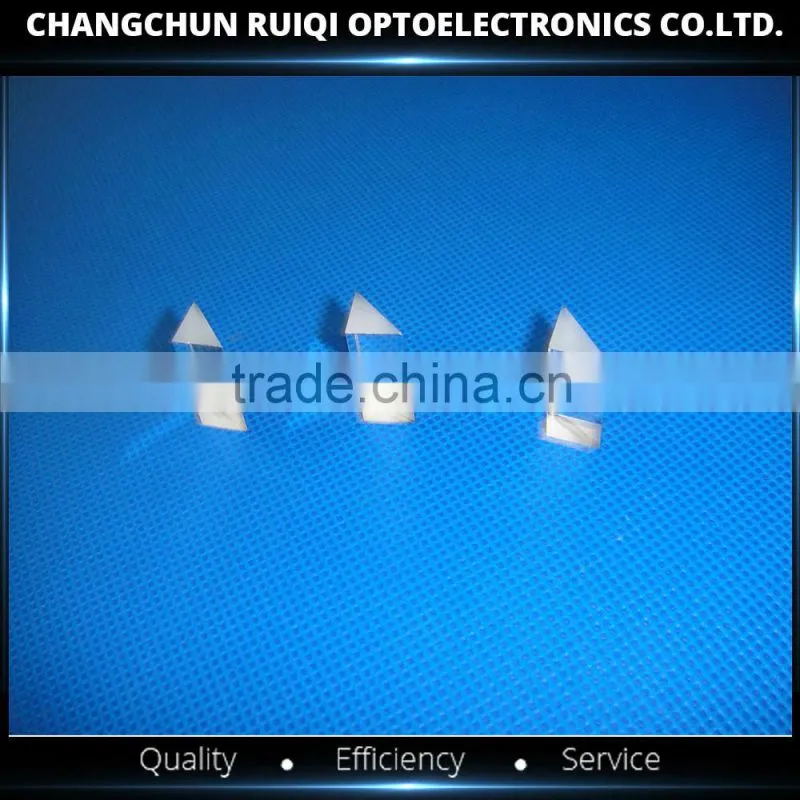

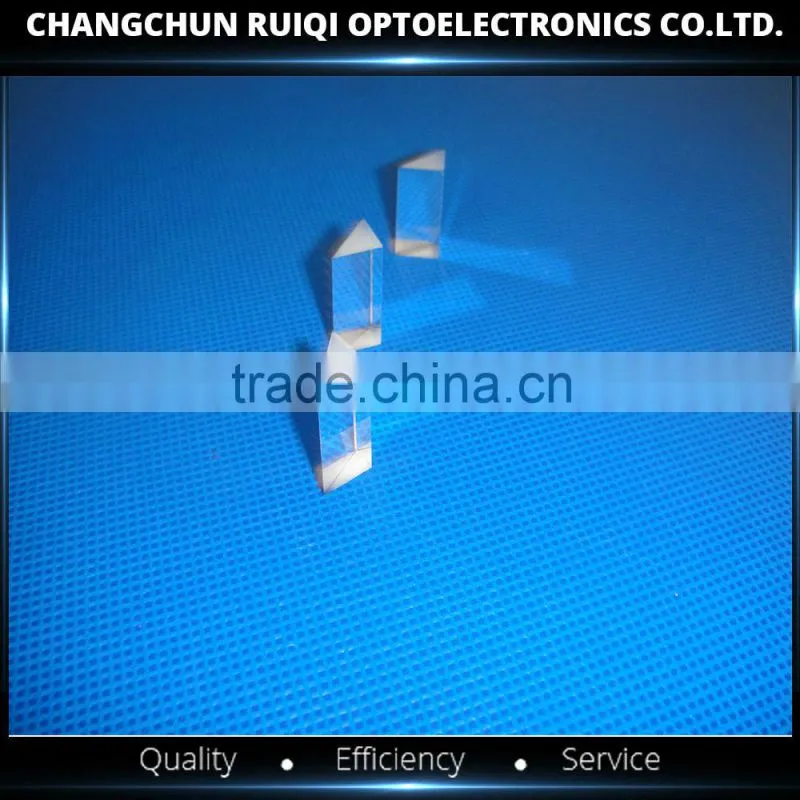

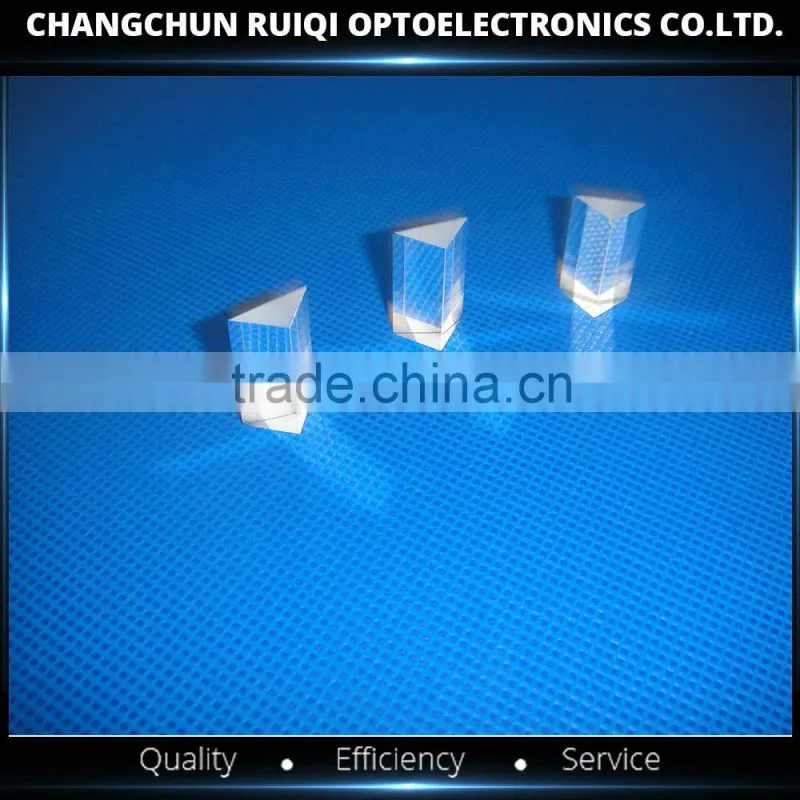

20mm Round Corners Optical Glass Quartz crystal Right Angle Prism
Right-angle prism is the most common type of prisms. It is used to re-direct a beam of light at 90 degrees from the the incident direction or used as a 180 beam retro-reflector. They are often coated with various optical coatings to form cubic beam splitters and color separation cubes used in various projection systems.
- High transmission can be achieved, using the hypotenuse face in total internal reflection (TIR), with an antireflection coating on the entrance and exit faces.
- The prism can be used as an internal or external mirror by applying a metallic coating on the hypotenuse.
- We also offer fused silica prisms, and precision grade and ultra-precision grade glass prisms with tighter manufacturing tolerances.

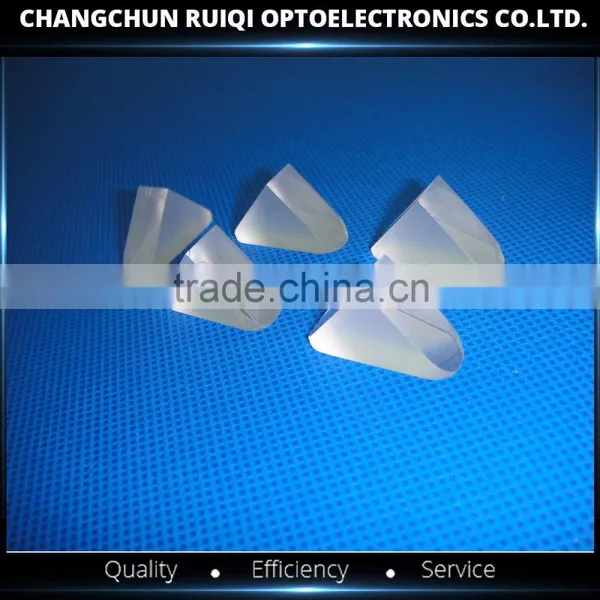

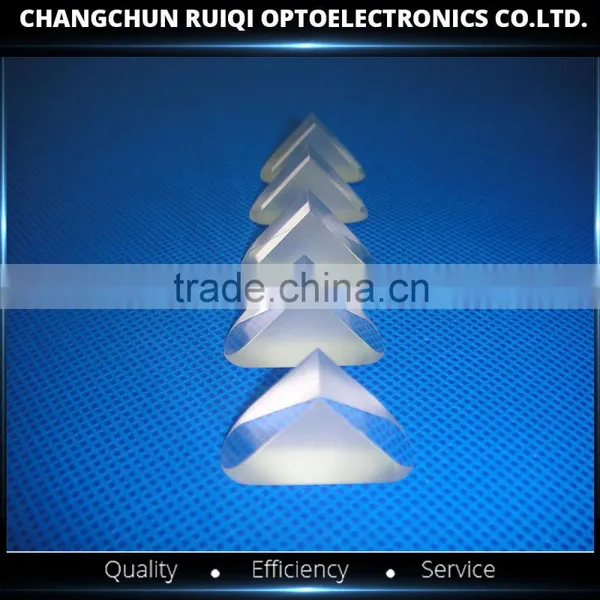

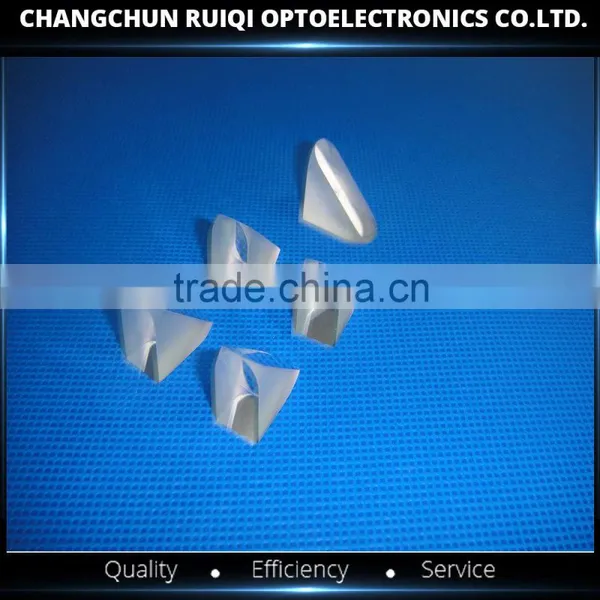

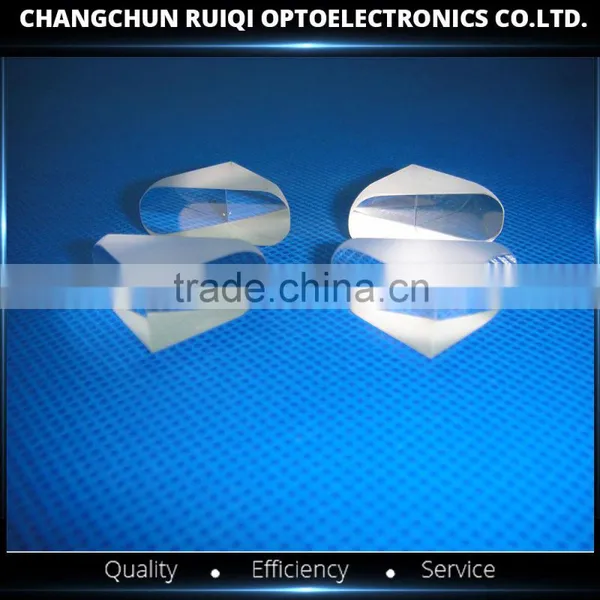

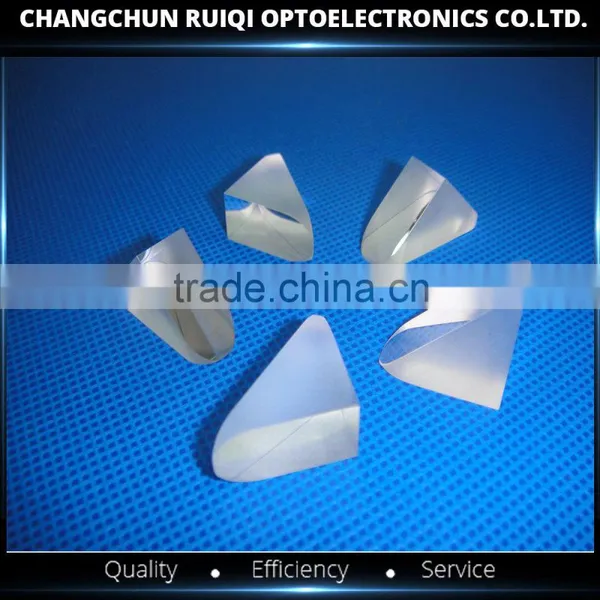

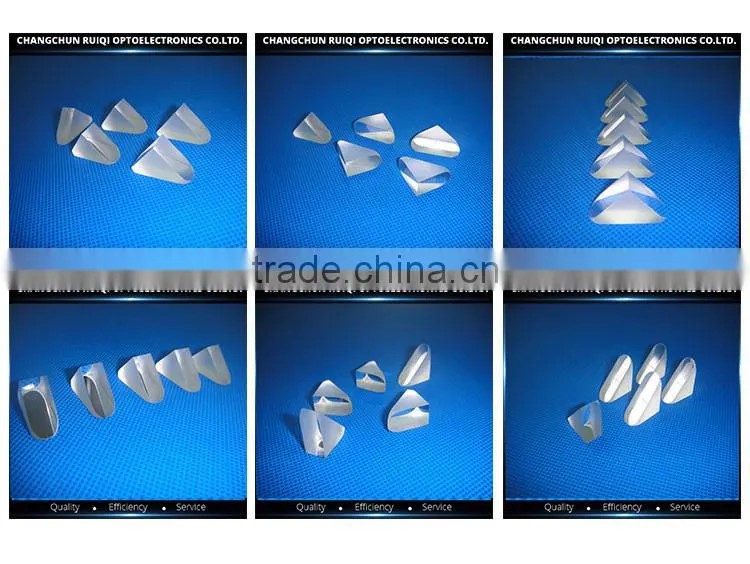

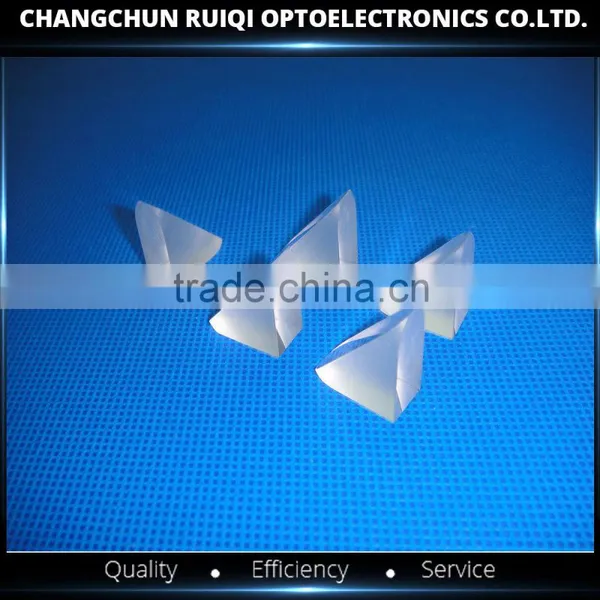

These prisms for sale have round edged as pictures. Use for decoration and obeservtional uses.These may have slight irregularities within the glass or some chipping along edges
.
Technical Specifications:
| Material | BK7,Fused Silica,Sapphire,CaF2 as customer request |
| Dimension | 5mm 7mm 10mm 15mm 20mm |
| Dimension Tolerance | +/-0.15mm, +/-0.2mm, +0/-0.1mm as request |
| Clear Aperture | >90% |
| Surface Quality | 60/40 |
| Flatness | lambda/4 per 25nm at 632.8nm |
| Angle Tolerance | <3' |
| Edge | Fine ground and beveled |
| Coating | Anti-Reflective (AR) Coatings,Single layer MgF2 coating,Multilayer Broadband AR Coating |
