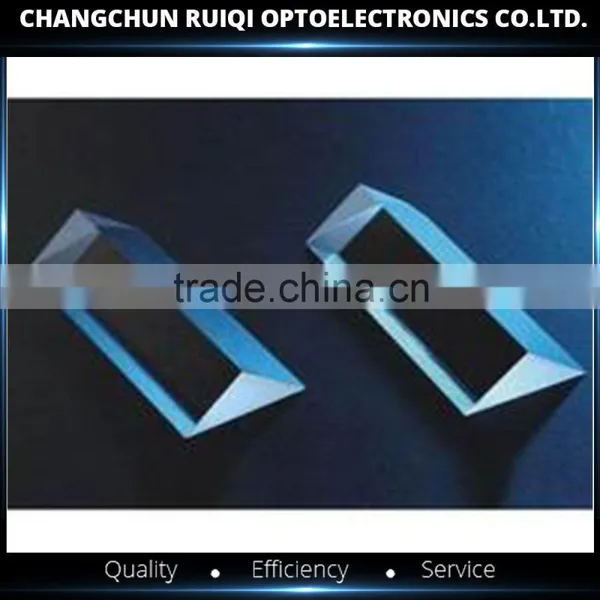

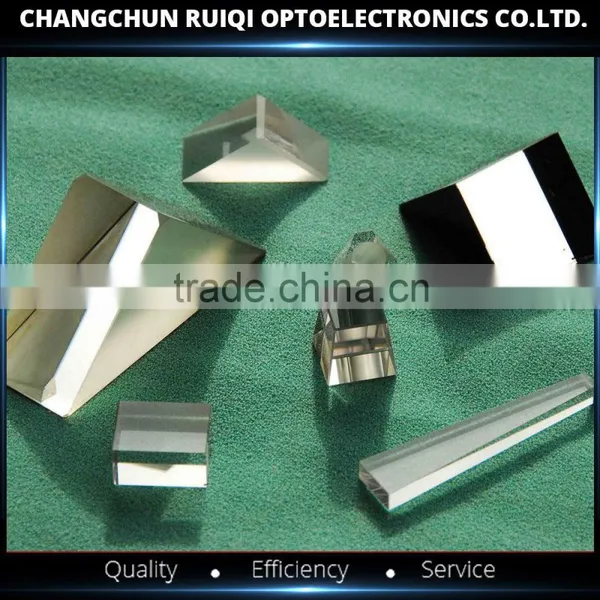

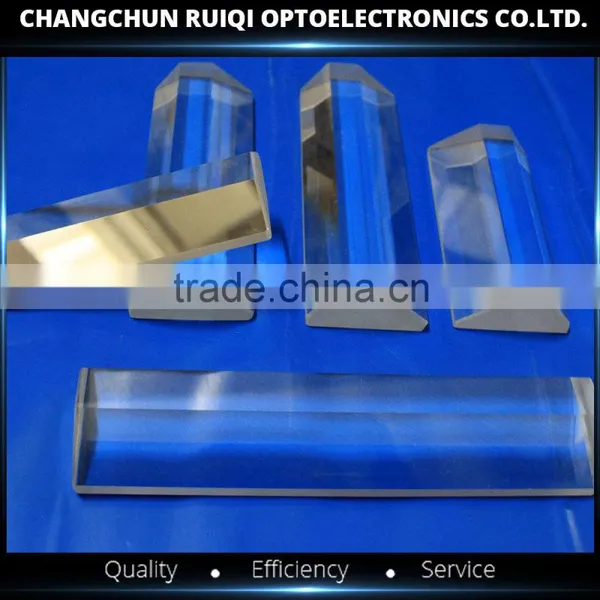

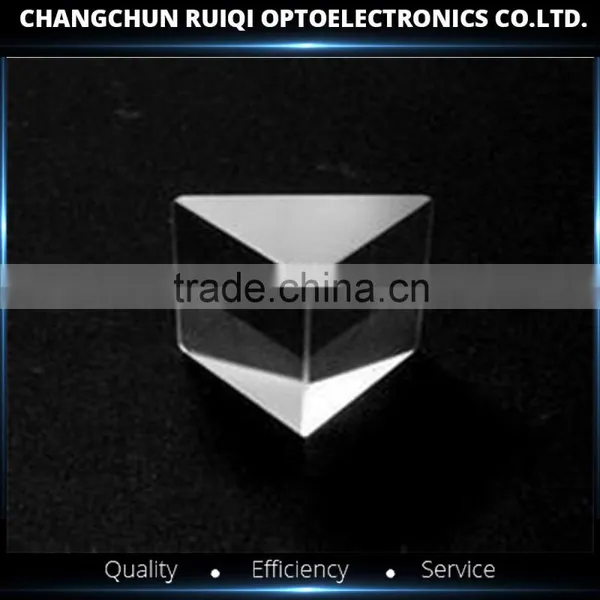

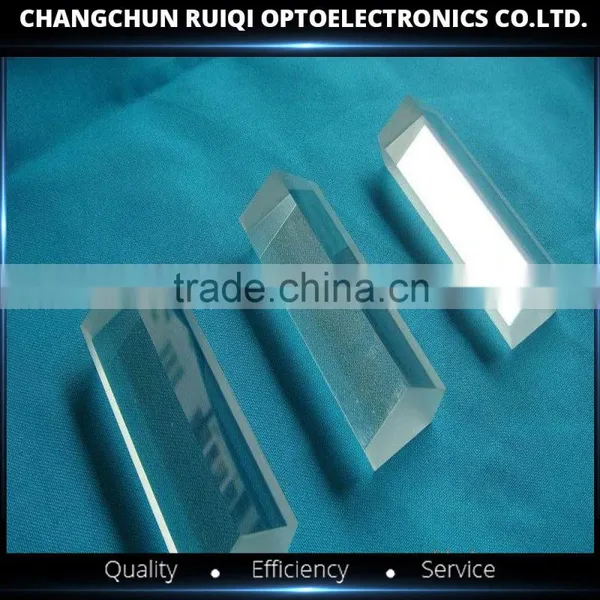

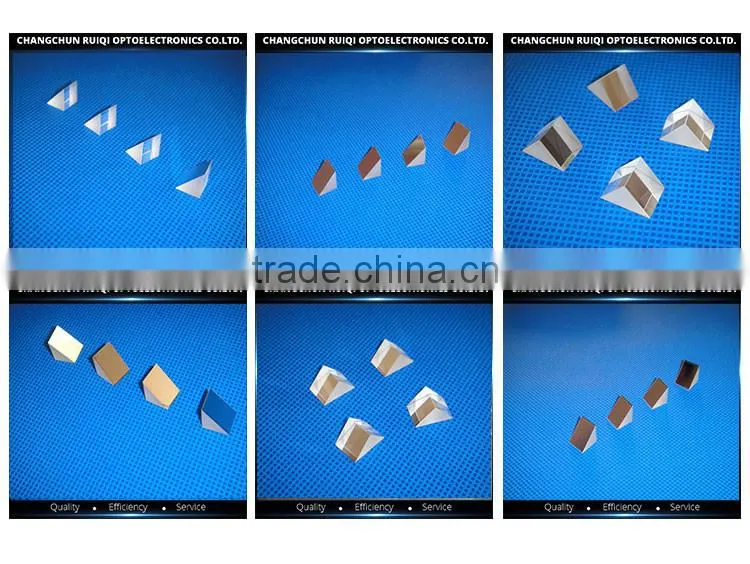

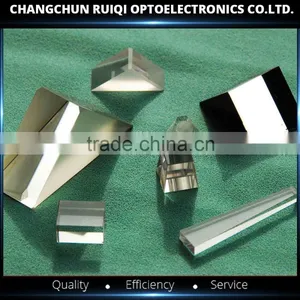

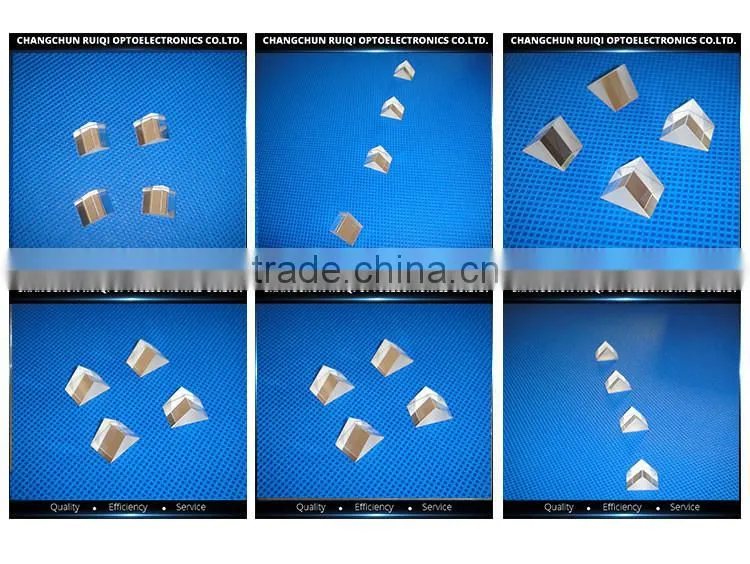

Surface Quality 60/40 Prism for Periscope,Right angle triangular prism with mirror coating for periscope
The Total Internal Reflection of Light in Prisms.A right angle prism can be used to change the direction of a light ray by 90 degrees or 180 degrees.
A prism can also be used to disperse white light into a spectrum.How is a Right Angle Prism used toChange the Direction of a Light Ray by 90 degrees?A right angle prism is used to change the direction of light
by 90 degrees as shown in the picture below.
The light ray enters the prism along a normal and continues straight on until it hits the back face of the prism.Total internal reflection occurs here because light strikes the surface at 45 degrees
which is greater than the critical angle.The light ray then emerges from the prism along a normal
and so continues straight through the glass surface.This type of prism can be used in a periscope.
We could provides many kinds of high precision prisms, including Penta Prism, Beamsplitter Penta Prism, Right Angle Prism, and Corner Cube. Our micro Penta Prism and Right Angle Prism are widely used in optical communication, such as optical switches
A periscope prism or a periscope installation including such a prism in which in order to avoid reflection from said prism back to the object under observation, the entry surface, any internally reflecting surfaces and the exit surface of said prism are arranged to be at angles other than right angles to the path of the light incident thereon
Technical Specifications:
| Material | BK7,JGS1 Sapphire,CaF2, MgF2 as customer request |
| Dimension | 10mm -150mm |
| Dimension Tolerance | +/-0.15mm, +/-0.2mm, +0/-0.1mm as request |
| Clear Aperture | >90% |
| Surface Quality | 40/20 |
| Flatness | lambda/4 per 25nm at 632.8nm |
| Angle Tolerance | <3' |
| Edge | Fine ground and beveled |
| Coating | Anti-Reflective (AR) Coatings,Single layer MgF2 coating,Multilayer Broadband AR Coating |
