BK7/ UV Fused Silica/Sapphire Glass Wedge Window Quality Choice
US$ 10 - 60
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jilin, China
Brand Name:
CCRQ
Model Number:
optical glass wedge window
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun Beijing Shenzhen Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BK7/ JGS1 Optical Equilateral Dispersing PrismsUS$ 22 - 65MOQ: 5 Pieces -
Optical Glass Crystal Equilateral Dispersing PrismsUS$ 19.5 - 60MOQ: 10 Pieces
-
BK7/Fused Silica Optical Glass Triangular PrismsUS$ 18 - 65MOQ: 5 Pieces
-
BK7/K9 JGS1 Sapphire Optical Glass Equilaterial Triangular PrismsUS$ 17.5 - 55MOQ: 5 Pieces
-
BK7 Optical Wedge PrismUS$ 10 - 60MOQ: 5 Pieces
Place of Origin
Jilin, China
Brand Name
CCRQ
Model Number
optical glass wedge window
Material
Other, Glass, BK7, K9,Fused Quartz, sapphire,CaF2 etc
Usage
Optical
Structure
Other, prism
Shape
Plano

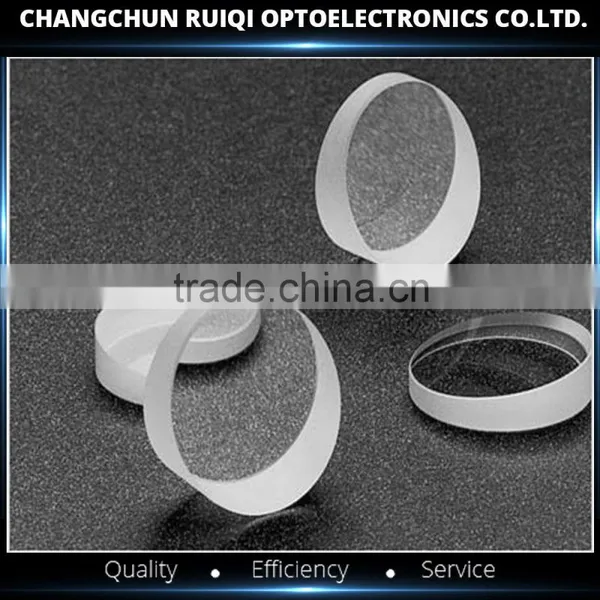

BK7/UV fused silica/Sapphire glass wedge window
Wedge prisms can be applied singularly, to deviate a laser beam a specified angle,or with an additional wedge prism for laser beam steering applications
- When making use of one single wedge prism the incident beam of light is refracted at a particular deviation angle. Rotating the wedge causes the deviated beam trace to specify out a circle with an angle equivalent to two times the original deviation angle.
- While using a pair of wedge prisms - due to the fact that every prism is able to trace out a circle of two times the deviation angle, the complete deviation by two prisms is 4 times the deviation angle.
- By controlling the angle of every prism individually, the beam can be positioned at just about any position within the circle. This often is used for scanning with a beam different areas in imaging applications. Additionally, 2 wedge prisms enable to fix an elliptical figure of a diode output (anamorphic pair for beam shaping).
N-BK7 Wedge Prisms are best for laser beam steering applications and are offered in 2°to 10°.Moreover, they can be quoted uncoated as well as coated with any of three standard AR coatings below
.
.
Wedged Substrate,BK7,Fused silica,CaF2,Sapphire,0.5/1/2/3degree
- BK7, Fused Silica and Excimer Grade Fused Silica
- Available in wedge angles 0.5, 1, 2 and 3 degrees
- Wedge angle used to reduce reflection from rear surface
Technical Specifications:
| Material | BK7,UV Fused Silica,Sapphire,CaF2 as request |
| Diameter | 10mm,15mm,20mm,25mm,50mm,100mm |
| Angle Tolerance |
+/-3arc min, +/-5arc min,+/-30'' |
| Bevel |
0.2mm x 45° typical |
| Clear Aperture |
>90% |
| Dimension tolerance | +0/-0.1mm |
surface flatness |
lambda/4 |
thickness |
3mm, 5mm,8mm |
| wedge angle |
0.5°, 1°, 2°,3°,4°,6°,8°,10° as request |
| Coating |
A: AR Coating 350nm-650nm B: AR Coating 650nm-1050nm C: AR Coating 1050nm-1580nm |
