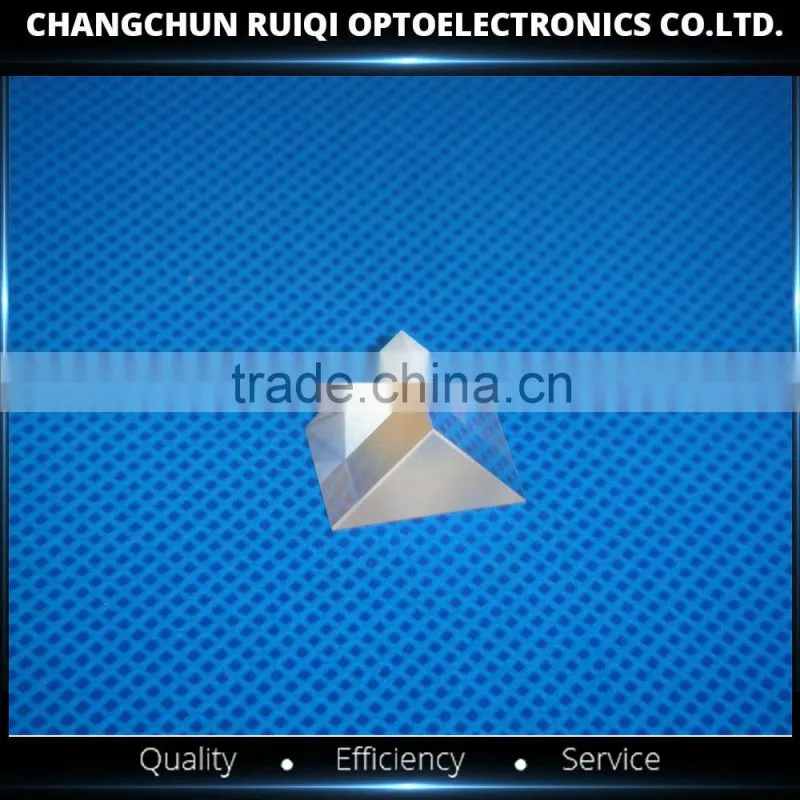

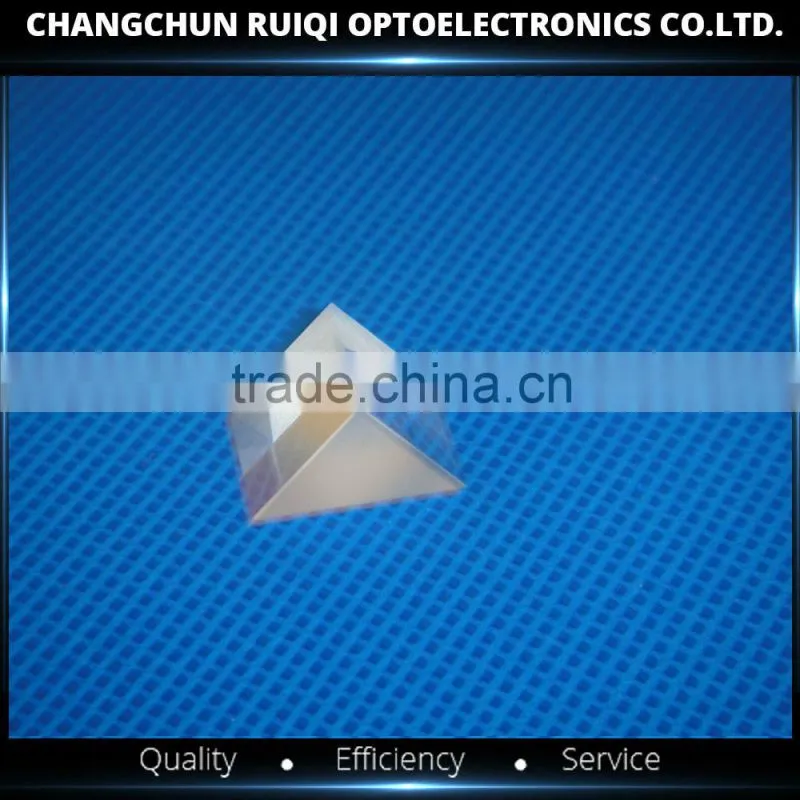

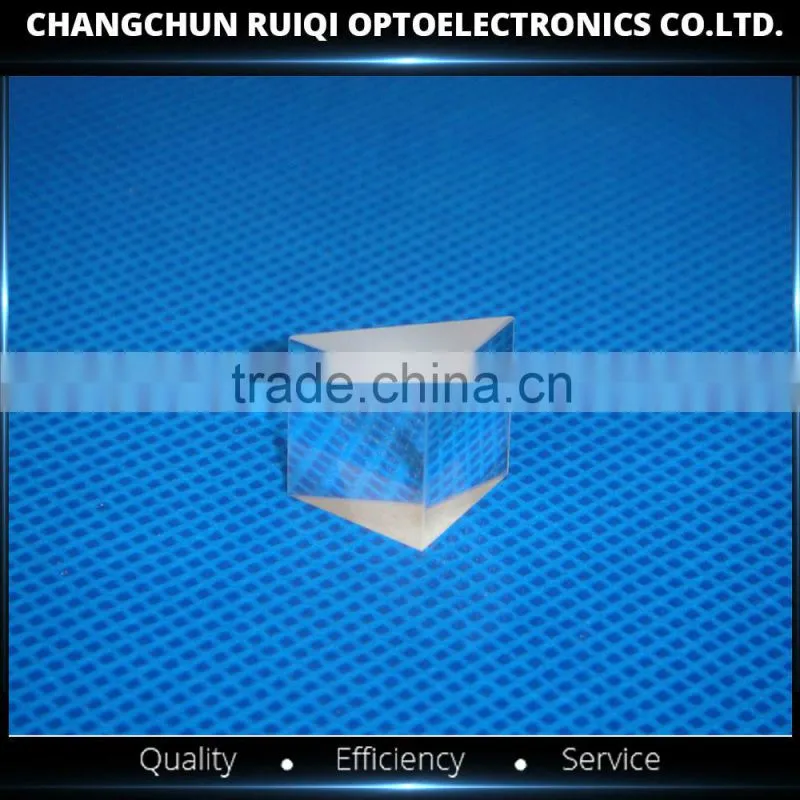

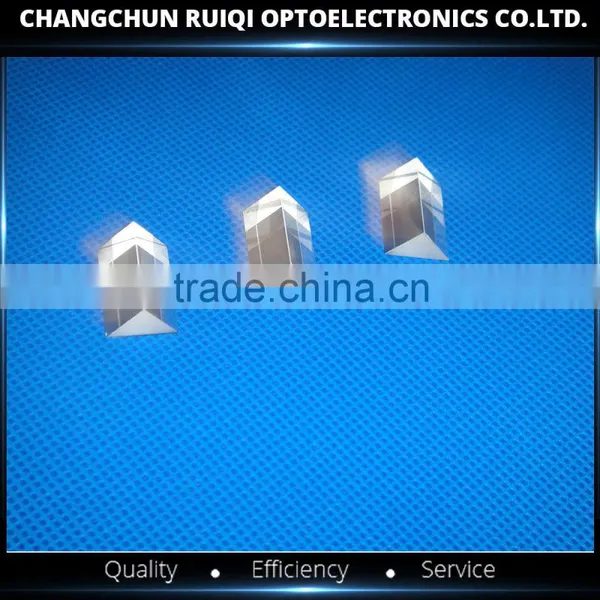

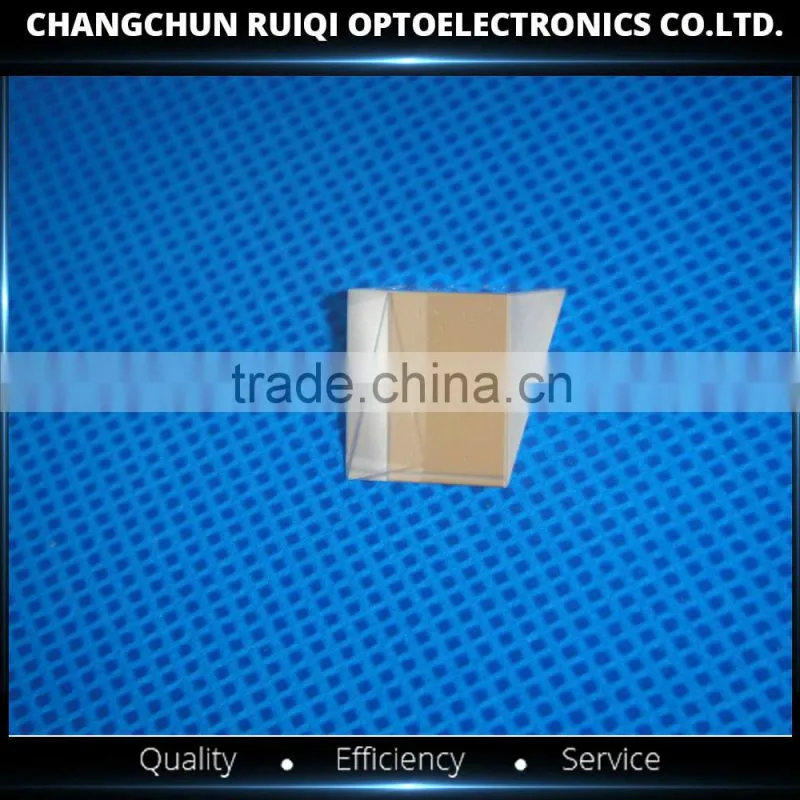

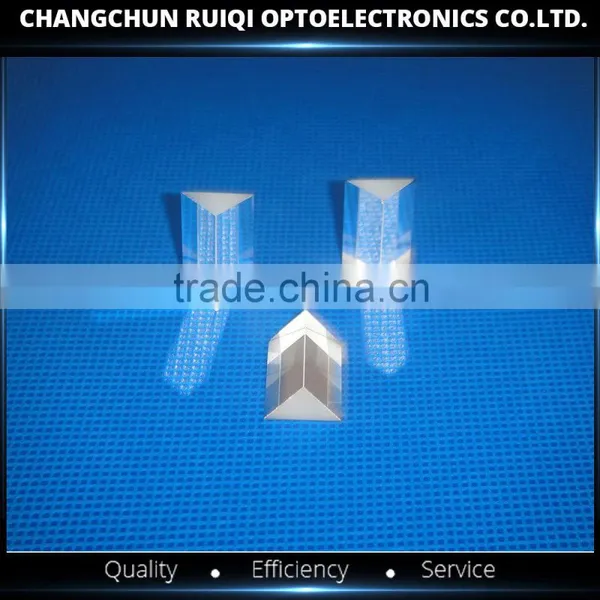

BK7/K9 JGS1 Sapphire Optical Glass Equilaterial triangular prisms
We often come across with prisms in mathematics and optics. A prism is a three-dimensional transparent object which has flat surfaces. It is made up of at least three flat and polished surfaces. In prism, there are at least two surfaces that are inclined at an angle from each other. In geometry, there are different types of prisms - Triangular prisms, rectangular prisms, polygonal prisms etc
Triangular prism is the most useful prism in geometry as well as in optical physics. Prisms are usually made from any transparent material such as - UV Grade Fused Silica,BK7 G1 Fused Quartz, Commercial Grade,Sapphire,CaF2,MgF2 and BK7 Optical Glass.
Technical Specifications:
| Material | BK7,Fused Silica,Sapphire,CaF2 as customer request |
| Dimension | 5mm 15mm 20mm 30mm as customer request custom made |
| Dimension Tolerance | +/-0.15mm, +/-0.2mm, +0/-0.1mm as request |
| Clear Aperture | >90% |
| Surface Quality | 60/40 |
| Flatness | lambda/4 per 25nm at 632.8nm |
| Angle Tolerance | <3' |
| Edge | Fine ground and beveled |
| Coating | Anti-Reflective (AR) Coatings,Single layer MgF2 coating,Multilayer Broadband AR Coating |
