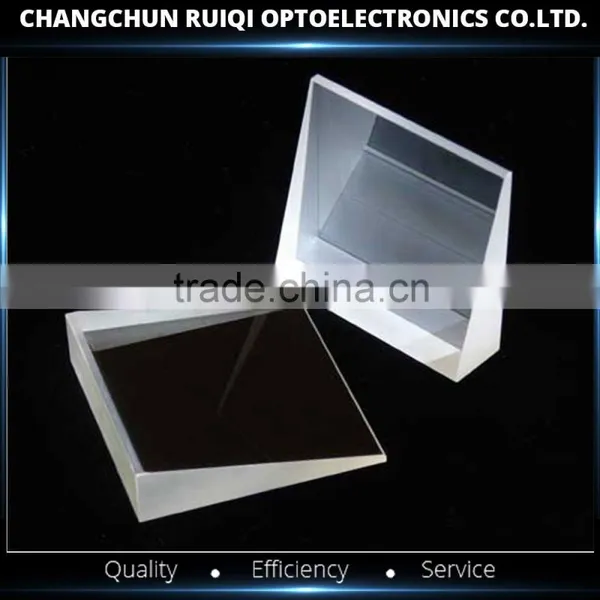

BK7/K9 Optical Glass Wedge Prism, Fused Silica Wedge Prism
US$ 18.5 - 60
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jilin, China
Brand Name:
CCRQ
Model Number:
optical glass wedge prism
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun Beijing Shenzhen Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Optical Glass Fused Silica Wedge PrismUS$ 19 - 60MOQ: 10 Pieces -
BK7/ UV Fused Silica/Sapphire Glass Wedge Window Quality ChoiceUS$ 10 - 60MOQ: 5 Pieces
-
BK7/ JGS1 Optical Equilateral Dispersing PrismsUS$ 22 - 65MOQ: 5 Pieces
-
Optical Glass Crystal Equilateral Dispersing PrismsUS$ 19.5 - 60MOQ: 10 Pieces
-
BK7/Fused Silica Optical Glass Triangular PrismsUS$ 18 - 65MOQ: 5 Pieces
Place of Origin
Jilin, China
Brand Name
CCRQ
Model Number
optical glass wedge prism
Material
Other, Glass, BK7, K9,Fused Quartz, etc.
Usage
Optical
Structure
Other, prism
Shape
Plano
BK7/K9 optical glass wedge prism, fused silica wedge prism
The wedge prism is a prism with a shallow angle between its input and output surfaces. This angle is usually 3 degrees or less. Refraction at the surfaces causes the prism to deflect light by a fixed angle. When viewing a scene through such a prism, objects will appear to be offset by an amount that varies with their distance from the prism.
.

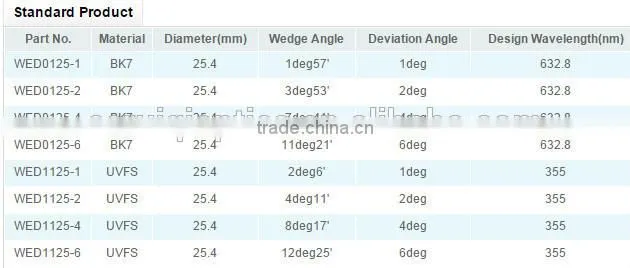

Technical Specifications:
| Material | BK7,Fused Silica,Sapphire,CaF2 as customer request |
| Dimension | 12.7mm 19mm 25mm 38mm 50mm |
| Dimension Tolerance | +/-0.15mm, +/-0.2mm, +0/-0.1mm as request |
| Clear Aperture | >90% |
| Surface Quality | 60/40,40/20 |
| Flatness | lambda/4 per 25nm at 632.8nm |
thickness |
3mm on the thinnest edges |
angle |
±30 arc seconds |
| Deviation Angle | from 1degree to 10 degree |
