Diameter 20mm Thickness 3mm Znse CO2 Laser Protective Window Laser Lens

Diameter 20mm Thickness 3mm Znse CO2 Laser Protective Window Laser Lens photo-1
Diameter 20mm Thickness 3mm Znse CO2 Laser Protective Window Laser Lens photo-2
Diameter 20mm Thickness 3mm Znse CO2 Laser Protective Window Laser Lens photo-3
Diameter 20mm Thickness 3mm Znse CO2 Laser Protective Window Laser Lens photo-4
Diameter 20mm Thickness 3mm Znse CO2 Laser Protective Window Laser Lens photo-5
Diameter 20mm Thickness 3mm Znse CO2 Laser Protective Window Laser Lens photo-6
US$ 5 - 60 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jilin, China
Brand Name:
CCRQ
Model Number:
CCRQ-ZW2
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun Beijing Shenzhen Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jilin, China
Brand Name CCRQ
Model Number CCRQ-ZW2
Material Other, Glass, Znse
Usage Optical
Structure Other, Circular/Square/Wedge/Customized
Shape Plano

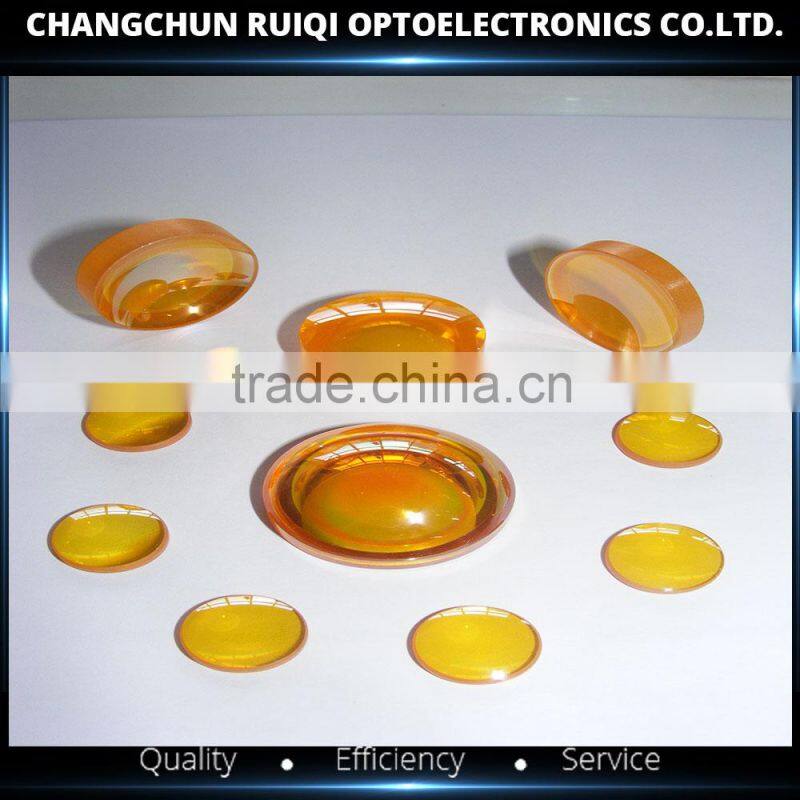

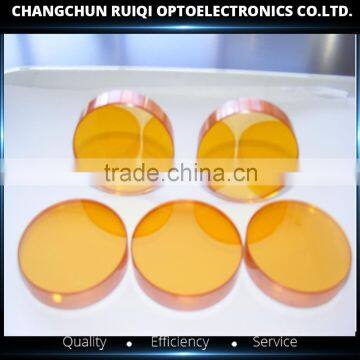

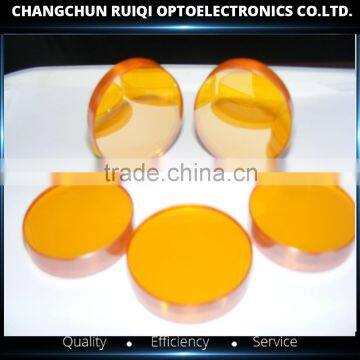

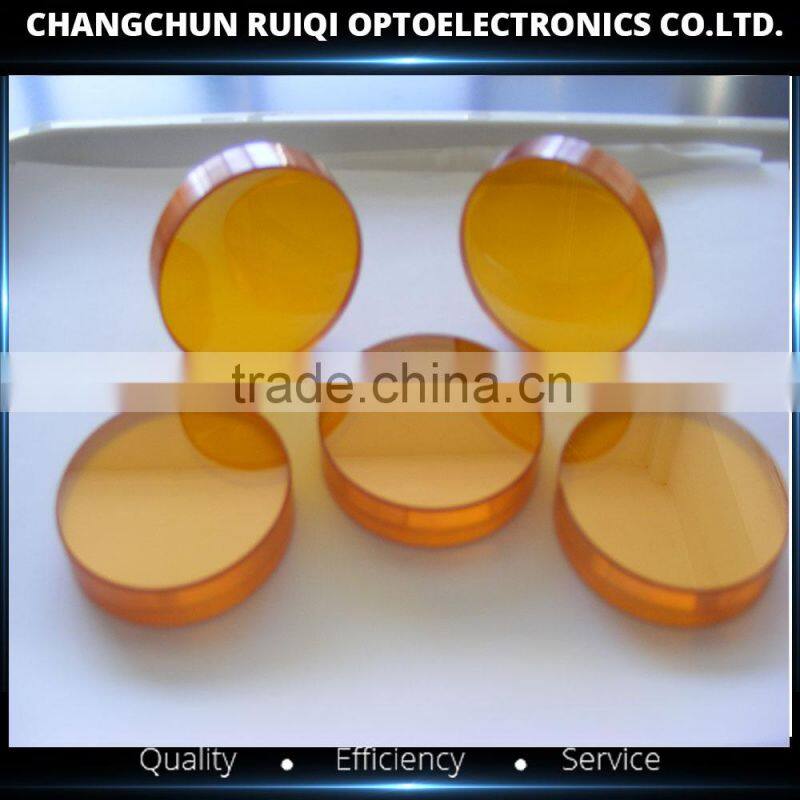

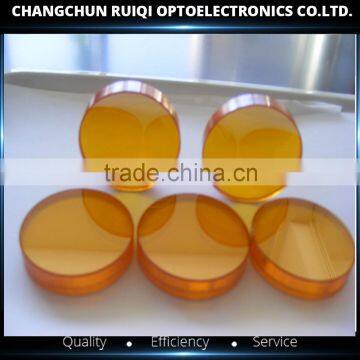

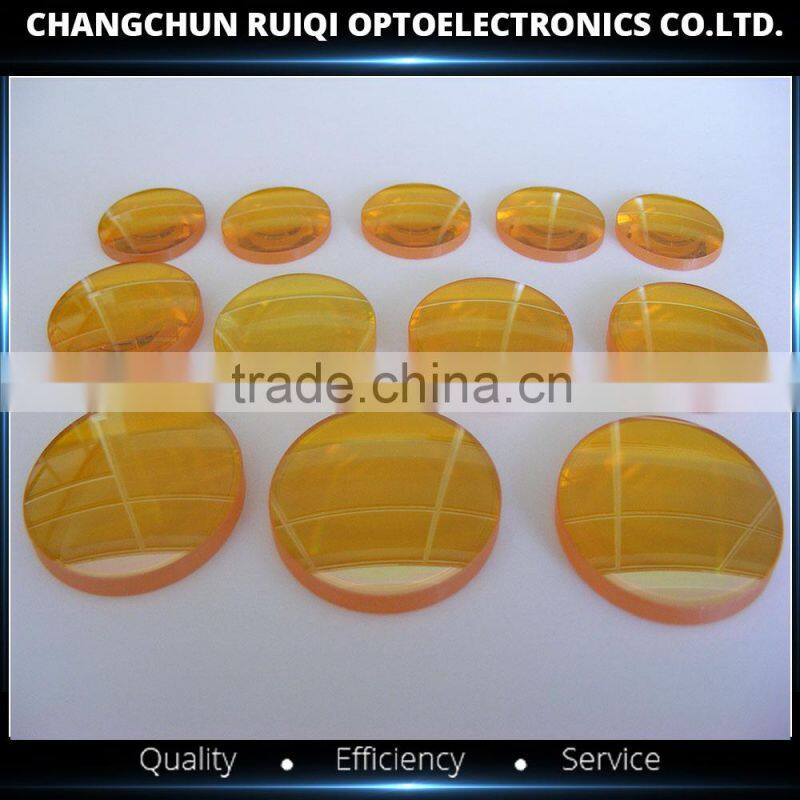

diameter 20mm  thickness 3mm  Znse CO2 laser protective window laser lens



Znse protective window is used to CO2 laser cutting machine,there is twp places to fix protective window, one is outside laser tube, another is below the focus lens to prevent the dirt gas or oil pollute the lens extaend the life span.

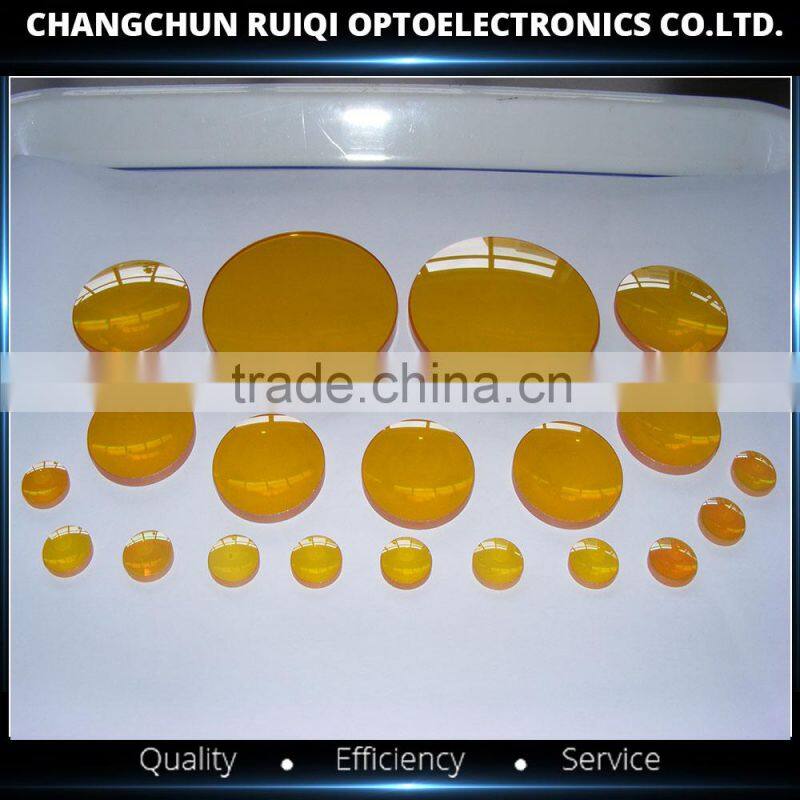

Normally the protective window diameter is a little bigger or the same as laser tube output and focus lens,the common size is 19mm 20mm 25mm 25.4mm ,38.1mm, 50.8mm if you need other size we can OEM for you.



Due to the special usages protective window,it requires the material with high transmissivity low absorption,so CVD znse is the best choise with the all infrared material,with a proper coating. Znse window will make energy small loss and extend the life span of other lens.

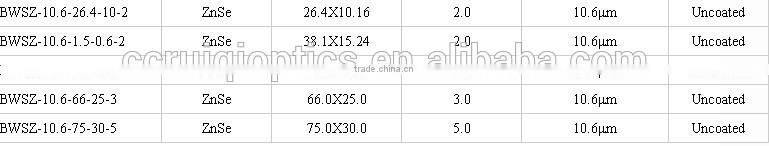

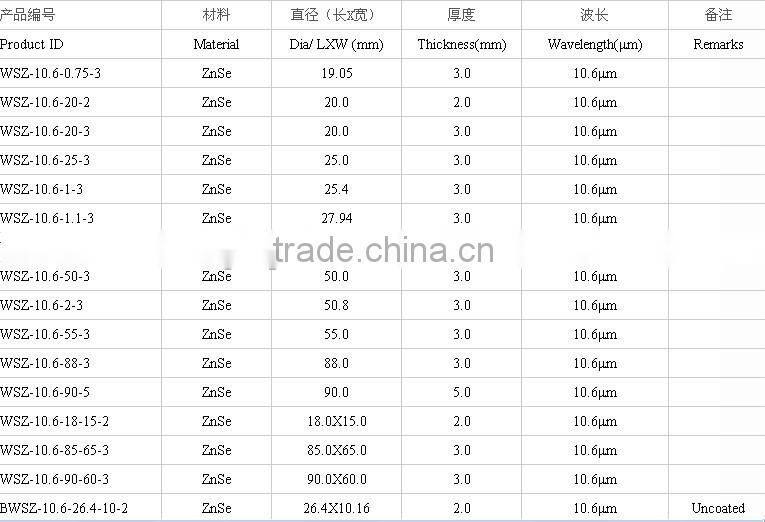

Technical Specifications:



MaterialBK7,Fused Silica,Sapphire,CaF2,BaF2,MgF2,Silicon,Znse,Ge as customer request
Dimension 5-300mm circular or square
Dimension Tolerance+/-0.15mm,  +/-0.2mm,  +0/-0.1mm as request
Parallelism1 arc minute(standard);10 arc second (high precision)
Surface Quality10/5,20/10,60/40,40/20,80/50
Flatnesslambda/4 per 25nm at 632.8nm
TypeCircular.Square,Wedge,Customized
Edge 0.2mm*45degree,others are available upon customer request
CoatingAnti-Reflective (AR) Coatings,Single layer MgF2 coating,Multilayer Broadband AR Coating







 diameter 20mm thickness 3mm Znse CO2 laser protective window laser lensdiameter 20mm thickness 3mm Znse CO2 laser protective window laser lens



diameter 20mm thickness 3mm Znse CO2 laser protective window laser lensdiameter 20mm thickness 3mm Znse CO2 laser protective window laser lensdiameter 20mm thickness 3mm Znse CO2 laser protective window laser lensdiameter 20mm thickness 3mm Znse CO2 laser protective window laser lens
