25mm Diameter, 45 AOI, Hot Mirror
US$ 5 - 40
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jilin, China
Brand Name:
CCRQ
Model Number:
CCRQ-MM5
Payment & Shipping
Payment Methods:
Port of Shipment:
Changchun Beijing Shenzhen Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AOI=45 35mm Square Cold Mirror/Hot MirrorUS$ 5 - 40MOQ: 5 Pieces -
50mm Diameter, 0 AOI, Hot Mirror /Cold MirrorUS$ 5 - 40MOQ: 5 Pieces
-
Mirrors Dielectric Coated Mirrors ,Dielectric Coated Cold MirrorsUS$ 5 - 40MOQ: 10 Pieces
-
Hot&Cold Mirror for CCD-Chips Projectors Lighting SystemsUS$ 5 - 40MOQ: 5 Pieces
-
IR Cut Filter, Infrared Blocking Filter, CCD/COMS FilterUS$ 5 - 45MOQ: 5 Pieces
Place of Origin
Jilin, China
Brand Name
CCRQ
Model Number
CCRQ-MM5
Material
Other, Glass, BK7/k9, Float Glass, Fused Quartz,Ge,Silicon,Znse,etc.
Usage
Optical
Structure
Other, round,rectangular,flat
Shape
Plano

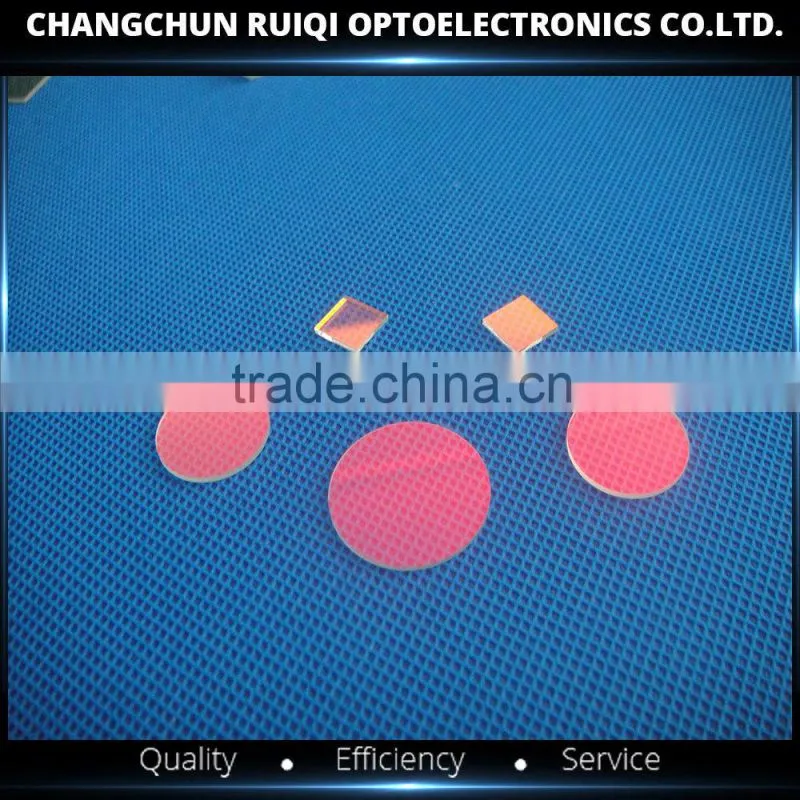

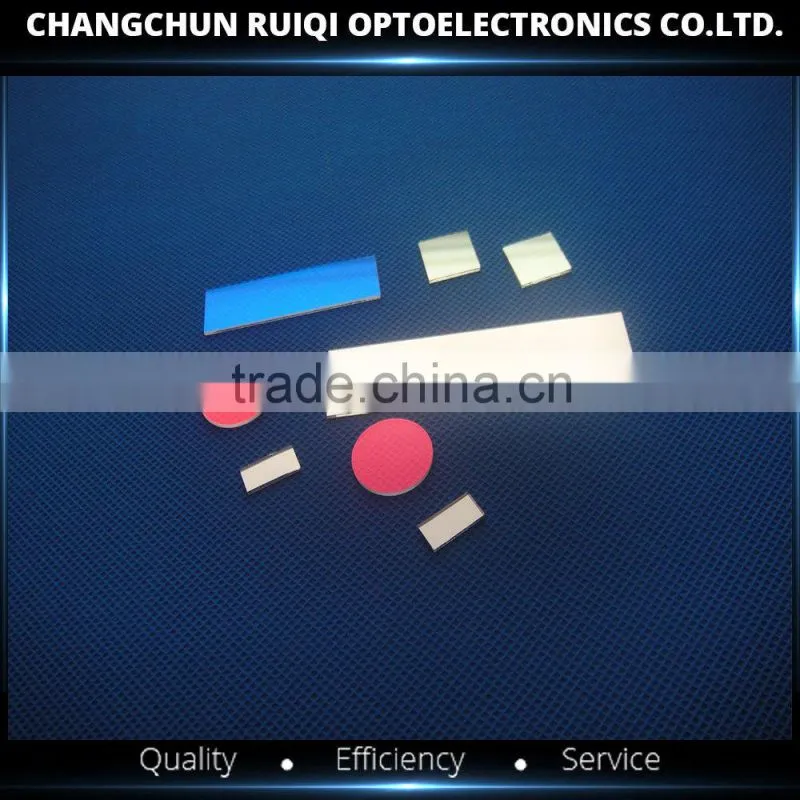

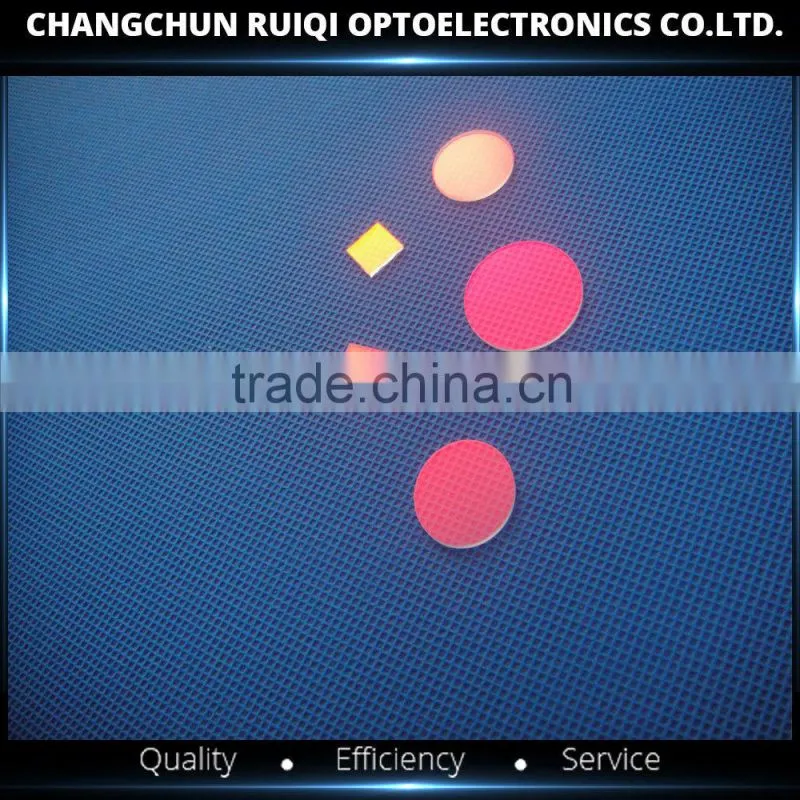

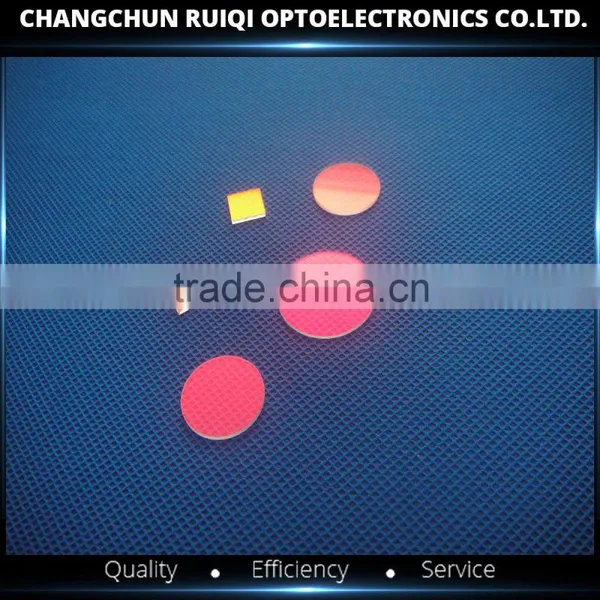

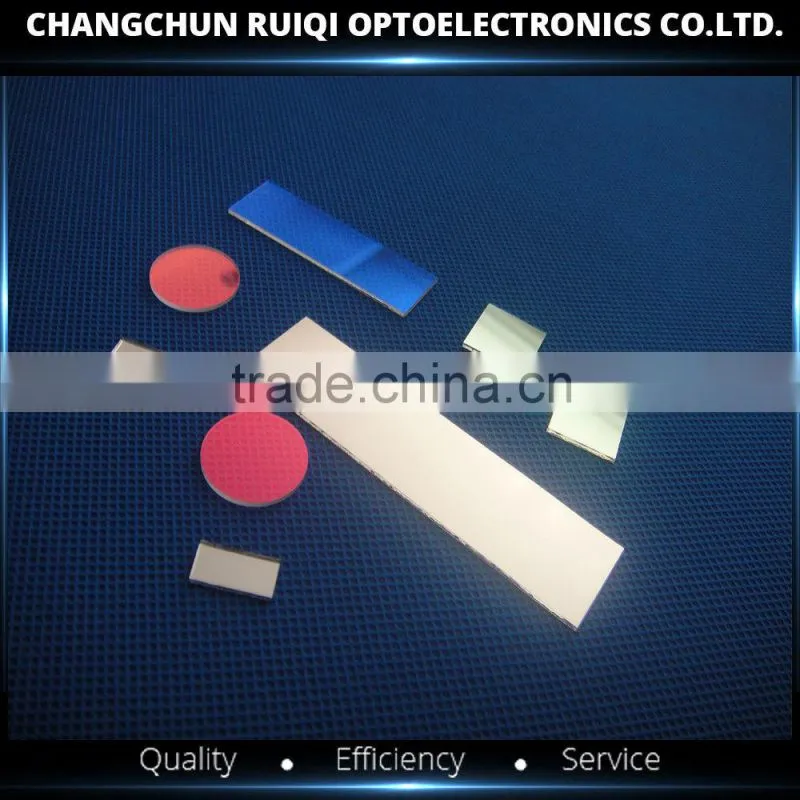

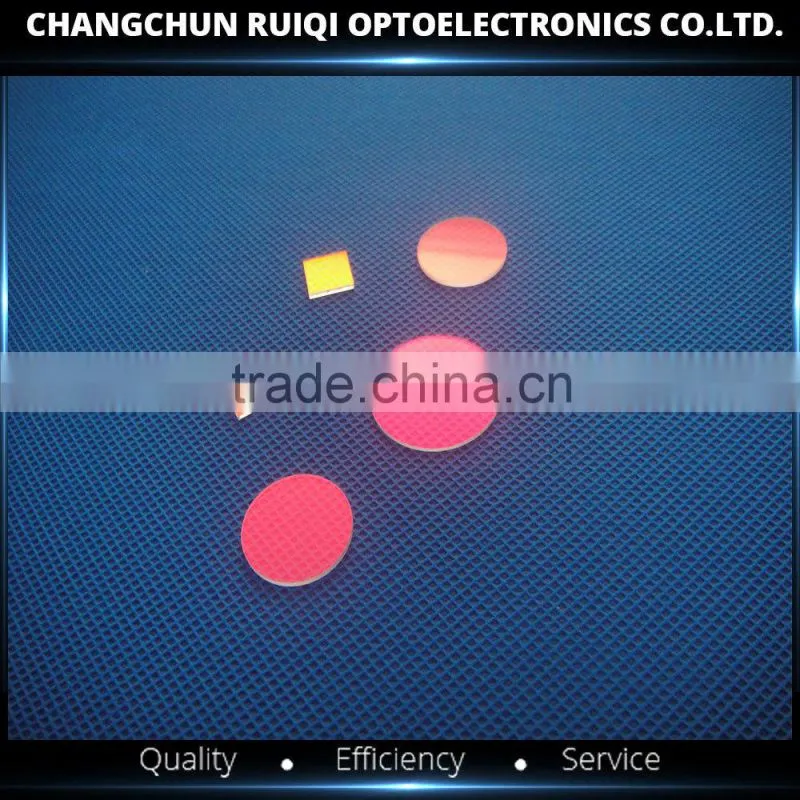

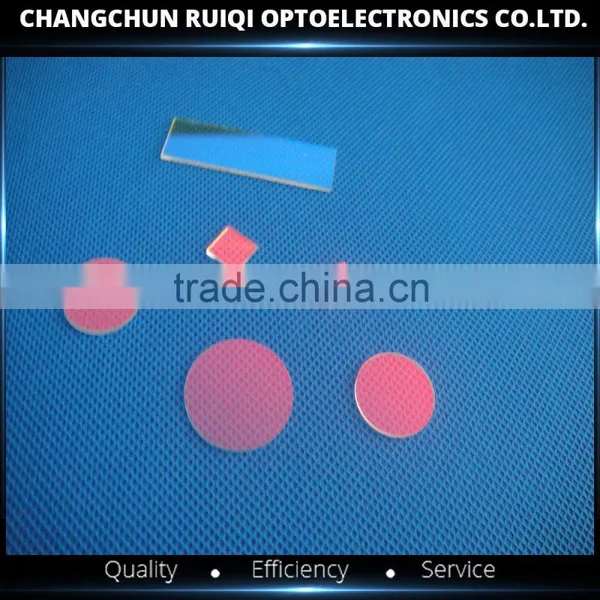

25mm Diameter 45 AOI Hot Mirror
These Hot Mirrors have a 0° and 45° angle of incidence and are ideal for decreasing the undesirable heat caused by infrared radiation. A multi-layer dielectric coating transmits 80% of visible light while reflecting over 90% of the NIR and IR, making them ideal for projection systems where heat build-up can lead to system damage. Made of BOROFLOAT® glass, these hot mirrors can be cut to the desired size for any application.
Note: When using high power illumination, forced air cooling is recommended
- Ideal for Reducing Heat In Projectors
- Reflects 90% of the NIR and IR
- Transmits 80% of Visible Light
| Diameter (mm) | 25.0 |
| Diameter Tolerance (mm) | ±0.25 |
| Thickness (mm) | 3.3 |
| Substrate | BOROFLOAT® |
| Angle of Incidence (°) | 45 |
| Transmission (%) | >85, 425 - 675 nm |
| Reflection (%) | >90, 750 - 1125 nm |
| Surface Accuracy | 4 - 6λ |
| Surface Quality | 80-50 |
| Coating | Hot Mirror, 45° |
| Coating Specification | Surface 1: 45° Hot Mirror Surface 2: None |
| Wavelength Range (nm) | 425 - 1150 |
| Type | Hot Mirror |
| RoHS | Compliant |
